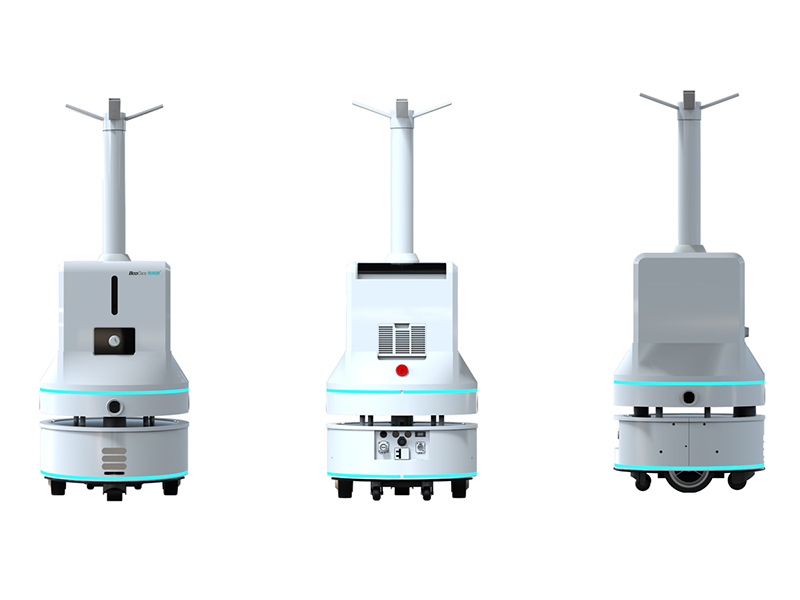

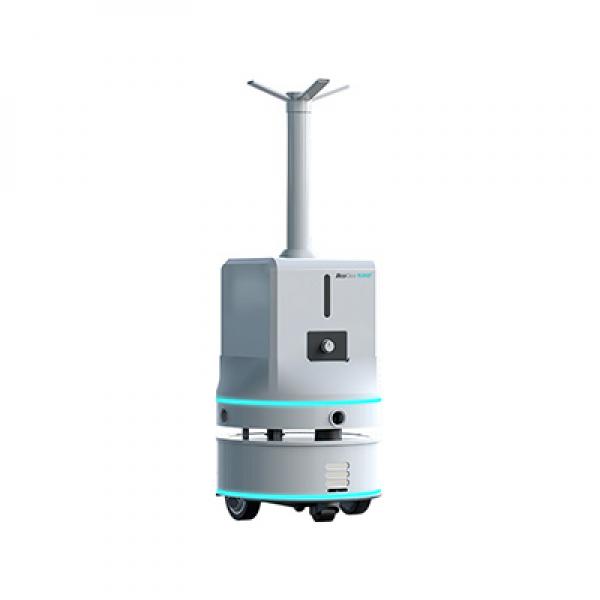

Intelligent obstacle avoidance mobile spray robot

Mobile Spray Robot

Features:
Large-capacity tank 16L, maximum working area 20,000 square meters.
Automatic recharge at low battery, smart and maintenance free.
Intelligent obstacle avoidance, real-time path planning
360-degree coverage accurate spraying.

Details:
Appearance size Diameter 500 mm* height 1,335 mm (standard 500 mm extension pipe)
Body weight 50 Kg (without disinfectant)
Spray volume Maximum 3000 ml/h (adjustable)
Spray rate 2~3 L
Tank volume 16L
Spray diameter ≤ 6 m
Applicable medium Sodium hypochlorite, hydrogen peroxide, peracetic acid, etc.
Spray mode Four-direction nozzle
Filling Open the cover to add liquid
Movement mode Autonomous path planning and auto-navigation
Moving speed 0~0.6 m/s
Driving mode Differential driving
Obstacle surmounting ability ±10 mm
Gradeability ≤8°
Travel lane width ≥700 mm
Noise ≤50dB
Battery life 5~6h
Charging mode Auto-charge
Charging time 3~4h
Safety protection Obstacle avoidance with laser radar, protection from water shortage and power failure
