1605, 1610 or 2005 ballscrew with machined ends and the Nut

1605, 1610 or 2005 ballscrew with machined ends and the Nut

1605_425

1605_525

1605_625

1610_800KF

1610_1200KF

1605_23HS_453

2005_400

2005_500

2005_435

2005_535

Size:: 425L standard ends
Weight:: 0.800Kgs

Size:: 525L standard ends
Weight:: 0.900Kgs

Size:: 625L standard ends
Weight:: 1.000Kgs

Size:: 800L standard ends
Weight:: 1.250Kgs

Size:: 1200L standard ends
Weight:: 2.000Kgs

Size:: 23HS4404-K11
Weight:: 0.800Kgs

Size:: 400L w/ standard ends
Weight:: 1.200Kgs

Size:: 500L w/ standard ends
Weight:: 1.400Kgs

Size:: 435L w/ standard ends
Weight:: 1.400Kgs

Size:: 535L w/ standard ends
Weight:: 1.600Kgs

$18.00

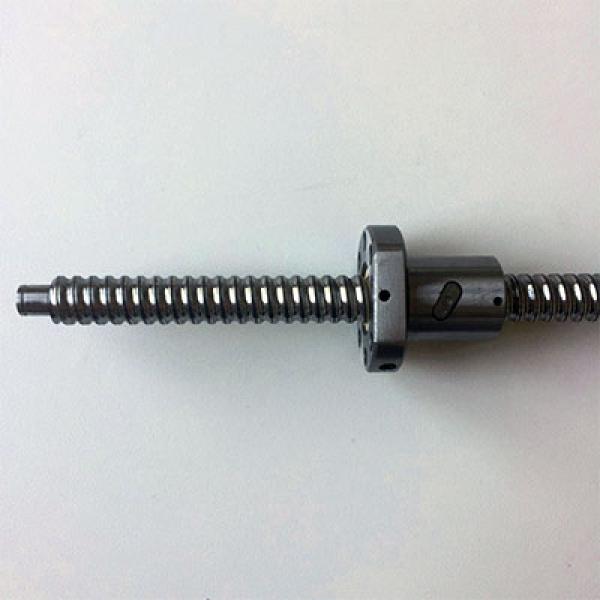

1605 Ball Screw and Anti-backlash Nut

16mm diameter 5mm pitch ball screw
300mm working length 425mm in total, 400mm working length 525mm long
1605_23HS_453 is machined for hollow shaft stepper 23HS4404-K11, working length 350mm

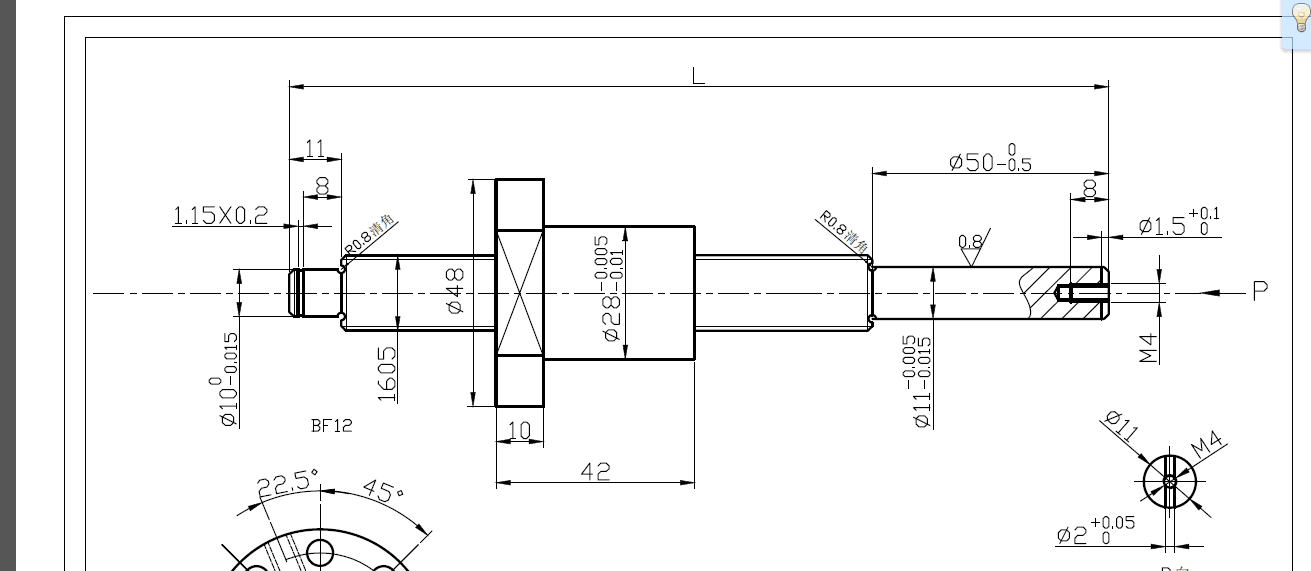

Machined support end for BF12.

BK12 and BF12 standard machined ends. 300W and 400W is ball screw length(425mm, 525mm)-machined ends length(65mm=BF12 11mm+BK12 54mm)-length of anti-backlash nut(42mm)
1605 ball screw
Ball screw linear stepper motor solution
Ballscrew Linear Stepper
NEMA23 Hollow Shaft Stepper for Ball Screw Linear Actuator

Ball Screw Nut for 1605 Ball Screw.
EK12, EF12 machined ends, or other requests can be Customized.

2005 5mm pitch ball screw and nut

2004,2005, 2010, diameter 20mm, pitch 4mm, 5mm and 10mm ball screw with machined ends
Total length 400mm, 500mm with standard machine ends for BK15 and BF15
Working lengths 300mm and 400mm with standard machine ends.
