1204 bespoke ball screw for 17HS5005-K6

1204B391
1204B341
Size:
300_BF10
Weight:
0.300Kgs
Size:
250_BF10
Weight:
0.280Kgs

$16.00

Chat Online

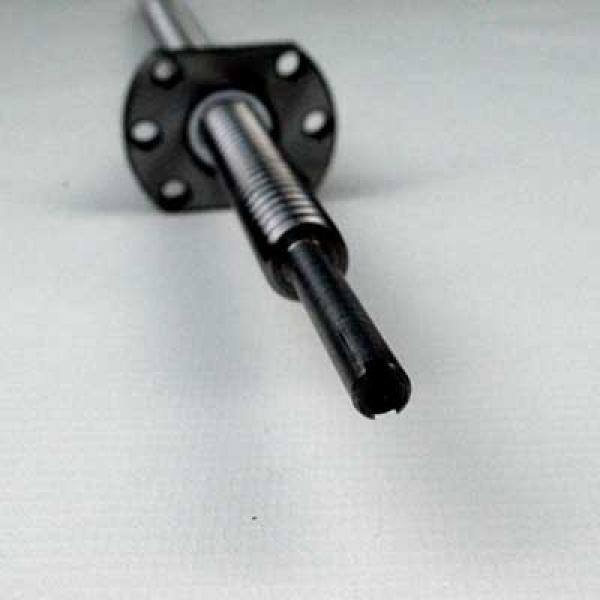

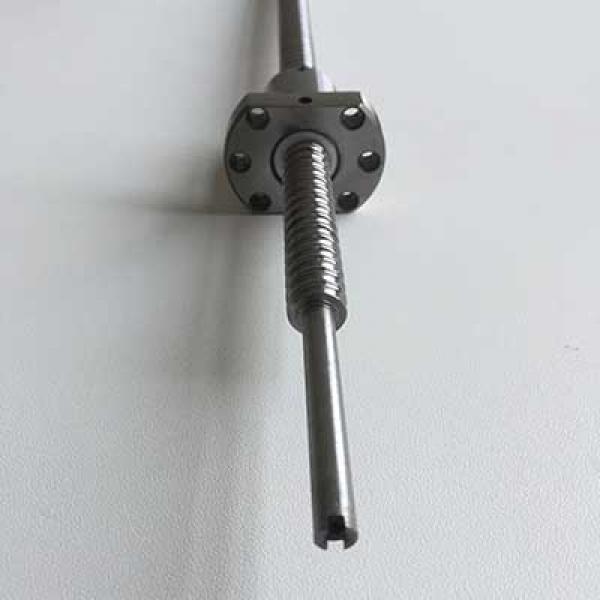

1204 Ball Screw for Nema17 Linear Stepper

Diameter 12mm, 4mm pitch Ball Screw n Nut
250mm working length, Anti-backlash Nut 35mm long and 10mm BF10 machine end,  341.5mm total length
300mm working length, 391.5mm total length Gcr15 Steel
1204 ball screw
One end machined for 17HS5005-K6 Hollow Shaft Stepper and the other end for BF10 support unit.
ball screw linear stepper
How to couple a stepper motor with ball screw?
bespoke ball screw
RobotDigg can Custom machine the ball screw for your application.
