Linear RepRap
Roller bearing stepper motor linear module

Roller bearing stepper motor linear module

LS17L100

LS17L200

R17L100

R17L200

R23L300

R23L400

Size:: 100mm travel lead screw
Color:: Tr8*8
Weight:: 1.500Kgs

Size:: 200mm travel lead screw
Color:: Tr8*8
Weight:: 1.700Kgs

Size:: 100mm travel ball screw
Color:: 1204
Weight:: 1.600Kgs

Size:: 200mm travel ball screw
Color:: 1204
Weight:: 1.800Kgs

Size:: 300mm travel ball screw
Color:: 1204
Weight:: 2.300Kgs

Size:: 400mm travel ball screw
Color:: 1204
Weight:: 2.500Kgs

$36.00

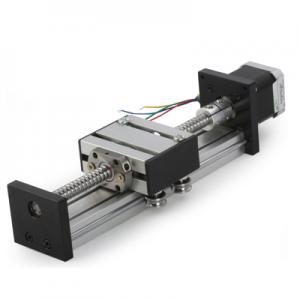

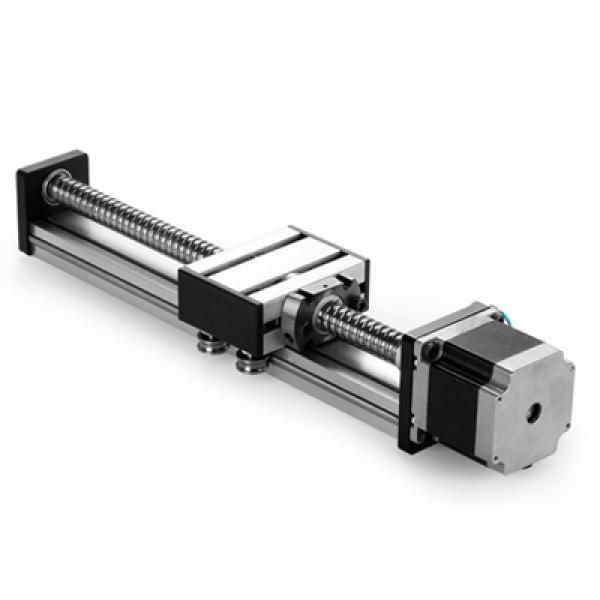

Roller bearing carriage linear module

100mm, 200mm working length with NEMA17 stepper motor
300mm, 400mm with NEMA23 stepper motor
1204 Ball Screw n Nut
Carriage 4 roller bearings
Aluminum extrusion seat, motor mounting plate, ball screw nut, rigid coupling
linear stage

New supply of lead screw drive roller bearing stepper motorized linear module.
There are options of lead screws and ball screws in lengths.
Tr8*1, Tr8*2, Tr8*4, Tr8*8, Tr8*12 lead screws.
1204 12mm diameter and 4mm pitch, 1605 diameter 16mm pitch 5mm, 1610 ball screws.
