100, 200 or 300mm stroke brushed motor linear actuator

100, 200 or 300mm stroke brushed motor linear actuator

XTL100

XTL100-24V

XTL200

XTL200-24V

XTL300

XTL300-24V

XTL400

Size:: 12V_100mm
Weight:: 1.100Kgs

Size:: 24V_100mm
Weight:: 1.100Kgs

Size:: 12V_200mm
Weight:: 1.200Kgs

Size:: 24V_200mm
Weight:: 1.200Kgs

Size:: 12V_300mm
Weight:: 1.400Kgs

Size:: 24V_300mm
Weight:: 1.400Kgs

Size:: 12V_400mm
Weight:: 1.600Kgs

$23.00

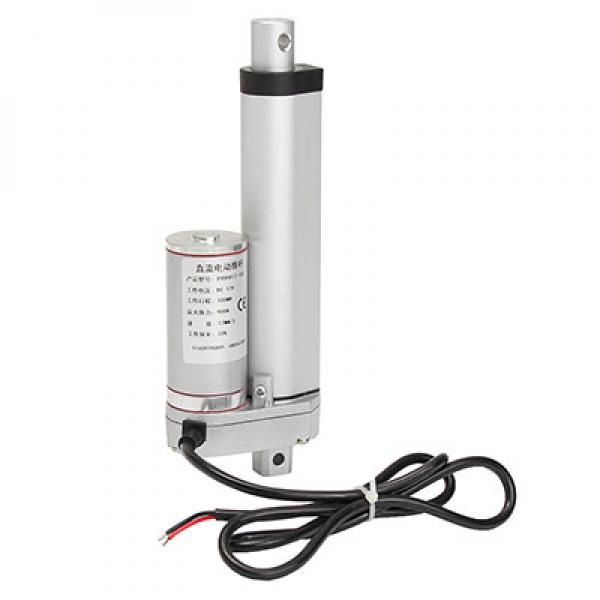

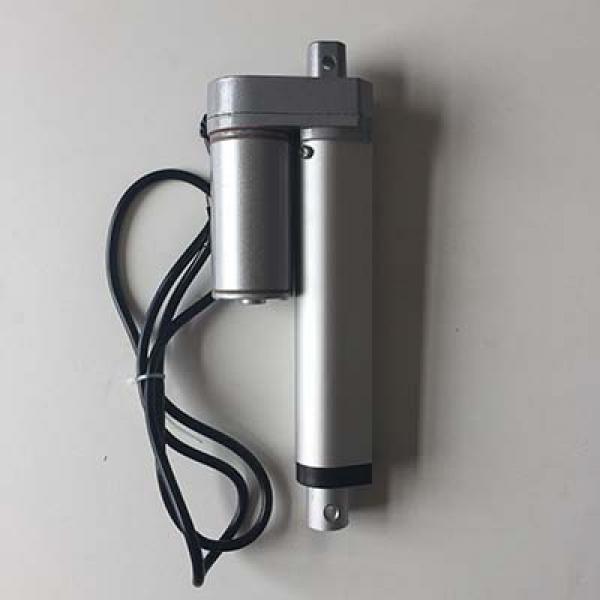

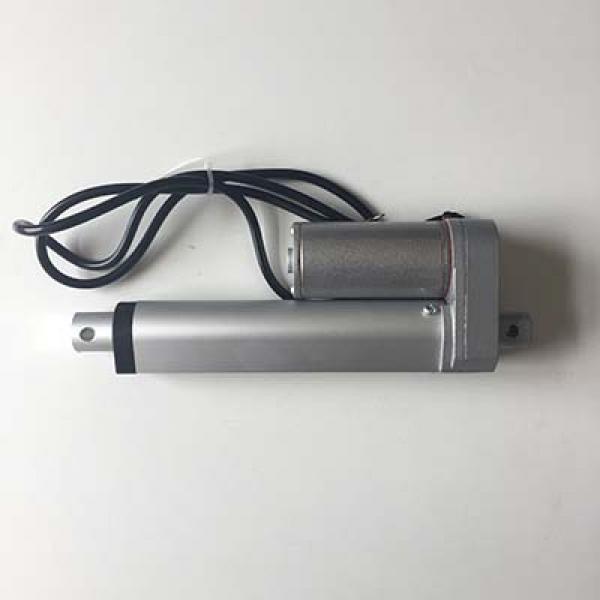

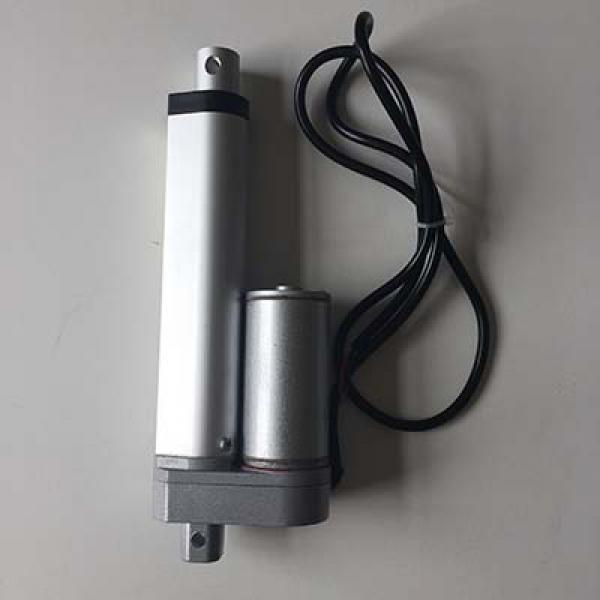

Classic Linear Actuator Stroke 100mm, 200mm or 300mm

The linear actuators are widely used in automatic doors, windows, cupboard, satellite antenna, wheel chairs, hospital beds, TV lift, furniture and other movements.
linear actuator home automation
linear actuator vehicles

Input voltage: 12VDC (24VDC is available on request)
Load capacity: Max 750N (push) Speed: 12mm/s (no load)
Stroke: 100mm(Customized Stroke Available, price is different)
Mounting type: mounting plate for vertical or horizontal
Duty cycle: 10% 2min on 18min off
Limit switches: Built-in, factory preset Operation temperature: -25°C ~ +65°C
Protection class: IP54
Minimum installation distance: ≥100mm stroke+105mm
New arrival: 200mm or 300mm stroke linear actuator
