440C SUS MGN5 linear rail with carriage

440C SUS MGN5 linear rail with carriage

SS_MGN5-25L

SS_MGN5-50L

SS_MGN5-75L

SS_MGN5-100L

SS_MGN5-150L

SS_MGN5-200L

SS_MGN5-40L

Size:: MGN5-1C-25
Weight:: 0.010Kgs

Size:: MGN5-1C-50
Weight:: 0.012Kgs

Size:: MGN5-1C-75
Weight:: 0.015Kgs

Size:: MGN5-1C-100
Weight:: 0.020Kgs

Size:: MGN5-1C-150
Weight:: 0.025Kgs

Size:: MGN5-1C-200
Weight:: 0.035Kgs

Size:: MGN5-1H-40
Weight:: 0.010Kgs

$10.50

MGN5 miniature linear rail and carriage

Miniature linear guide, 5mm wide and pitch 15mm

Hand Tool, Mini 3D Printer, Kickstarter or DIY project choice.
Material: 440C stainless steel miniature narrow linear rail equal to HIWIN MGN5
25mm (1 inch), 50mm (2 inches), 75mm, 100mm, 150mm, 200mm long rail
1 piece of MGN5C standard carriage 16mm long and hole center distance 8mm.

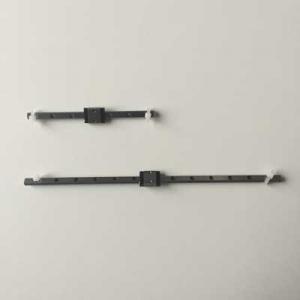

mgn5 linear rail
End to end hole center, long body carriage or two carriages on one rail request, please contact us for quote.

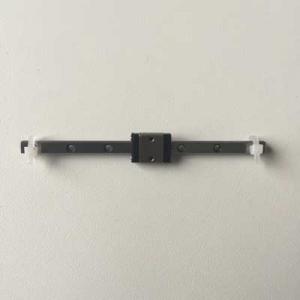

mgn5-1c-25

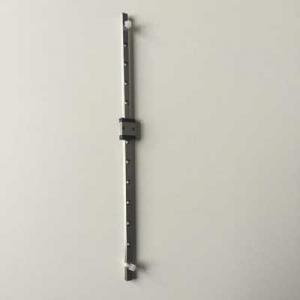

mgn5-1c-100
New arrival: MGN5-1H-40, with long body carriage which is MGN5H 19mm long.
mgn5 carriages
Carriage specification
1. 19mm long 8 horizontal *6 vertial 4 holes
2. 19mm long 8mm distance holes horizontal
3. 16mm long 8mm distance holes horizontal
4. 16mm long 8mm distance holes vertical
