Threaded Rod NEMA17 280mm or 300mm Tr8*8mm Acme Leadscrew

$32.00 $28.00


Chat Online

Threaded Rod Nema17 Stepper Motor

Threaded Rod NEMA17 Stepper body 40mm lenth, 280mm Tr8*8 Leadscrew and POM Nut
Order No.: 17HS3001-280N.PDF

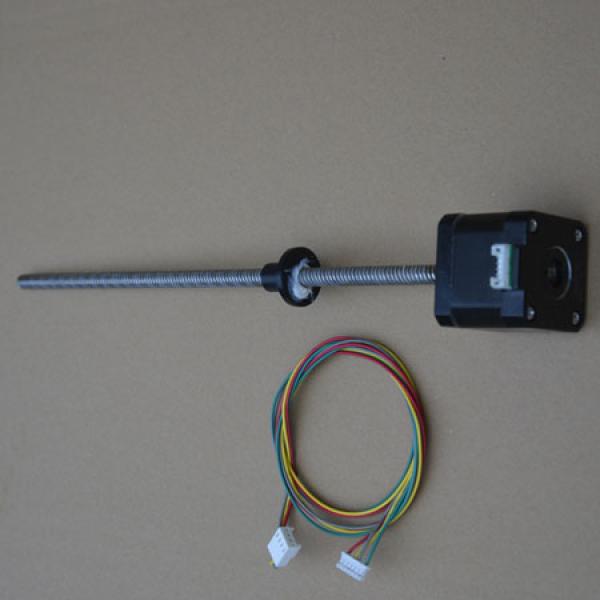

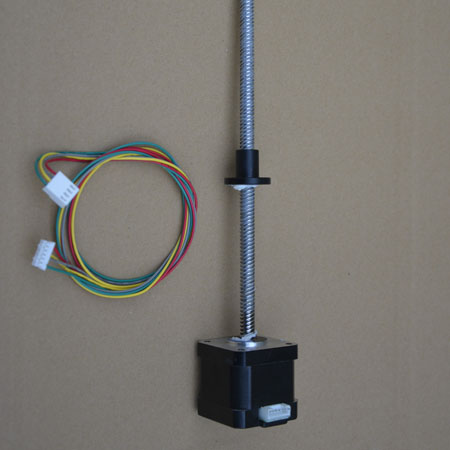

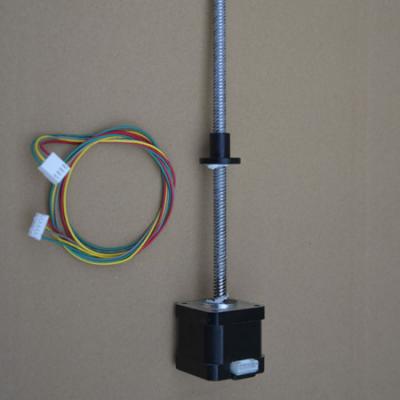

The NEMA17 Threaded Rod Stepper Motor has a precision Acme Tr8*8 Leadscrew coming out directly from the nema17 as a Threaded Shaft. It's a Z axis solution for your 3D Printers.

200 steps per revolution (1.8 deg/step)
2 Phase, Bipolar, 4 wires
Rated Voltage 2V DC
Rated Current 1.2A
Phase Resistance: 1.7 Ohm ± 10% (20º C)
Phase inductance: 4.5 mH ± 20% (1kHz 1 V rms)
Holding torque: 0.4 N.m Min.
Motor body length: 40mm

Acme Lead Screw: 280mm long, Tr8x8(P2)

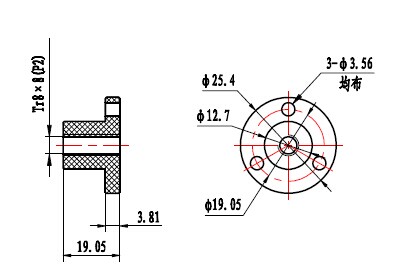

Nut: POM

PCD, the size is same with Haydon Kerk.

We can do the Acme threaded rod/leadscrew customized length for your specific applications. Also you could have other choice of motor length, diameter, pitch and length of the leadscrew/threaded shaft and a Anti-backlash Nut for this NEMA17 threaded rod linear stepper motor.

Do you know?

This threaded rod nema17 stepper is the most recommend product from us for the Z-axis of your 3d printer, as well this is a good choice of Z axis of cnc mill, cnc lathe machines.
