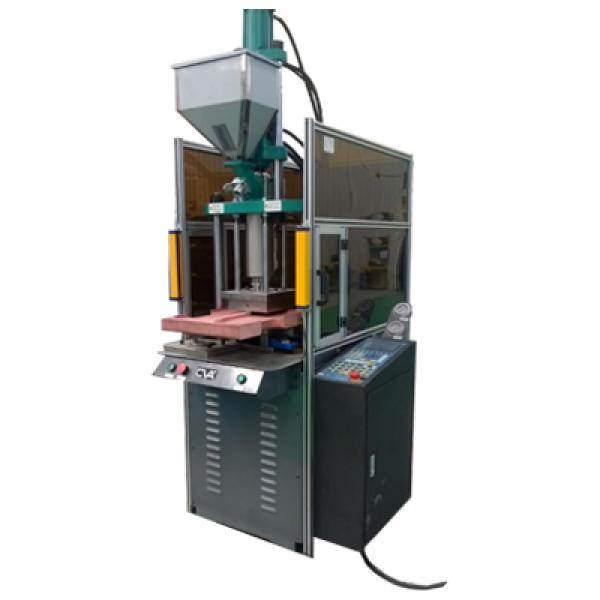

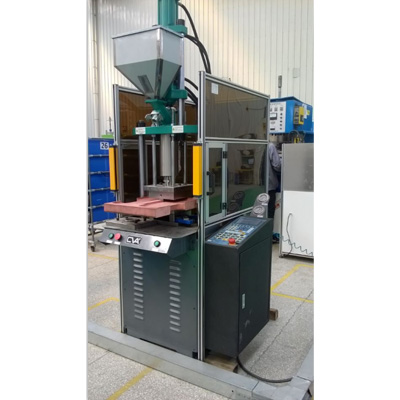

Vertical injection molding machine for sun visor production line
Sunvisor clip roller injection molding job mahine.
(sun visor special machine PP + 30% GF) / CV-200B
|
MODEL |
Unit |
CV-200B |
||||
|
Injection
systems |
Screw Diameter |
mm |
20 |
22 |
25 |
28 |
|
Injection Pressure |
kg/cm2 |
1715 |
1322 |
1098 |
816 |
|
|
Theoretical Shot Volume |
cm3 |
31 |
38 |
49 |
61 |
|
|
(PS) Max Shot Weight (PS) |
g |
29 |
35 |
45 |
56 |
|
|
oz |
1 |
1.2 |
1.5 |
1.9 |
||
|
Injection Rate |
cm3/sec |
20 |
24 |
30 |
38 |
|
|
Screw Stroke |
mm |
100 |
||||
|
Screw Speed Max. |
rpm |
0-215 |
||||
|
Nozzle Contact Force |
tons |
1.5 |
||||
|
Nozzle Retraction Stroke |
mm |
140 |
||||
|
Number of Temperature Control |
- |
2+1 |
||||
|
Material Hopper Capacity |
l |
15 |
||||
|
Clamping Systems |
Clamping Force |
tons |
15 |
|||
|
Opening Force |
tons |
7 |
||||
|
Platen Size |
mm |
430×290 |
||||
|
Distance Between Tie Bare |
mm |
280×140 |
||||
|
Min.Mold Height |
mm |
100/160 |
||||
|
Opening Stroke |
mm |
180 |
||||
|
Max. Open Daylight |
mm |
280/340 |
||||
|
Ejector Force |
tons |
1.3 |
||||
|
Ejector Stroke |
mm |
45/95 |
||||
Rotary System |
Rotary Station |
mm |
260/350 |
|||
|
Max. Mold Weight |
kg |
60 |
||||
|
Station Clearance |
mm |
±0.02 |
||||
|
Oil pressure power system |
Max. Hydraulic Pressure |
kg/cm2 |
140 |
|||
|
Pump Output |
liters/min |
23 |
||||
|
Oil Reservoir Capacity |
liters |
80 |
||||
|
Oil Reservoir Capacity |
liters |
80 |
||||
|
Cooling Water Consumption |
liters/hr |
400-600 |
||||
|
Pump Motor Power |
kw |
2.2/4 |
||||
|
Barrel Heating Power |
kw |
2 |
||||
|
Total Wattage |
kw |
4.2/6.2 |
||||
|
Machine Weight |
tons |
0.55/0.6/0.7 |
||||
|
Machine Dimensions(L×W×H) |
m |
1.4×0.8×2.1 |
||||
|
Shipping Weight |
tons |
0.85/0.9/1.05 |
||||
|
Shipping Measurements(L×W×H) |
m |
1.6×1.0×2.23 |
||||
