Stepper Driver

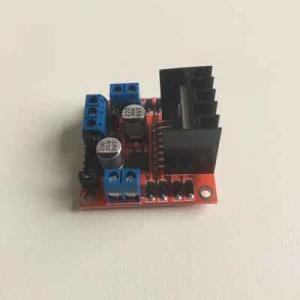

L298 Dual H-Bridge Motor Driver
Operating mode H-bridge driver (Dual)
Master chip L298N
Logic voltage 5V
Driving voltage 5V-35V
Logical current 0mA-36mA
Drive current 2A (MAX single bridge)
storage temperature -20 ℃ to + 135 ℃
Maximum power 25W
weight 30g
External dimensions 43 * 43 * 27mm

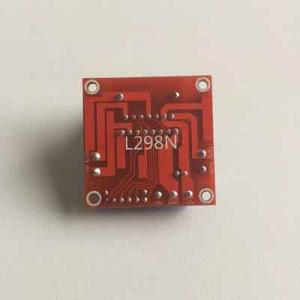

This module uses ST's L298N chip as the main drive, with driving ability, low heat, anti-jamming features.
L298 stepper driver
This module can use the built-in 78M05 to take power by driving the power part of the work, but in order to avoid damage to the regulator chip, when a drive voltage greater than 12V, please use an external 5V logic supply.
This module uses high-capacity filter capacitors, freewheeling diode protection, reliability can be improved.
