BF, FF or EF 0802, 1204 or 1605 Ball Screw support unit

BF, FF or EF 0802, 1204 or 1605 Ball Screw support unit

BF10

BF12

FF6

FF10

FF12

EF08

EF10

EF12

Size:: 8mm
Weight:: 0.280Kgs

Size:: 10mm
Weight:: 0.320Kgs

Size:: 6mm
Weight:: 0.060Kgs

Size:: 8mm
Weight:: 0.080Kgs

Size:: 10mm
Weight:: 0.100Kgs

Size:: 6mm
Weight:: 0.320Kgs

Size:: 8mm
Weight:: 0.350Kgs

Size:: 10mm
Weight:: 0.350Kgs

$4.50

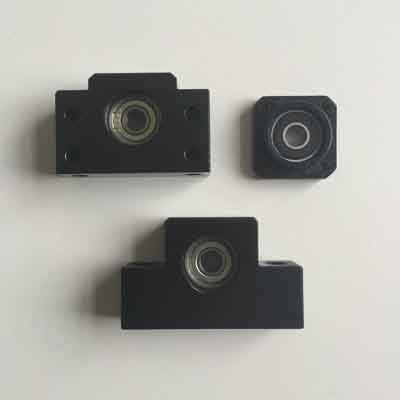

Ball screw support unit for 8mm machined end of 1204 or 1604, 1605, 1610, 2004, 2005 ball screws.

BF10 253 grams, FF10 60 grams or EF10 297 grams which works in pair with BK10, FK10 or EK10
BF12, FF12 and EF12 floated side support unit for 1604, 1605, 1610, 2004, 2005 ball screws.

Float sides BF10, FF10, or EF10 are 8mm inner bore diameter ball bearings. And BF12, FF12, or EF12 is a 10mm ball bearing.
BK, FK, EK support units are usually used in pair with these.
