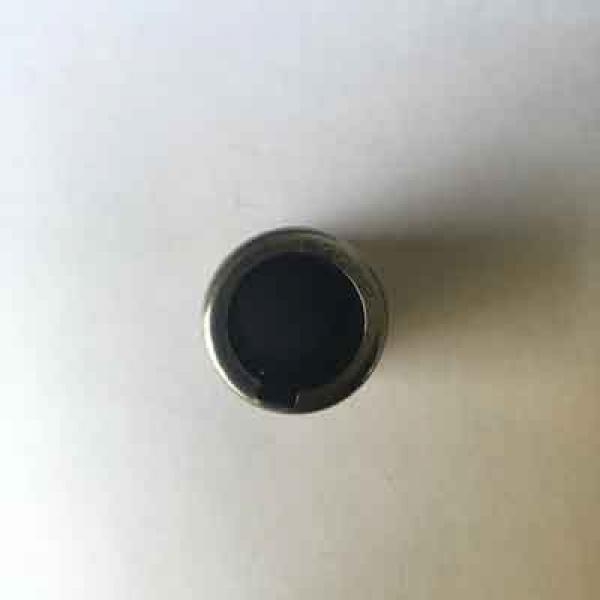

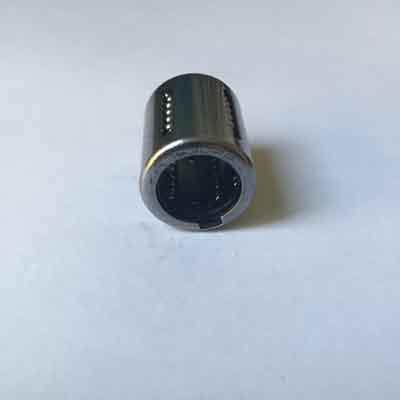

Chat OnlineProduct Model: KH1630-PP
Structure: Linear Ball
Inside Diameter: 16 mm
Outside Diameter: 24 mm
Thickness: 30 mm
Size: 16x24x30mm (dxDxB)
Material: Frame ST14 and bearing Gcr15
Weight: 0.028 KG
KH Linear Bearings are good for heat disspation which is very useful in woodworking machines, etc.
| MODEL NO. | NUMBER OF BALL ROWS | WEIGHT(g) | MAIN DIMENSIONS | BASIC LOAD RATING | |||
| d | D | B | C(kgf) | Co(kgf) | |||
| KH0622PP | 4 | - | 6 | 12 | 22 | 40 | 23 |
| KH0824PP | 4 | 11.3 | 8 | 15 | 24 | 44 | 29 |
| KH1026PP | 4 | 14.4 | 10 | 17 | 26 | 51 | 38 |
| KH1228PP | 5 | 18.1 | 12 | 19 | 28 | 63 | 52 |
| KH1428PP | 5 | 20.6 | 14 | 21 | 28 | 63 | 52 |
| KH1630PP | 5 | 27.2 | 16 | 24 | 30 | 82 | 63 |
| KH2030PP | 6 | 32.7 | 20 | 28 | 30 | 97 | 81 |
| KH2540PP | 6 | 66 | 25 | 35 | 40 | 203 | 170 |
| KH3050PP | 7 | 95 | 30 | 40 | 50 | 286 | 276 |
| KH4060PP | 8 | 180 | 40 | 52 | 60 | 449 | 454 |
| KH5070PP | 9 | 250 | 50 | 62 | 70 | 561 | 643 |
