NEMA17 40mm long 17HS3001-20B /42H40016-20B Stepper Motor



Chat Online

NEMA17 40mm long Reprap Stepper Motor

Order No.: 17HS3001-20B.PDF

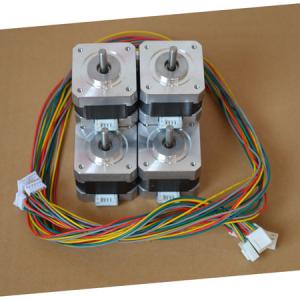

Cable with connectors are included in the price. To all of RobotDigg stepper motors. The connector end to the stepper driver can directly plug to A4988 or A4983.
Reprap Stepper Motor
Flat Shaft or D Cut Shaft
nema17 stepper with flat shaft

17hs3001-20b 0.4N.m single flat shaft RepRap Motor

Monthly production 1,000-2,000pcs for Reprap Projects.

This Nema17 Stepper is what you need for your Reprap, Makerbot and other 3D Printers or CNC or Laser or Plasma cutter kits.
200 steps per revolution (1.8 deg/step)
2 Phase bipolar 4 wires
Rated Voltage 2V DC (It's not working voltage of this stepper. There is No problem to use 12V, 24V or even higher to 36V to drive this motor.)
Rated Current 1.2A
Phase Resistance: 1.7 Ohm ± 10% (20º C)
Phase inductance: 4.5 mH ± 20% (1kHz 1 V rms)
Holding torque: 0.4 N.m Min.
Shaft diameter: 5mm / 0.188" (3/16")
Shaft length: 20mm
Motor depth: 40mm

We usually have these NEMA17 stepper motors in stock. A flat 20mm long Shaft is compatiable with our GT2 pulleys. For orders over 50 or 100 motors please write us for the lead time and price. This NEMA17 40mm Stepper Motor can do all the jobs for your Reprap, Prusa Mendel or any 3d printers. Suitable for X,Y and Z axis. Can work in pairs and has enough torque to run any extruder design with any common filament size.
We offer this motor with a customized 5mm flat shaft and 700mm long lead wires w/ connectors already attached. These will just plug right into your RAMPs 1.4 board.

Do you know?
We sell over 500 of this particular design of NEMA17 stepper motor every month? If you bought a 3D printer kit lately there is a pretty good chance your motors came from us. Did you know we also have a larger MORE POWERFUL 60 millimeter version of this motor for just $5 more? You don't NEED a larger motor for the common 3D printer designs. Our 40 millimeter NEMA17 here is perfect for the job but a larger motor will run cooler and quieter since it has power to spare. However if money is no object and the most important thing is ACCURACY you really should consider our Threaded Rod End Motors paired up with our Anti-Backlash Nut.
