Volume flow rate dc motor or stepper peristaltic pump

Volume flow rate dc motor or stepper peristaltic pump

B52

B52-24V

P40

Pump_PC

Pump_Nylon

Size:: Geared DC Motor
Color:: PC Transparent
Weight:: 0.600Kgs

Size:: 24V Geared DC Motor
Color:: PC Transparent
Weight:: 0.600Kgs

Size:: Stepper Motor
Color:: PC Transparent
Weight:: 0.400Kgs

Size:: without Motor
Color:: Transparent
Weight:: 0.150Kgs

Size:: without Motor
Color:: Black
Weight:: 0.150Kgs

$18.00

Motorized peristaltic pump

◆ flow range: 0-400ml/min (pump tubing: diameter 6.8mm outer diameter of 10mm)
◆ Applicable Tubing: 1.6mm wall thickness tubing, the maximum outer diameter of 10mm, the standard pump tubing: diameter 6.8mm outer diameter of 10mm
◆ pump cover hand twist screws, easy accessibility, quick replacement of pump tubing
◆ first pump tube guide groove, preventing the pump tube deviation cause damage
◆ round frame with ball bearing, silent and long life
◆ Hand tighten the screws are made of stainless steel, rust resistant
◆ 12V DC geared motorized
◆ Housing material: PC
◆ Roller material: pom

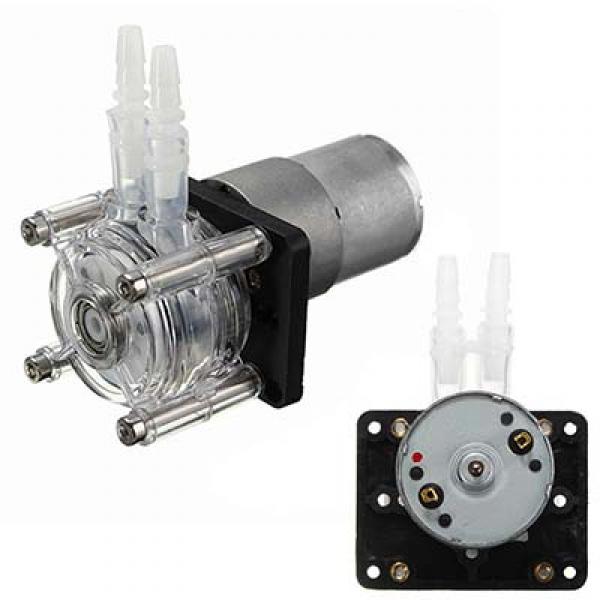

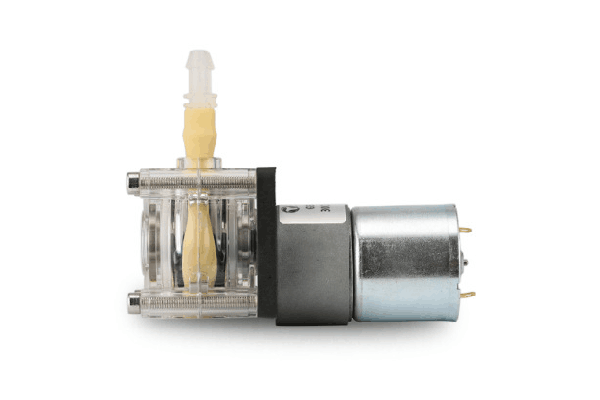

Geared Motor Peristaltic Pump
RobotDigg Peristaltic Pump

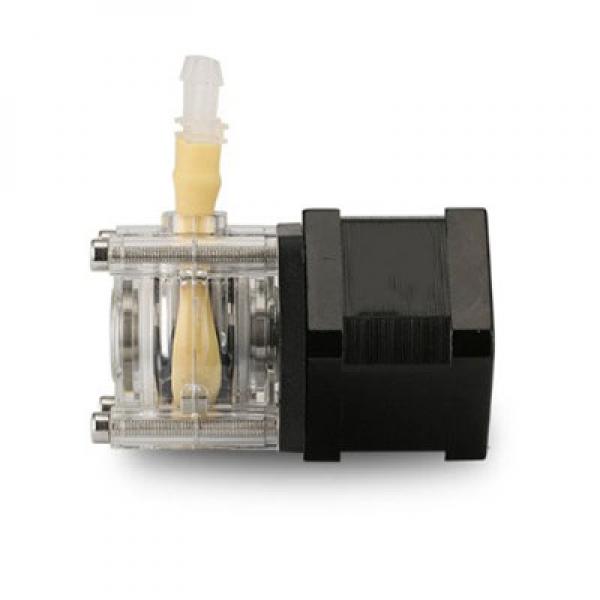

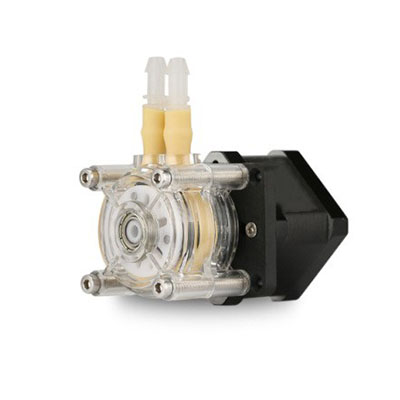

Stepper motorized peristaltic pump
440m.Nm NEMA17 stepper motor
stepper motor pump

The material of the pump head is different from PC to Nylon.
PC is transparent while Nylon is black and better option for strong corrosion medium.

Stepper motorized peristaltic pump with integrated stepper control unit P40-RDG
Potentiometer on board or remote control
Pulse and Direction mode workable
