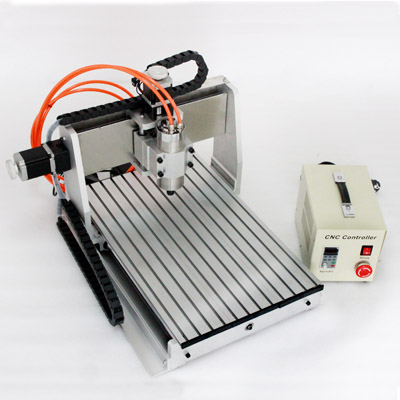

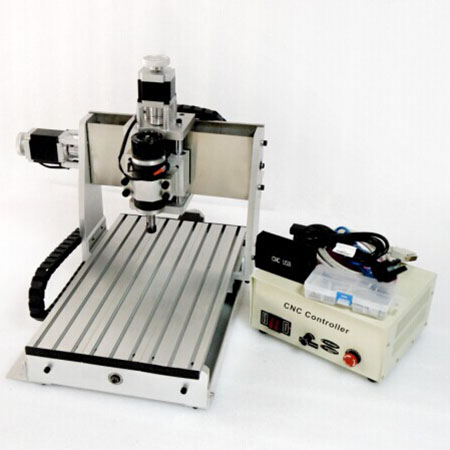

Chat Online3040 cnc engraving machine, 800w spindle motor +1.5kw VFD
Dimensions | |
Depth(Y)[mm] | 680 |
Width(X)[mm] | 520 |
Height(Z)[mm] | 435 |
Total weight [kg] | 30+5 |
Working area | |
X[mm] | 360 |
Y[mm] | 580 |
Z[mm] | ≤90(The Z axis bottom and workbench spacing ) |
Work travel |
|
X[mm] | 300 |
Y[mm] | 400 |
Z[mm] | 85 |
|
|
Water-cooled spindle | |
consumption | AC220V/800W, AC110V is available |
Frequency | 400Hz |
Speed[rpm] | 0~24000 |
Clamping diameter | 6mm，6.35mm，4mm，3.175mm，3mm （Standard configuration 6mm，3.175mm） |
Cooling way | water circulation cooling |
Transmission unit | |
X,Y,Z | Three axis is 1605 ball screw |
Sliding unit | |
X | φ16 |
Y | φ20 |
Z | φ13 |
|
|
Feeding speed[mm/min] | 1000 |
Carving speed[mm/min] | 300~1000 |
Repeat accuracy[mm] | ≤0.03 |
