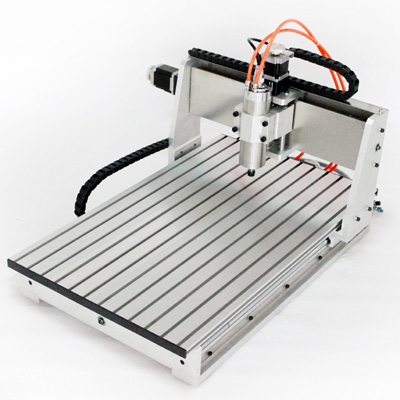

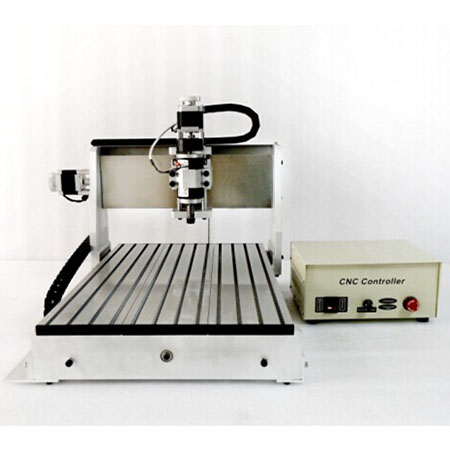

4060 CNC Router

$1299.00

Specification

CNC4060
Chat Online

6040 CNC Router 4 Engraving,Drilling, Milling n Cutting.

Dimensions

Depth(Y)[mm]

900

Width(X)[mm]

690

Height(Z)[mm]

520

Total weight [kg]

58

Working area

X[mm]

480

Y[mm]

840

Z[mm]

≤80(The Z axis bottom and workbench spacing )

Working travel



X[mm]

400

Y[mm]

600

Z[mm]

75





Water-cooled spindle

consumption

AC220V|110V/800W

frequency

400Hz

Speed[rpm]

0~24000

Clamping diameter

6mm,6.35mm,4mm,3.175mm,3mm

(Standard configuration 6mm,3.175mm)

Cooling way

water circulation cooling

Transmission unit

X,Y,Z

Three axis is 1605 ball screw

Sliding unit

X

φ20

Y

φ16 Support rails

Z

φ13





feeding speed[mm/min]

1000

Carving speed[mm/min]

300~1000(Depending on the different material)

repeat accuracy[mm]

≤0.03
