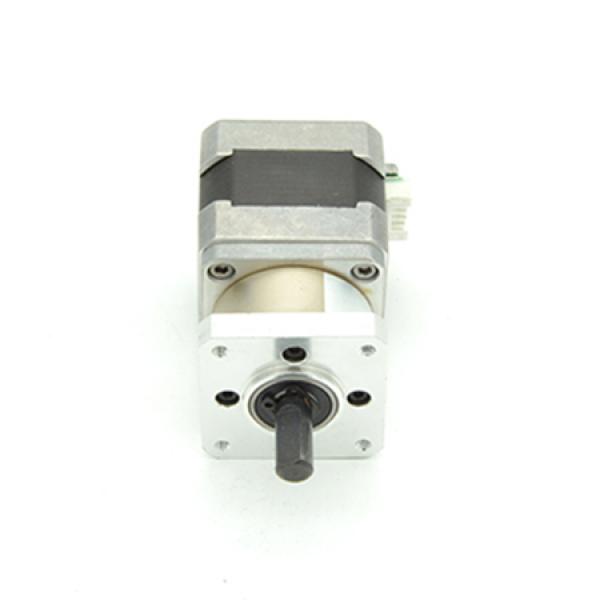

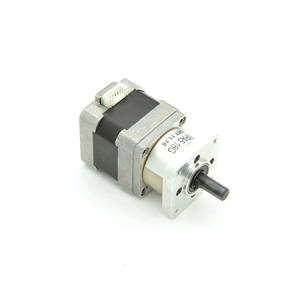

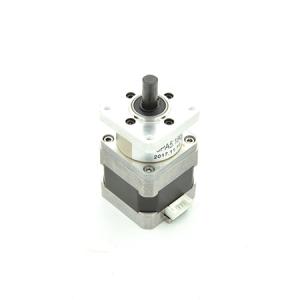

NEMA17 stepper motor with flange face planetary gearhead

17HS3001-CF5X
17HS3001-CF14X
Size:
5:1
Weight:
0.450Kgs
Size:
14:1
Weight:
0.480Kgs

$23.00

Chat Online

Geared Stepper Motor NEMA17

Order No.17HS3001-CF5X.PDF
Nema17 40mm Stepper Motor specification same as 17HS3001-20B

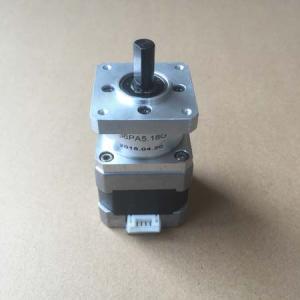

Square flange face planetary gearhead 36PA5.18G
Gear Ratio 5:1 (5.18:1)
Gearhead output diameter: 8mm
Flange Geared Stepper Motor

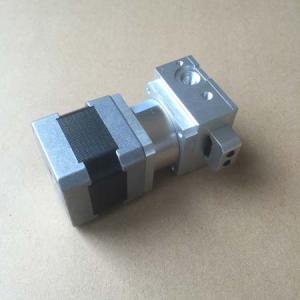

If you need a geared stepper motor for bulldog extruder, this is the perfect option.

Order No. 17HS3001-CF14X.PDF
Nema17 40mm Stepper Motor specification same as 17HS3001-20B
Square flange face planetary gearhead
Ratio near 14:1
Even though you have Mounting Plate for Nema17 Stepper, this geared stepper with mounting plate upfront is not bad.
The flanged gearhead stepper was designed for cleaning robot.
