444mm or 450mm 3M endless belt

444-HTD3M-6
450-HTD3M-6
444-HTD3M-9
450-HTD3M-9
Size:
444-3M-6
Weight:
0.008Kgs
Size:
450-3M-6
Weight:
0.008Kgs
Size:
444-3M-9
Weight:
0.015Kgs
Size:
450-3M-9
Weight:
0.015Kgs

$0.90

Chat Online

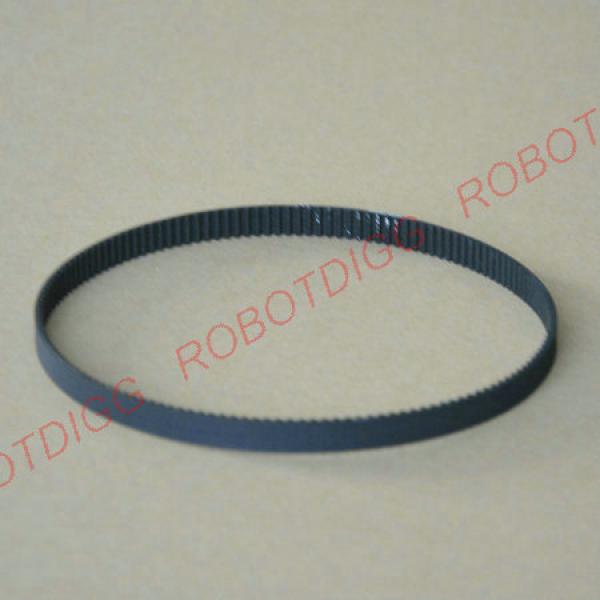

3M or HTD3M endless belt 6mm and 9mm wide
444-3M-6 is 6mm wide 444mm 3mm pitch 3M endless belt
444-3M-9 is 9mm wide 444mm 3mm pitch 3M endless belt
Please choose the right width of 3M belt you need when ordering.

HTD3M Belt, Closed-loop, 444mm length, 148 tooth, 6mm or 9mm wide

Tooth Profile: HTD3M Round Profile
Material: Neoprene Rubber with Fiberglass Reinforced
Color: Black
Pitch: 3mm
Tooth Number: 148
Length: 411mm
Width: 6mm or 9mm
Type: Closed-loop
Quantity: 1 piece

HTD3M Belt, Endless, 450mm length, 150 tooth, 6mm or 9mm wide

Tooth Number: 150
Length: 450mm


HTD 3M Closed-loop Belt Price Ref. List
Length-3M-width Price (USD) Length-3M-width Price (USD) Length-3M-width Price (USD)
120-3M-6 0.35  252-3M-9 0.75  408-3M-9 1.10
126-3M-6 0.35  255-3M-9 0.75  411-3M-9 1.14
129-3M-6 0.35  258-3M-9 0.75  414-3M-9 1.14
135-3M-6 0.35  267-3M-9 0.80  417-3M-9 1.14
138-3M-6 0.35  270-3M-9 0.80  420-3M-9 1.14
141-3M-6 0.35  273-3M-9 0.80  444-3M-9 1.20
144-3M-6 0.35  276-3M-9 0.80  450-3M-9 1.20
147-3M-6 0.35  279-3M-9 0.80  462-3M-9 1.20
150-3M-6 0.35  285-3M-9 0.80  468-3M-9 1.20
153-3M-6 0.40  288-3M-9 0.80  471-3M-9 1.20
156-3M-6 0.40  291-3M-9 0.80  474-3M-9 1.20
159-3M-6 0.40  294-3M-9 0.80  480-3M-9 1.29
162-3M-6 0.40  297-3M-9 0.80  486-3M-9 1.29
165-3M-6 0.40  300-3M-9 0.85  489-3M-9 1.29
168-3M-6 0.40  309-3M-9 0.85  492-3M-9 1.29
171-3M-6 0.40  315-3M-9 0.85  495-3M-9 1.29
174-3M-6 0.40  318-3M-9 0.85  510-3M-9 1.35
177-3M-6 0.40  321-3M-9 2.60  525-3M-9 1.38
180-3M-6 0.45  324-3M-9 0.90  552-3M-9 1.45
183-3M-6 0.45  327-3M-9 0.90  564-3M-9 1.48
186-3M-6 0.45  330-3M-9 0.90  669-3M-9 1.77
189-3M-6 0.45  333-3M-9 0.90  672-3M-9 1.77
192-3M-6 0.45  336-3M-9 0.90  675-3M-9 1.77
195-3M-6 0.45  339-3M-9 0.90  1590-3M-9 3.87
198-3M-6 0.45  342-3M-9 0.95
201-3M-6 0.45  345-3M-9 0.95
204-3M-6 0.50  348-3M-9 0.95
207-3M-6 0.50  351-3M-9 0.95
210-3M-6 0.50  354-3M-9 0.95
213-3M-6 0.50  363-3M-9 1.00
216-3M-6 0.50  366-3M-9 1.00
219-3M-6 0.50  369-3M-9 1.00
222-3M-6 0.50  372-3M-9 1.00
225-3M-6 0.50  375-3M-9 1.00
228-3M-6 0.50  384-3M-9 1.10
231-3M-6 0.50  387-3M-9 1.10
234-3M-6 0.50  390-3M-9 1.10
237-3M-6 0.50  393-3M-9 1.10
240-3M-6 0.55  396-3M-9 1.10
243-3M-6 0.55  399-3M-9 1.10
246-3M-6 0.55  402-3M-9 1.10
249-3M-6 0.55  405-3M-9 1.10
Further more,welcome to write us for quote
