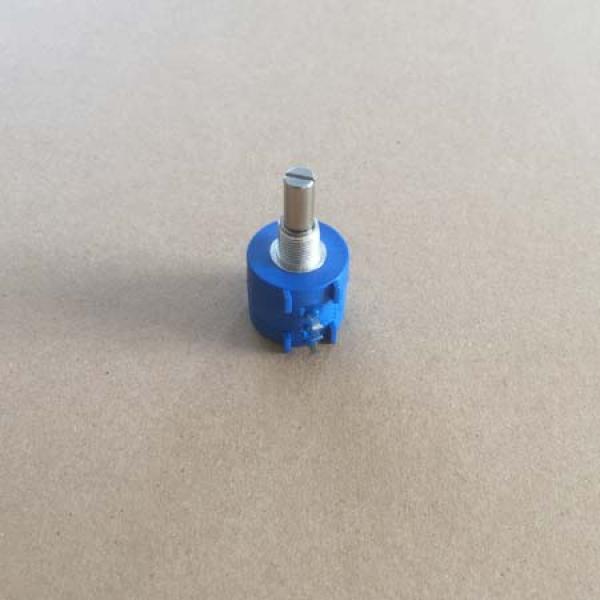

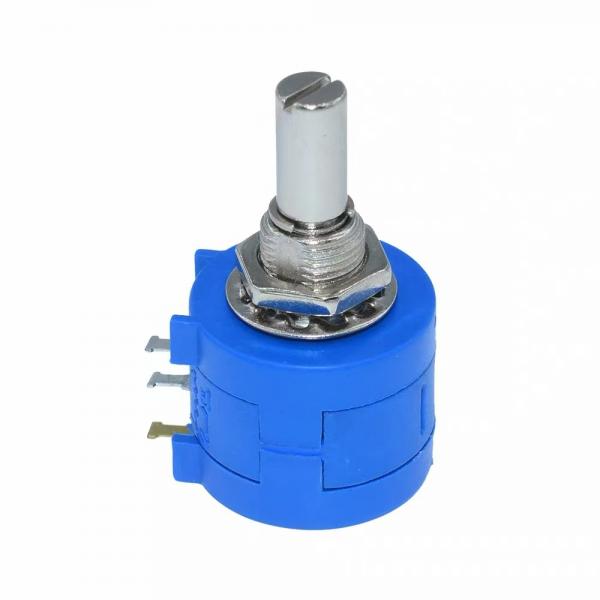

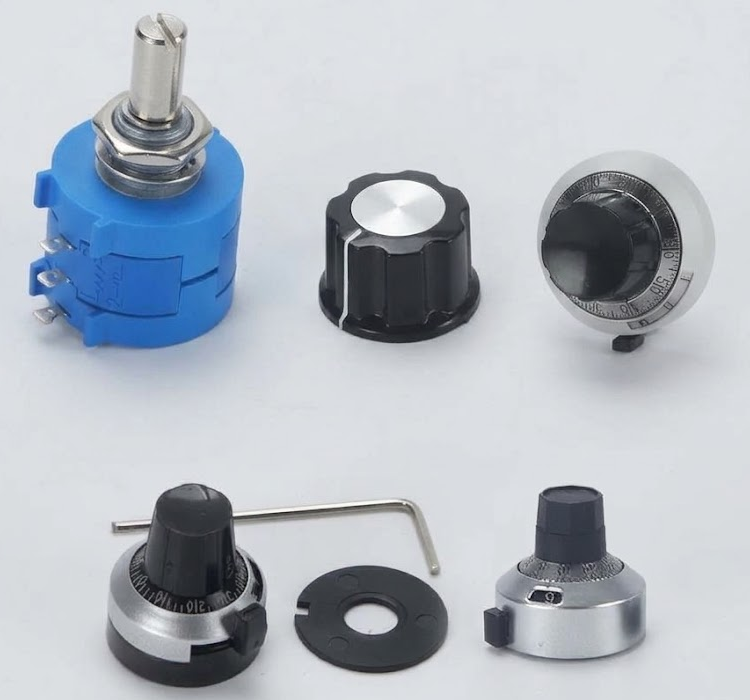

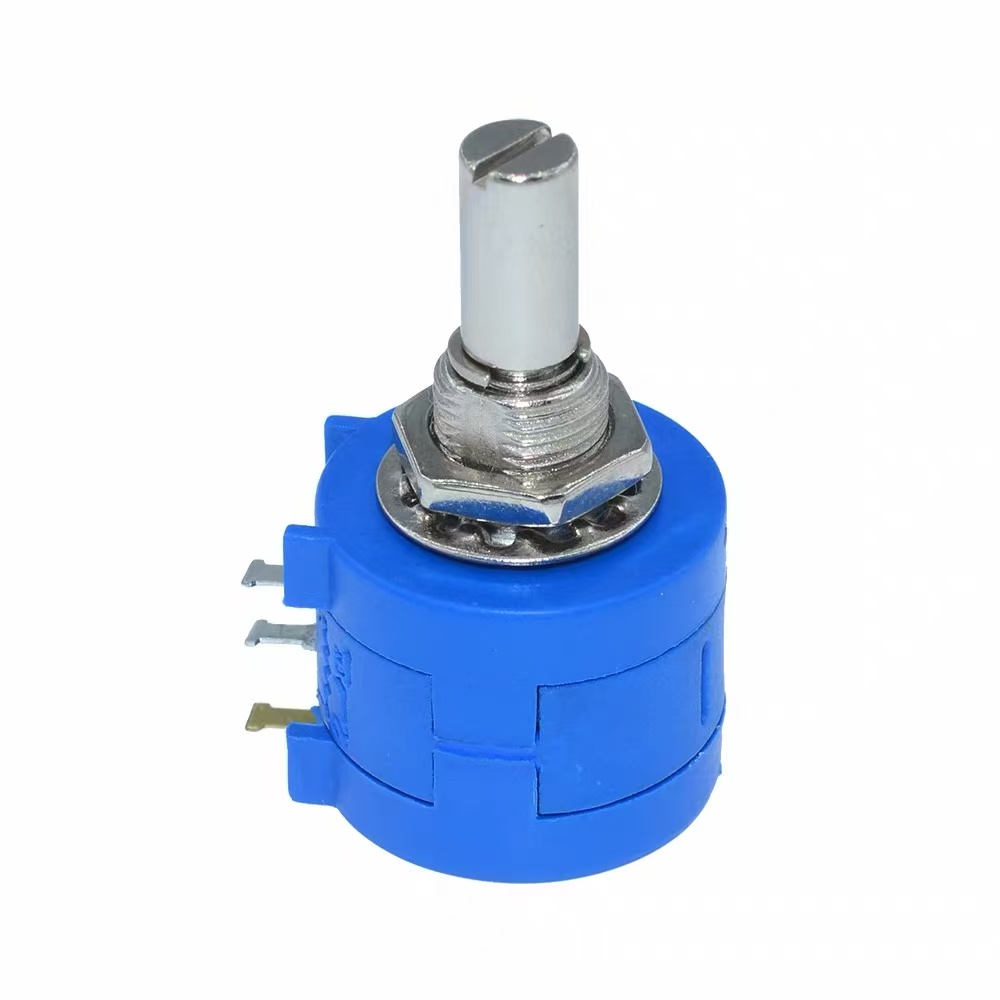

10K Ohm with 10 Turns Counting Dial Rotary Potentiometer

POT10K
Knob
Weight:
0.010Kgs
Weight:
0.010Kgs

$1.80

Chat Online

Model: 3590S-2-103L
Technics: wirewound
Resistance: 10KΩ
Turns: 10turns
Resistance tolerance: ±5%
Independent linearity accuracy: ±0.25%
Power: 2W
Total rotational angle: 3600+10°-0°
Operating temperature range: +1°C - +125°C
Storage temperature: -55°C - +125°C
Rotational life: 1,000,000 RMP
Load life: 1000 hours

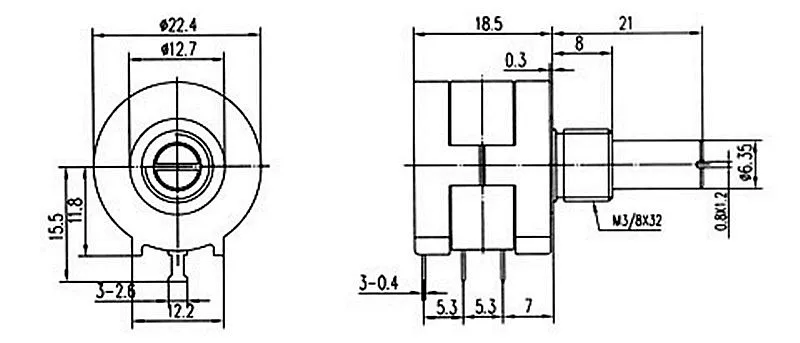

Shaft diameter: 6.35mm
Mounting hole: 10mm

1 x 10KΩ rotary potentiometer pot
2 x Washer
1 x Nut

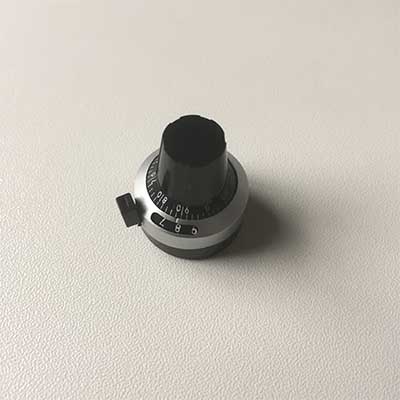

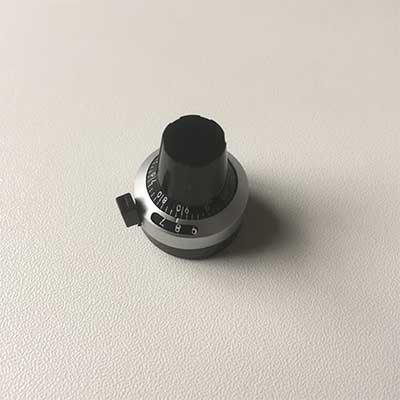

New coming: Knob
