Linear Stepper
Non-captive Nema17 Linear Stepper

Non-captive Nema17 Linear Stepper

NC17HS1070-150T635

NC17HS1070-150T84

NC17HS3001-300T84

NC17HS3001-400T84

Size:: NEMA17_34L
Color:: 150mm Tr6.35*1.5875
Weight:: 0.250Kgs

Size:: NEMA17_34L
Color:: 150mm Tr8*4
Weight:: 0.250Kgs

Size:: NEMA17_40L
Color:: 300mm Tr8*4 Leadscrew
Weight:: 0.400Kgs

Size:: NEMA17_40L
Color:: 400mm Tr8*4 Leadscrew
Weight:: 0.400Kgs

$30.00

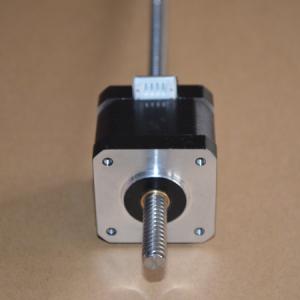

Non-captive Linear Stepper Motor

17HS3001-T84 in stock.
Rated Current: 1.67A
Holding Torque 0.4N.m
Leadscrew: Tr8*4 300mm long.
You may use it in your new design of 3d printers or other desktop machines.
3D printer z-axis innovation wait for your creation.
Non-captive Linear NEMA17 Stepper

RobotDigg can produce you Nema8, Nema11, Nema14, Nema17 and Nema23 Non-captive Linear Stepper Motor Actuators;
Leadscrew diameter from 3.5mm to 11mm;

NEMA17 4 Wires, 1.5A, 34mm depth Precision Hollow Shaft Stepper
Diameter A5.54, A6.35 or Tr8
Resolution: 0.0015mm, 0.0060mm, 0.0243mm, 0.00198mm,0.0039mm,0.0158mm and 0.04mm after microstepping
Tr8*4 lead screw and a 1.8 degree stepper motor 200 steps per revolution, the resolution is 0.02mm
A stepper driver 16th micro-stepping to drive, then the resolution will be 0.00125mm
The leadscrew will move in and out of the nema17 stepper motor.

New arrival: Non-captive 17HS1070150T635 linear stepper motor
NEMA17 34mm stepper motor
150mm long Tr6.35*1.5875 lead screw
Non-captive NEMA17 Linear Stepper
