Nema8 High Torque Stepper Motor

Nema8 High Torque Stepper Motor

8HY001-10

8HY001-20

8HY1002-15

Size:: 30L-10mm_shaft
Weight:: 0.060Kgs

Size:: 30L-20mm_shaft
Weight:: 0.060Kgs

Size:: 38L-15mm_shaft
Weight:: 0.080Kgs

$12.10

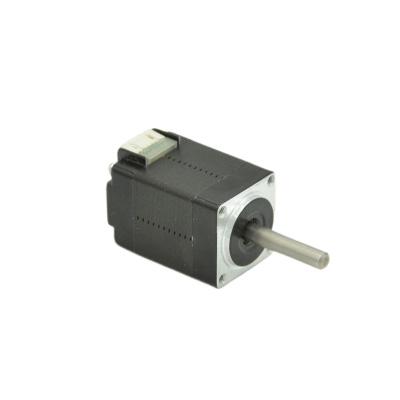

Nema8 (20mm) L30mm High Torque Stepper Motor

Order No. 8HY001-20 File

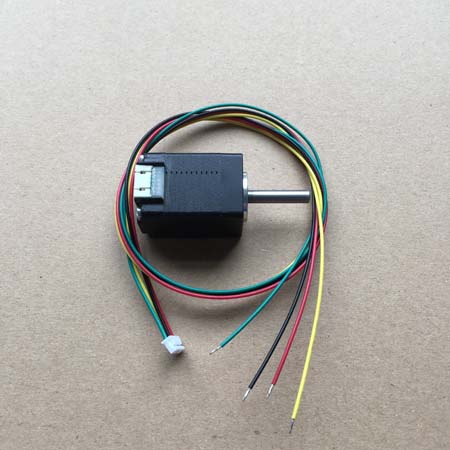

Specifications: Two phase bipolar 4 lead wires, miniature nema8 stepper motor
Holding Torque: 18mNm

Step Angle	1.8 Deg
Rated Current	0.6A per phase
Rated Voltage	3.9V
Inductance per Phase	1.7mH+-20%
Resistance per Phase	6.5 Ohms
Motor Length	30mm
Insulation Resistance	100M Ohm Min. ,500VDC
Dielectric Strength	500VAC for one minute
Shaft	Single round shaft 4mm

New arrival SMNEMA8-2 also 8HY001-10 which is 10mm long motor shaft

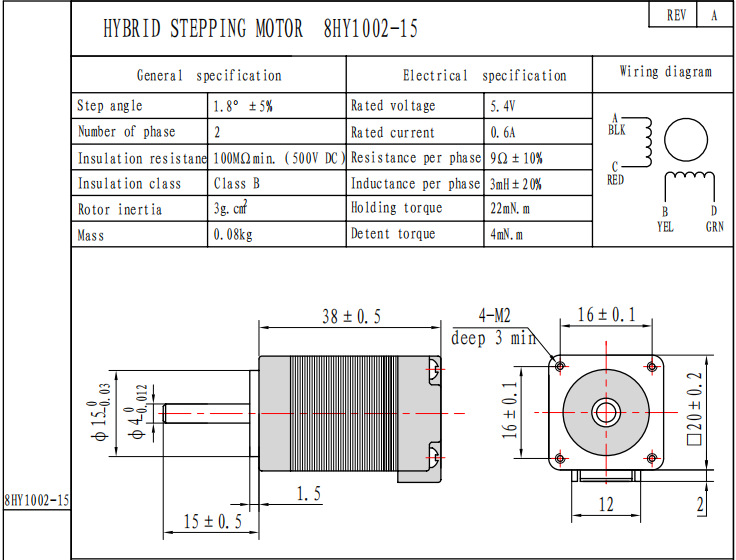

8HY1002-15 38mm long motor body 22mN.m holding torque, motor shaft 15mm.
nema8 stepper motor
