Arduino FOC Brushless Motor Driver Board

Arduino FOC Driver

Compatible with Simple FOC Shield V2.0.4

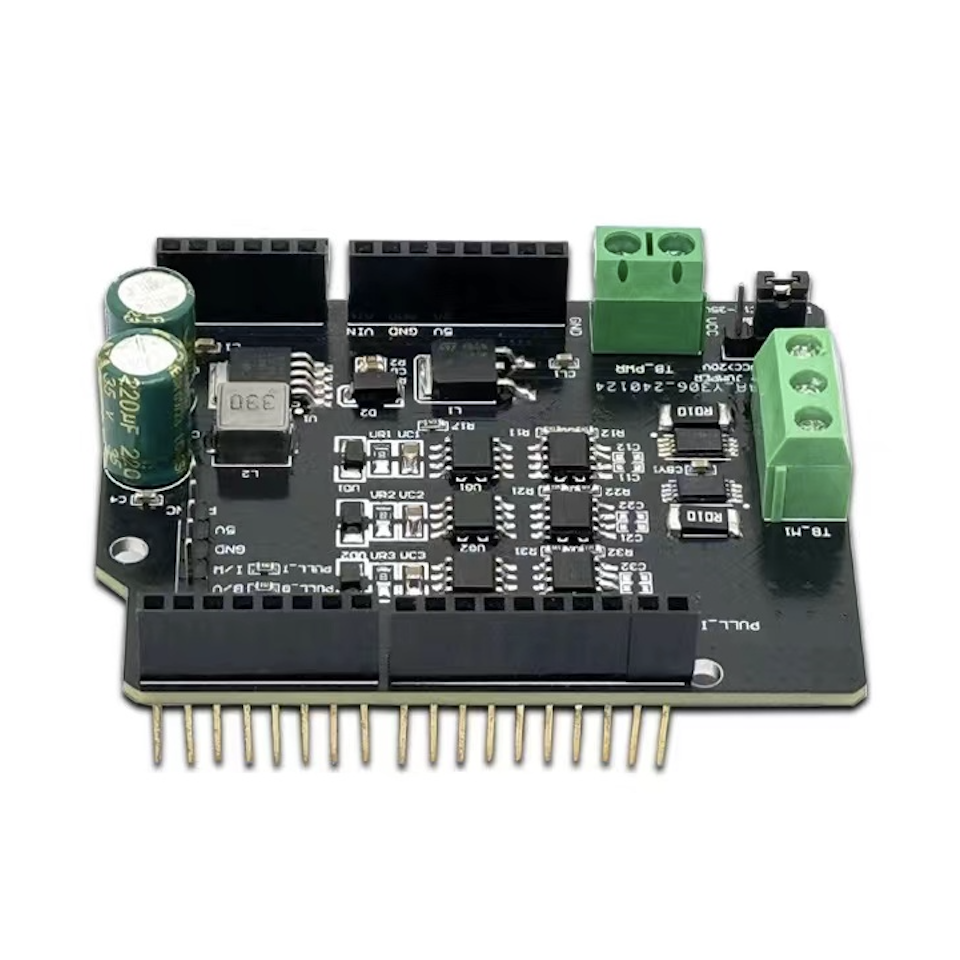

Arduino FOC brushless motor drive board
Use 3 separate high -low side grid drives and 6 NMOS pipes to form a 1 -way BLDC driver circuit. It is compatible with foreign open source project SIMPLE FOC Shield V2.0.4. It can be directly inserted into the Arduino Nano development board as a shiled to use and support multiple types. Sensor interface, users can use the Simple Foc library in the Arduino environment to control the smooth and high -precision operation of the BLDC brushless motor

1. VCC, GND: DC12-35V power supply
2. A, B, C: Brushless motor interface
3. GPIO outlet, can be directly inserted into development boards such as Arduino UNO
4. IR2104 power supply jumper cap: Because IR2104 only supports 20V power supply, so when VCC is less than or equal to 20V, the jumper cap is inserted at the left end, and the power supply voltage of IR2104 is equal to VCC; when VCC is 20V greater than 20V, the jumper cap is inserted at the right end, at this time, the power supply voltage of IR2104 is equal to 16V.
