NEMA17 48mm 2-phase bipolar Stepper Motor

Nema17 48mm Bipolar Stepper Motor

Order No. 17HS5005-20B.PDF

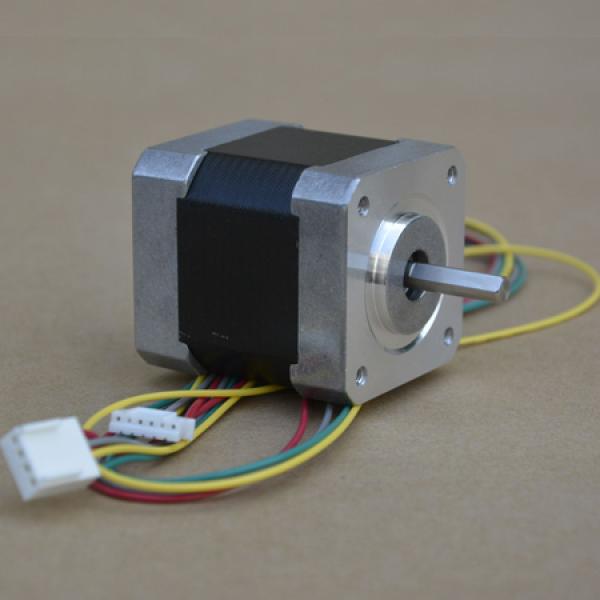

Two phase bipolar 4 lead wire Nema17 48mm stepper motor

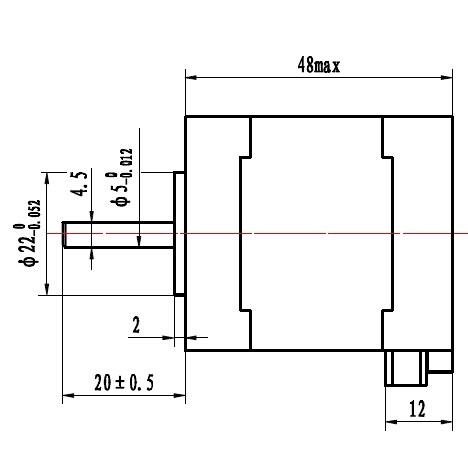

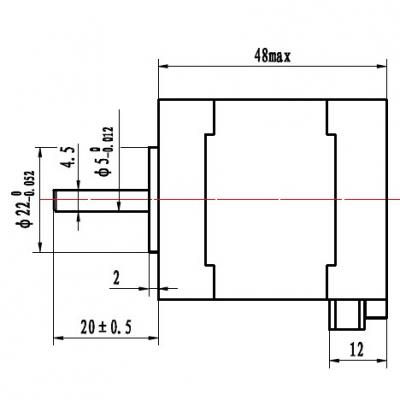

Size: 42mm*42mm*L48mm
Rated Voltage 3.36V
Current per Phase 1.68A
Resistance per Phase 1.65Ω +-10%
Inductance/Phase 3.8 mH
Holding Torque 0.44 Nm (62 oz.in)
Rotor Inertia 82 g-cm²
Weight 0.38 Kg
