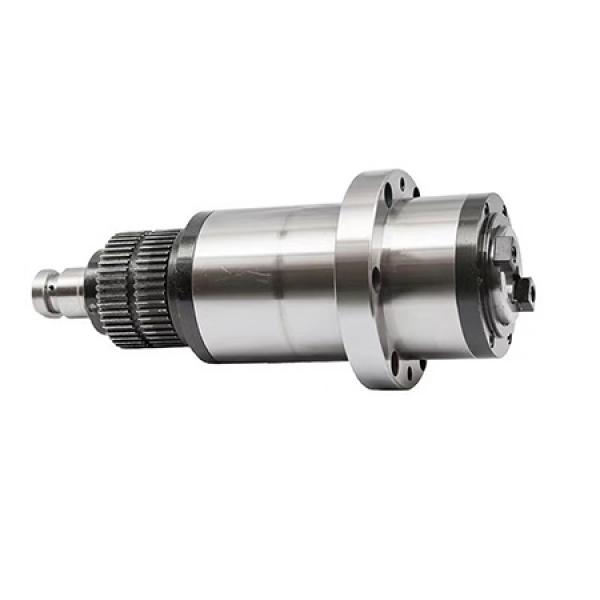

Spindle BT30 80mm with Timing Belt Pulley for CNC Milling

Spindle BT30 80mm with Timing Belt Pulley for CNC Milling

BT30-80D-S6000

BT30-80D-S8000

BT30-80D-S8000_Water

BT30-80D-S12000

BT30-80D-S16000

Size:: 6000RPM D80
Weight:: 6.800Kgs

Size:: 8000RPM D80
Weight:: 6.800Kgs

Size:: 8000RPM D80
Color:: Water hollow shaft
Weight:: 6.900Kgs

Size:: 1200RPM D80
Weight:: 6.900Kgs

Size:: 16000RPM D80
Weight:: 6.900Kgs

$548.00

BT30 Spindle

CNC spindle BT30 with belt pulley HTD5M 36 or 45 teeth for CNC milling

Package includes:
Option A: 1 unit 5 ball bearings 6000rpm spindle
Option B: 1 unit 5 ball bearings 8000rpm spindle
Specifications:
Maximum speed 6000rpm/8000 (rpm)
Max. Temperature <25graus Celsius
Dynamic equilibrium <0.4 (mg)
Maximum noise <78 (dB)
Vibration <0.01 (mm)
Outside diameter: 80 mm
20 30CrMnTi
7008+7006 bearing
Pull Claw 45°
5M 45 teeth Spindle pulley, wideness 40mm

BT30 spindle
