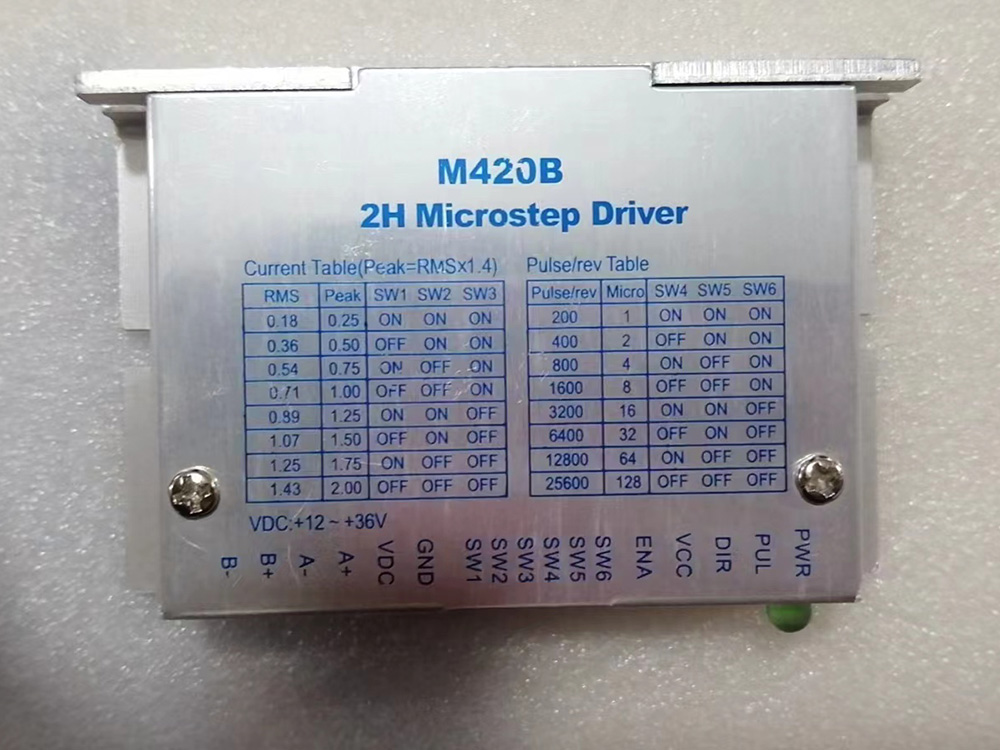

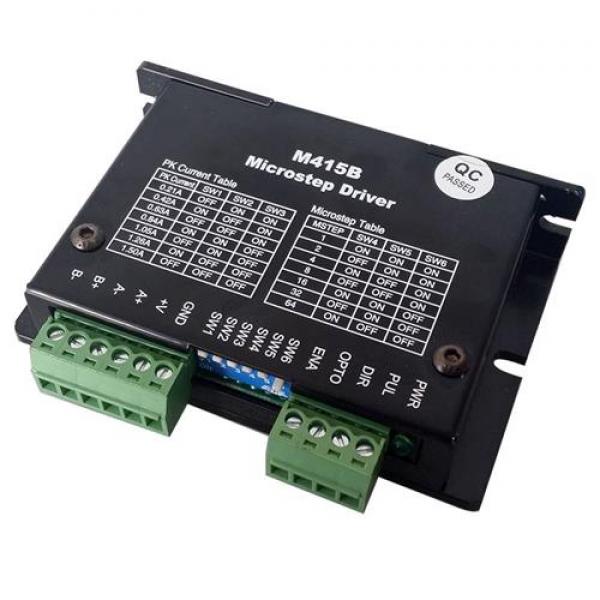

M415B or M420B driver for NEMA8, NEMA11 or NEMA17 stepper motors

M415B or M420B driver for NEMA8 or NEMA11 stepper motor

Current setting suitable for NEMA8, NEMA11, NEMA14 stepper motors

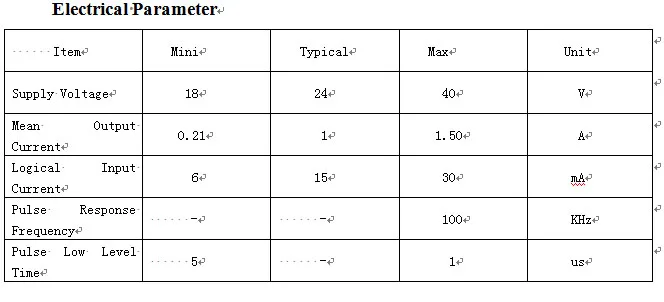

Supply voltage: 18~36VDC
Drive current: 0.21~1.5A
Automatic idle current reduction function
The highest dynamic 24 subdivision
Photoelectric isolation signal input
Bipolar constant current chopper mode
Highest chopper frequency 100KHz
Exquisite shape, easy to install

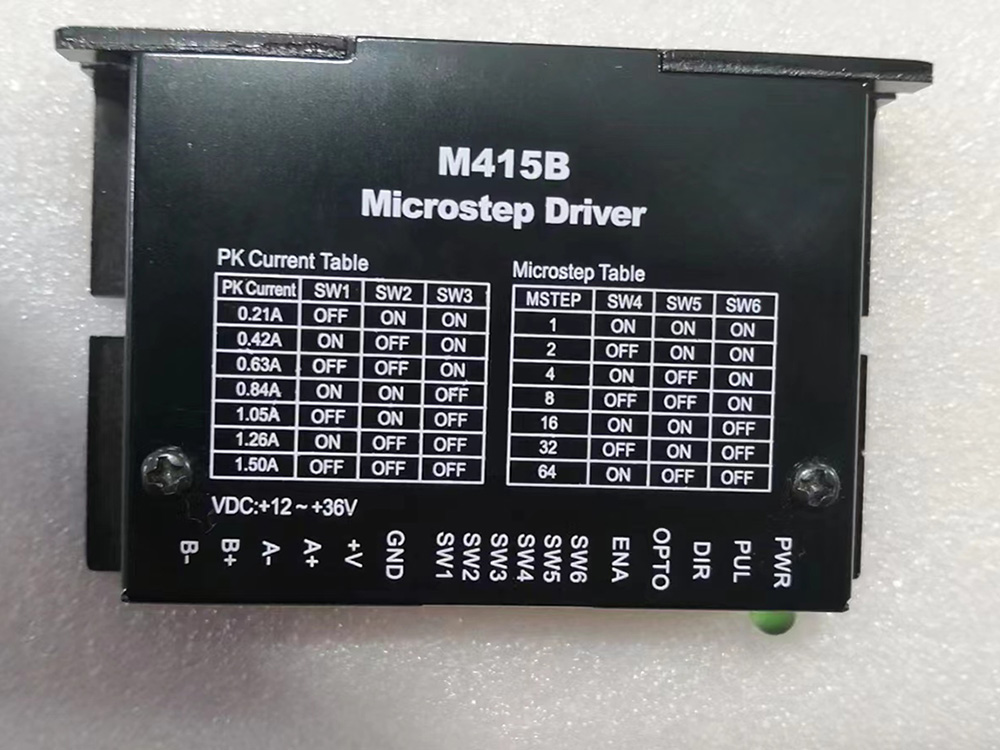

Current setting and subdivision setting

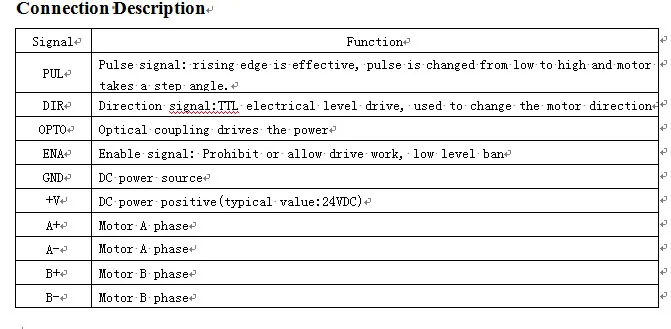

Connection description


Stepper driver suitable for NEMA11, NEMA14 and NEMA17 stepper motors
