Automatic wire stripping cable peeling cutting machine SWT508 Cable Stripper Cutter

Cable Stripper Cutter for terminal or tin plating

0.1-70mm2 Automatic Wire Stripping Peeling Cutting Machine SWT508MAX SWT508E SWT508SD SWT508C Cable Cutter Stripper 220V 110V

P.S: The protective cover is not included. if you need. please contact the seller.

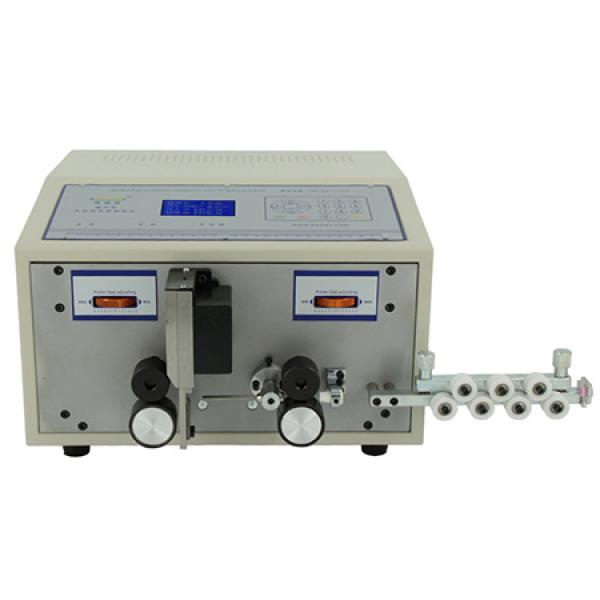

1. Model: SWT508C
2. Voltage: AC 110V/220V/50/60 Hz
3. Dimensions: 390x350x255
4. Display mode: LCD display in Chinese and English interface
5. Weight: 26(KG)
6. Power: 160(W)
8. Cutting tolerance: (0.2±0.002×L)mm
9. Cutting tolerance: correction
10. Stripping length: head 0-35mm, end 0-15mm
11. Intermediate stripping: eleven-place strip
12. Wire cross-section: 0.1～2.5mm2
13. Maximum diameter of tube: ￠6
14. Suitable wire stripping: PVC/PTFE/silicone cable/fiberglass wire
15. Blade material: Tungsten steel
16. Wire speed (pcs/h): 3000-8000
17. Drive: two wheels drive

1, Model: SWT508-SD
SWT508-SD*/S --- Touch Screen
2, Power: AC 220V/110V 50/60 Hz>
3, POWER: 200W
4, Cutting length: 1-9999 mm
5,Cutting tolerance: (0.2+/- 0.002 by L) mm
6, Cut off the error: can be modified
7, Stripping length: front end 0-35mm, Rear end 0-15 mm
8, Middle strip cut: 11 places strip
9, Cutting wire core section: 0.1-4.5mm2
10, Max cut diameter: ￠6
11, Optimal stripped wire: PVC/Teflon/silica gel line /. Glass fiber cables, etc
12, The blade material: hard tungsten steel (import BaiGang optional)
13, Peel linear velocity (a/hour): L = 100 mm, 3000-8000 PCS/h (high yield)
14, Driving way: 4 wheels drive
15, Envelope dimensions: 537*507*410
16, Weight:31KG
17, Showing the way: Chinese and English LCD interface
18, 12 months warranty
19, Noise level <70dB(A)

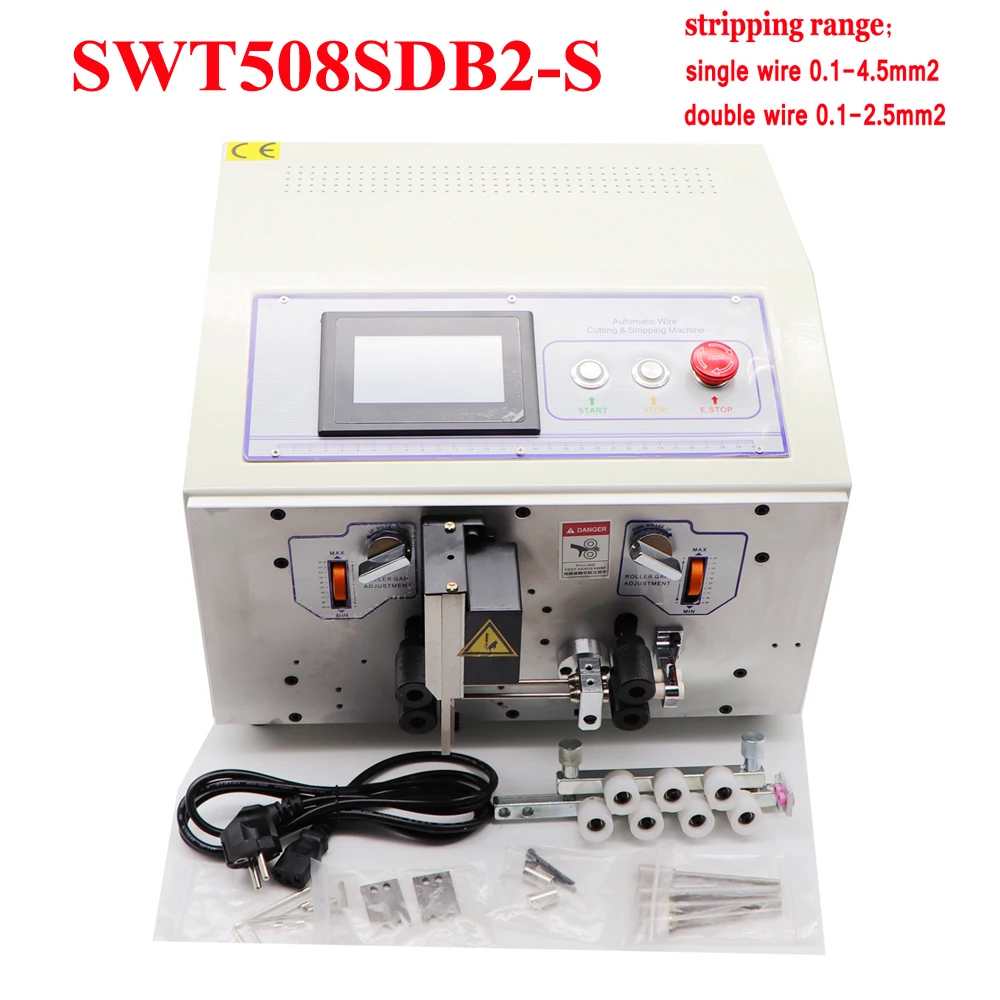

1, Model: SWT508-SDB
SWT508-SDB/S --- Touch Screen
2, Power: AC 220V/110V 50/60 Hz
3, POWER:200W
4, Cutting length: 1-9999 mm
5, Cutting tolerance: (0.2+/- 0.002 by L) mm
6, Cut off the error: can be modified
7, Stripping length: Front end 0-35mm, Rear end 0-15 mm
8, Middle strip cut: 11 places strip
9, Cutting wire core section: Single wire 0.1-4.5mm2; double wires 0.1-2.5mm2
10, Max cut diameter: ￠6
11, Optimal stripped wire: PVC/Teflon/silica gel line /. Glass fiber cables, etc
12, The blade material: hard tungsten steel (import BaiGang optional)
13, Peel linear velocity (a/hour) : L = 100 mm, 5000-10000 PCS/h (high yield)
14, Driving way: 4 wheels drive
15, Envelop dimensions: 537*507*410
16, Weight:31KG
17, Showing the way: Chinese and English LCD interface
18, 12 months warranty
19, Noise level <70dB(A)

1. Model: SWT508E
SWT508E/S -- Touch Screen
2. Voltage: AC 110V/220V/50/60 Hz
3. Dimensions: 390x350x255
4. Display mode: LCD liquid crystal display in Chinese and English interface
5. Weight: 32(KG)
6. Power: 300(W)
7. Cutting length: 1-9999mm
8. Cutting tolerance: (0.2±0.002×L)mm
9. Cutting tolerance: correction
10. Stripping length: head 0-50mm, end 0-50mm
11. Intermediate stripping: eleven-place strip
12. Wire cross-section: 0.1～8mm2
13. Maximum diameter of tube: ￠8
14. Suitable wire stripping: PVC/PTFE/silicone cable/fiberglass wire
15. Blade material: rigid steel
16. Wire speed (pcs/h): 2000-5000
17. Drive: four-wheel drive
