Chat OnlineDesktop Pelletizer
A crusher is usually used for varied shapes, and a pelletizer is used for pelletizing the filament extrusion from an extruder which is mostly applied for color masterbatch mixing or other kinds of additive mixing purposes.
Compounding pelletizer
Desktop Shredder
The difference between plastic shredder, crusher, and pelletizer.
A plastic pelletizer is a machine that is used to pelletize the plastic extrusion in the usual shape of filament into plastic pellets. A plastic pelletizer is usually used for compounding extrusion purposes to mix plastics or plastic with color masterbatch.
A plastic shredder is a machine that is used to recycle used plastic products like bottles and barrels. Shredder is known widely in the phrase paper shredder, you can imagine that the papers are shredded into slices strips, and uniform small pieces. A plastic shredder is just a machine for plastic products to be shredded.
A plastic crusher as usual is a machine for commercial recycling purposes, which is in larger volumes, large barrels, etc. It seems that Crusher has a stronger drive motor compared with Shredder. A crusher compresses first and then breaks the item, a car crusher is an example. A crusher is to break, a shredder is to break into pieces.
There are other words used to describe machines used for plastics, pulverizers, and grinders. Plastics can be found in two main shapes powder or pellet before it's used for products.
New update in 2023, the shredder and crusher are now the same as below RD-Shredder150
1. The shredder cannot be left unattended during operation to avoid accidents.
2. This equipment can be adjusted to forward and reverse. It needs to pause for 2 seconds when switching. It cannot be switched quickly to forward and reverse to avoid damage to the motor.
3. After plugging in the power, press start, the forward machine starts working, and you can feed.
4. Press the red button to stop when not in use. Do not put your hand into the hopper when using it to prevent accidental injury.
5. It can tear thin metal products, such as thin iron sheets, roll-up banners, copper sheets, and metal sheets with a thickness greater than 1MM. Please note that the cutter may be damaged.

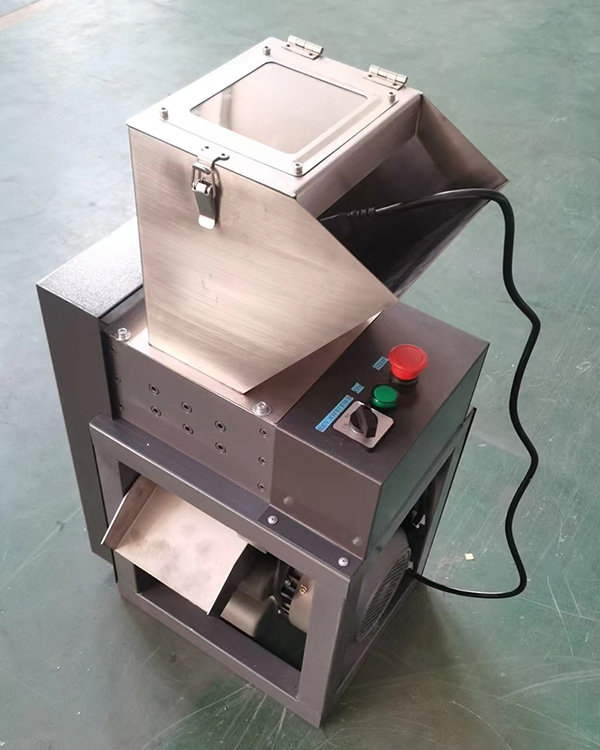

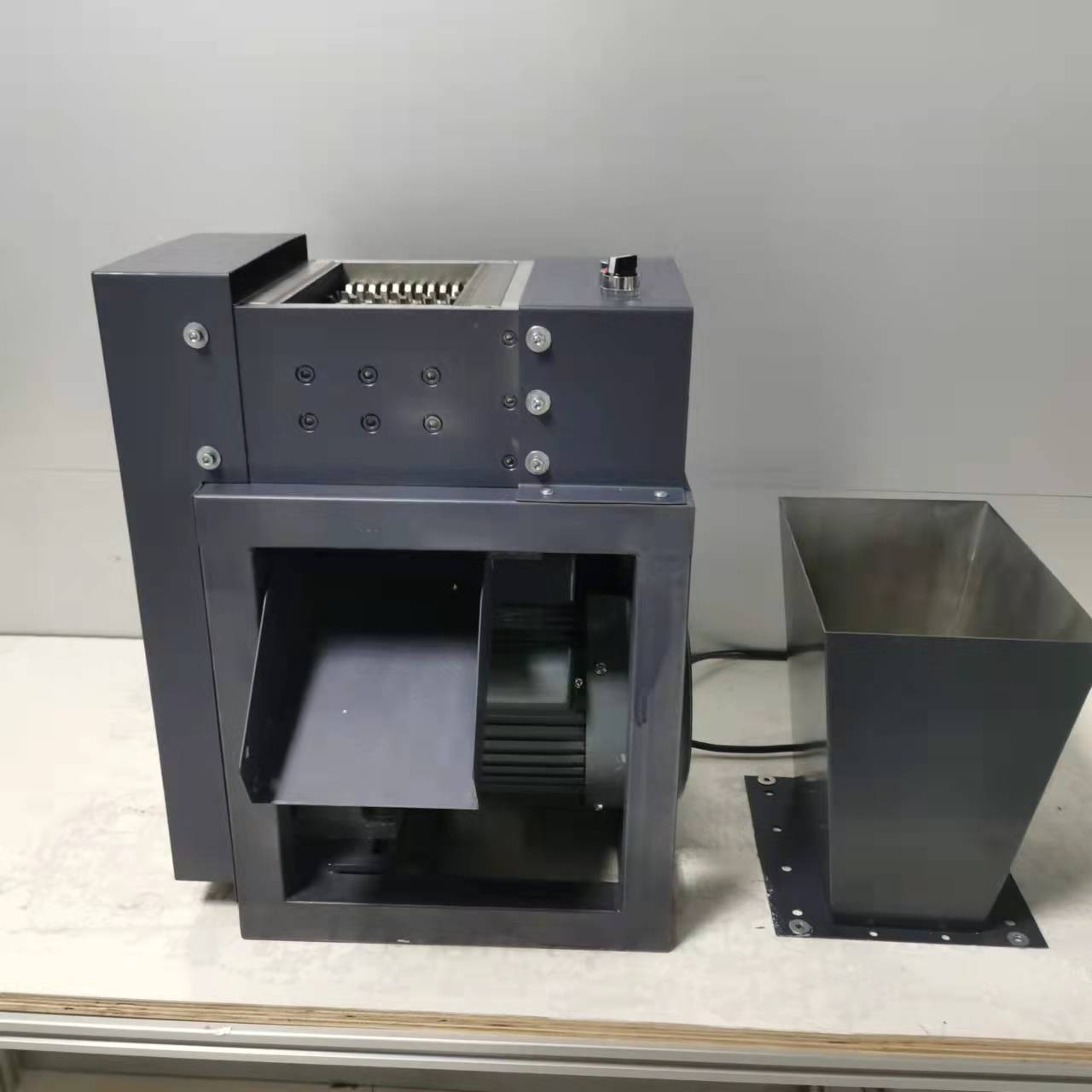

Benchtop Shredder
RD-Shredder180
Motor 1.5KW-4, 1 set (Lu'an Jintai)
Single phase, 220V, 50Hz
Reducer K47, 1 set (Hangzhou Yuhuang)
Input speed 25 rpm
Input torque 400Nm
Input shaft diameter Φ35

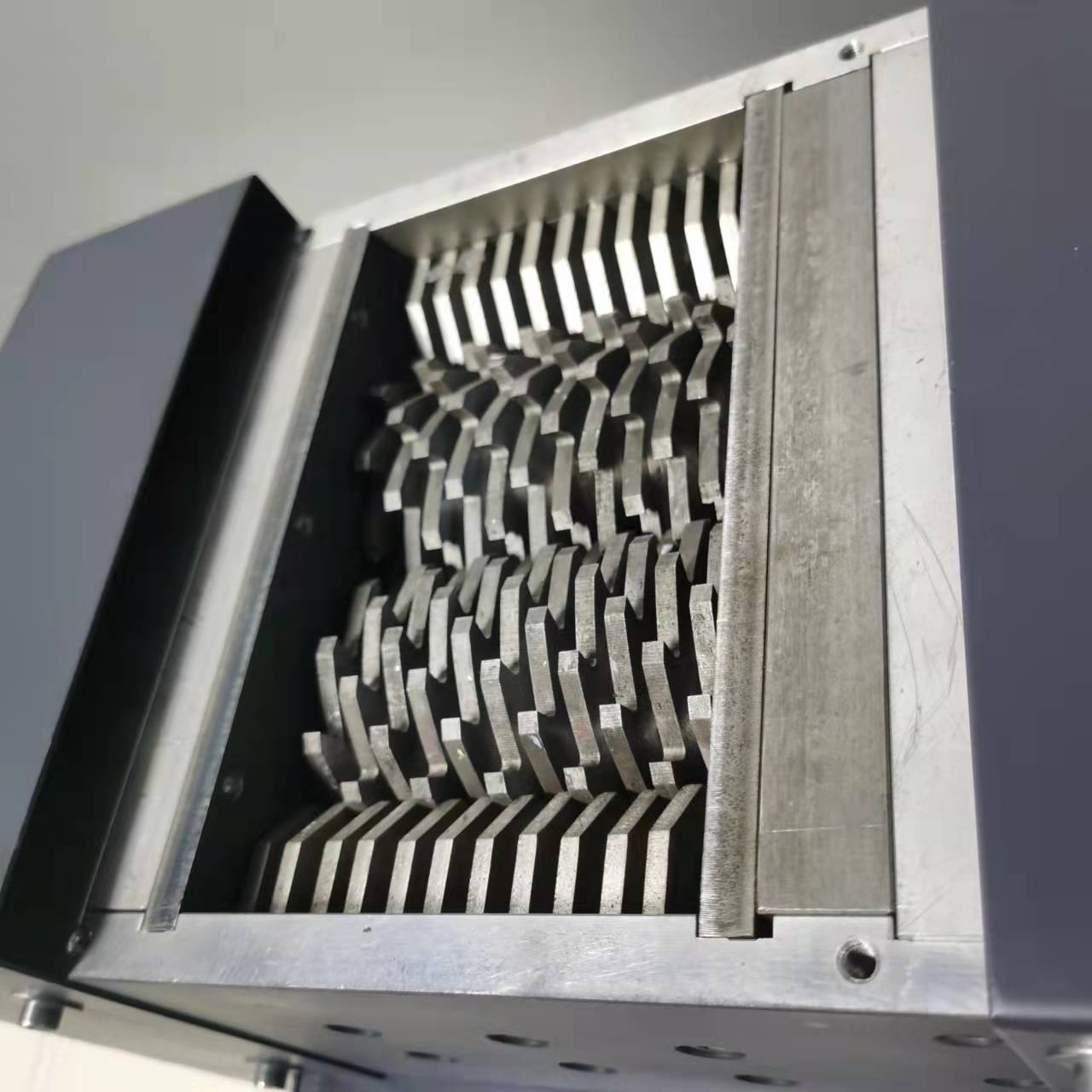

Blade specifications and materials Φ90*8,9CrSi
Number of blades 21 pieces
Inner cavity size (MM) 180*190
Feeding port width (MM) 280
Feeding port height from the ground (MM) 200
Machine dimensions (length * width * height MM) See attached picture
Machine weight sbout 120 kg
Application range Thin metal products, plastic products, kitchen waste, wood, paper, etc.

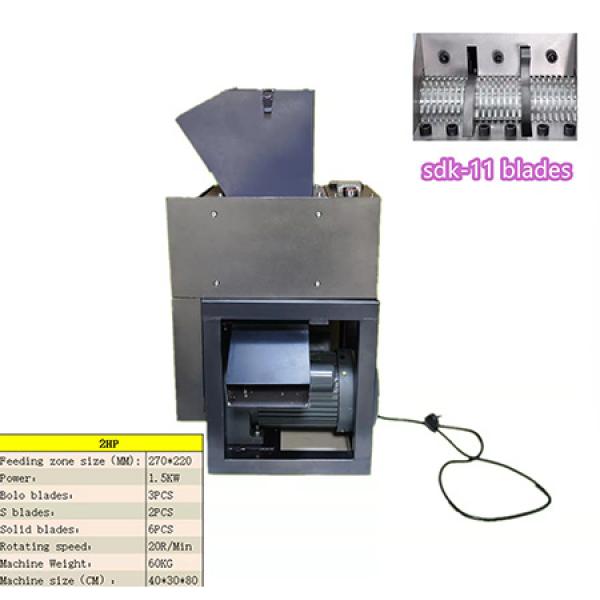

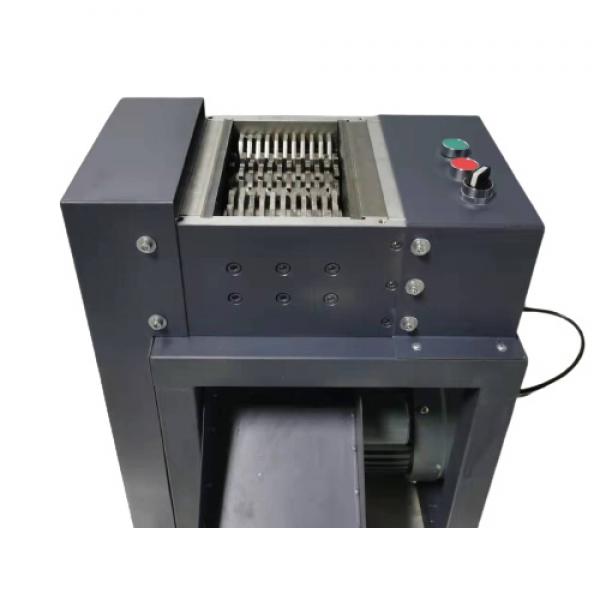

Desktop Crusher
Lab-size desktop crusher for 3D prints, plastic bottles, and cards crushing and recycling.
Feeding zone 270*220mm
Power: 1.5KW
Bolo blades: 3PCS
S Blades: 2PCS
Solid blades: 6PCS
Speed: 20RPM
