Desktop manual punching Press spring or lever type

$80.00

Specification

J03-0.3A
J03-0.2A
J03-0.4A
J03-0.6A
J03-1.0A
Chat Online

Desktop Manual Press

Product Description
Product name: manual press

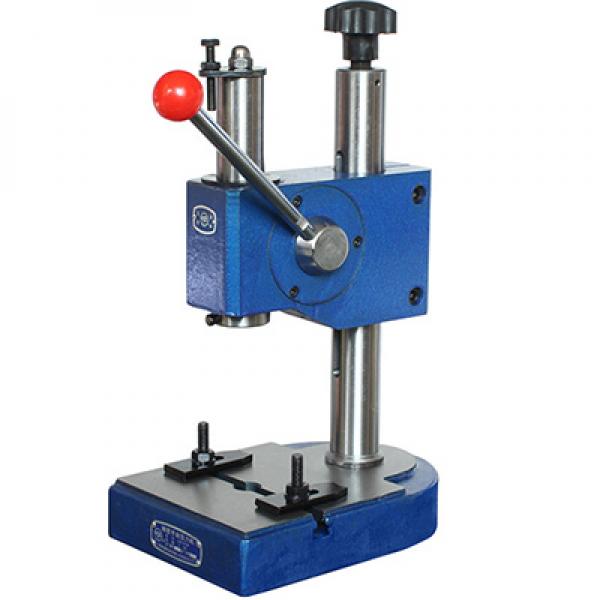

Product model: J03-0.3A heightening (spring type)
Can withstand the maximum pressure (kn): 3 (0.3 tons)
Die handle hole size: φ12X35mm
Closed height: 255mm
Closed height adjustment: 110mm
Maximum stroke of punch: 35mm
Throat depth: 65mm
T-slot size: slot width 11MM, suitable for M10 screws
Worktable size: 115X110mm
Dimensions: 130X200X450mm
Weight: 13kg

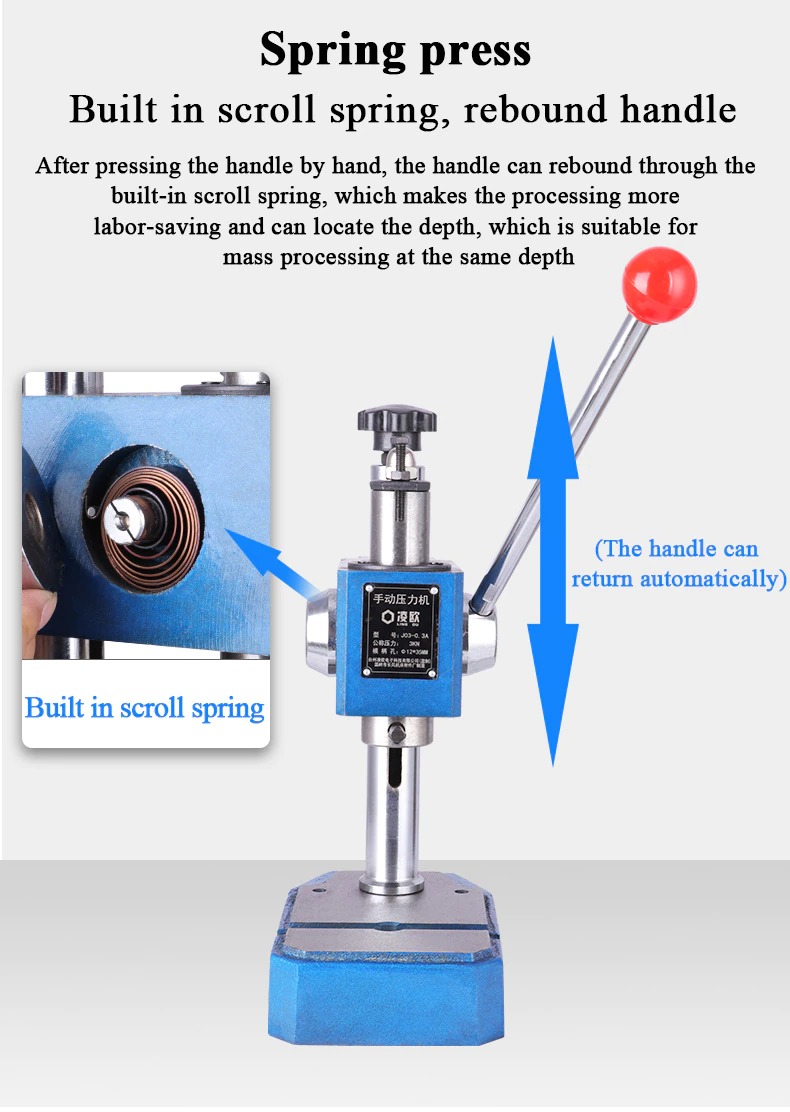

Manual Press
Feature:
Column heightening
Built-in scroll spring, rebound handle
Limited position mechanism, positioning depth
Round column, the main box can be lifted and rotated
Keyway guide
Suitable for the same depth processing

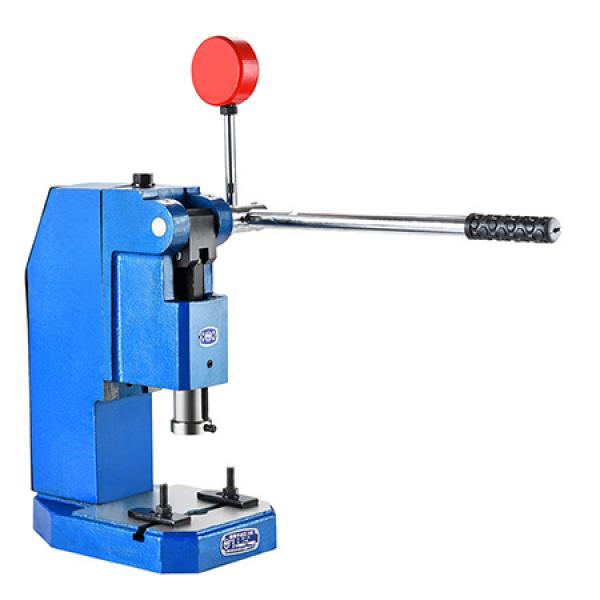

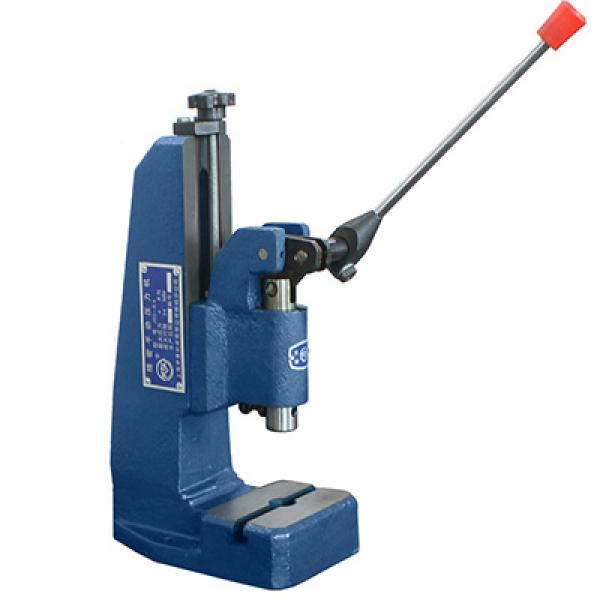

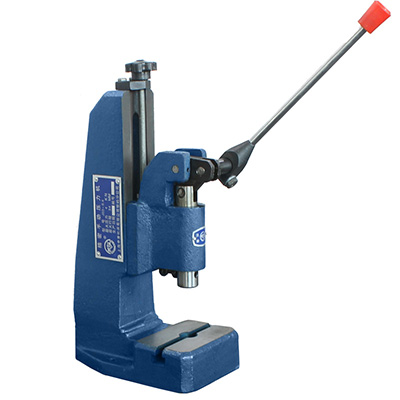

Product model: J03-0.4A (lever type)
Can withstand the maximum pressure (kn): 4 (0.4 tons)
Die handle hole size: φ10X30mm
Closed height: 175mm
Closed height adjustment: 120mm
Maximum stroke of punch: 34mm
Throat depth: 65mm
T-slot size: slot width 11MM, suitable for M10 screws
Worktable size: 70X100mm
Dimensions: 110X170X340mm
Weight: 12kg
Note: the red balance weight unit are available for 0.6 ton and above press

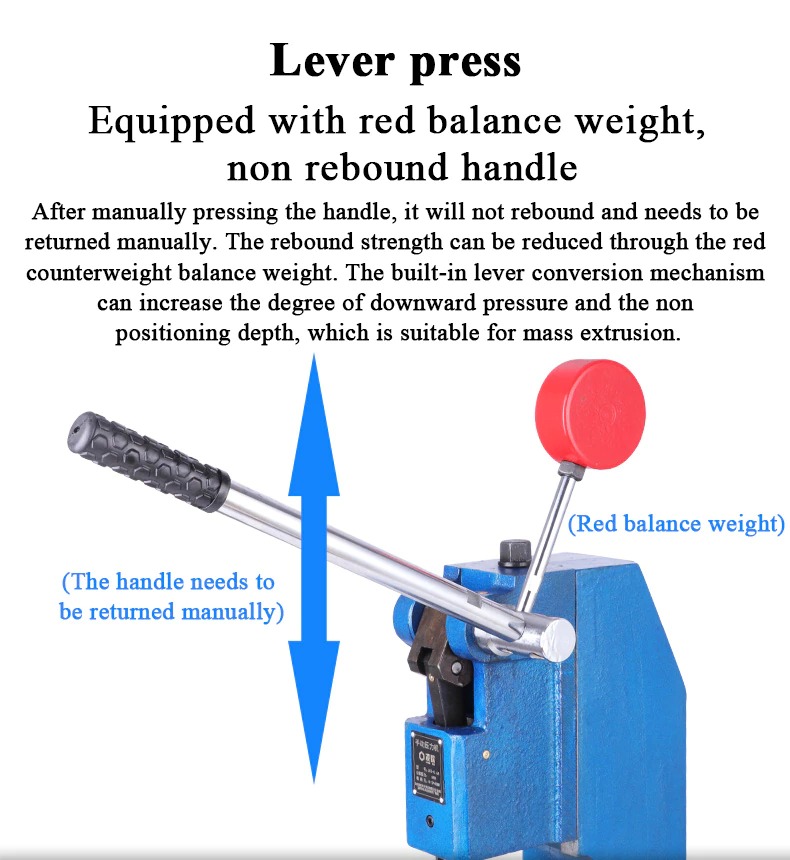

Desktop Press
Feature:
Equipped with red balance weight, non-rebound handle
The unlimited mechanism, no positioning depth
Square column, the main box can be raised and lowered without rotating
Ordinary screw guide
Suitable for force extrusion processing
