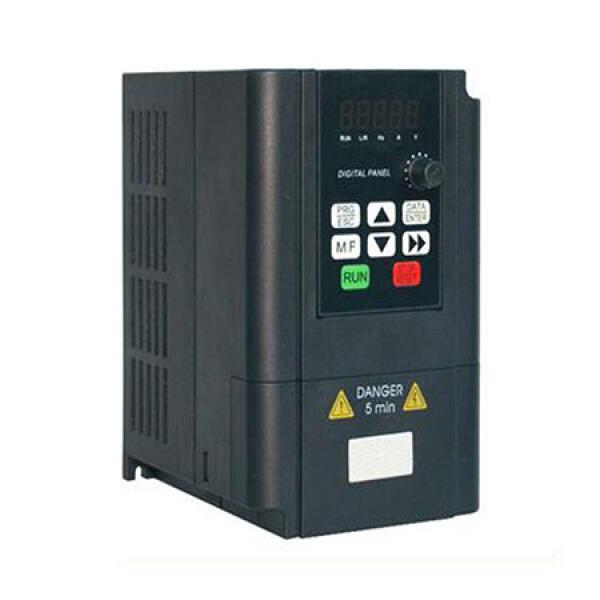

Single phase spindle inverter
Main loop terminal description:
R, S, T / L, N : Three-phase AC input terminal
Single-phase AC input terminal
(+), PB : Brake resistance connecting terminal
U, V, W : Three-phase AC output terminal
Earth terminal
Variable Frequency Drive Single Phase 110V or 220V input for CNC milling machine spindle motor.
