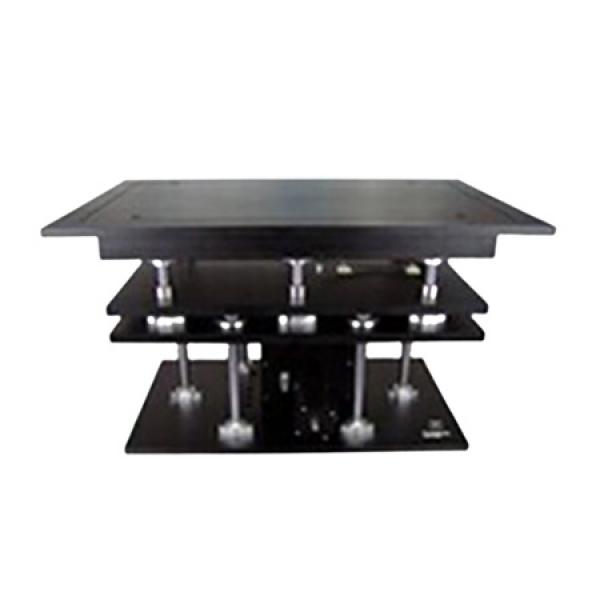

Stepper Motorized Lab Jack Lifting Platform

30mm travel 100Kgs load
45mm travel 180Kgs load


Chat Online

Stepper Motorized Labjack

Dimension of Platform: 500mm x 300mm
Drive Mechanism: Gear Motor with Grinding Screw
Travel Guide: Slide Rail
Stepper Motor (1.8°): 57BYG - Stepping Motor with 2-Phases & 1.8° of Step Angle
Material – Finish: Aluminum Alloy - Black-Anodized
Load Capacity: 100kg
Weight: 35kg

Accuracy Specifications
Minimum Adjust Distance: 0.2μm Non-MS Driver
Max Velocity: 10mm/sec
Repeatability: 15μm
Backlash: 4μm
Lost Motion: 3μm

A standard stepper controller of the stepping motor can be used for the automatic control
The lifting platform adopts a positive reversing mechanism and multi-axis support lifting to ensure stable movement and long service life
Adopt a precision grinding screw to drive the motion comfortably, which can be lifted at will and has small air return
The high-quality elastic coupling has good synchronous depolarization performance and greatly reduces eccentric disturbance
The electric lifting table can be used horizontally to form a multi-dimensional electric adjusting table with other kinds of table
Servo motor with limit function, initial zero position function, and rotary encoder
