Stepper Motorized Lab Jack Micro Electric Platform PT-GD40/60

Stepper Motorized Lab Jack Micro Electric Platform PT-GD40/60

PT-GD40

PT-GD60

Size:: Platform Size: 40×40mm
Color:: Lifting Stroke: 6mm
Weight:: 0.300Kgs

Size:: Platform Size: 60×60mm
Color:: Lifting Stroke: 10mm
Weight:: 0.700Kgs

$399.00

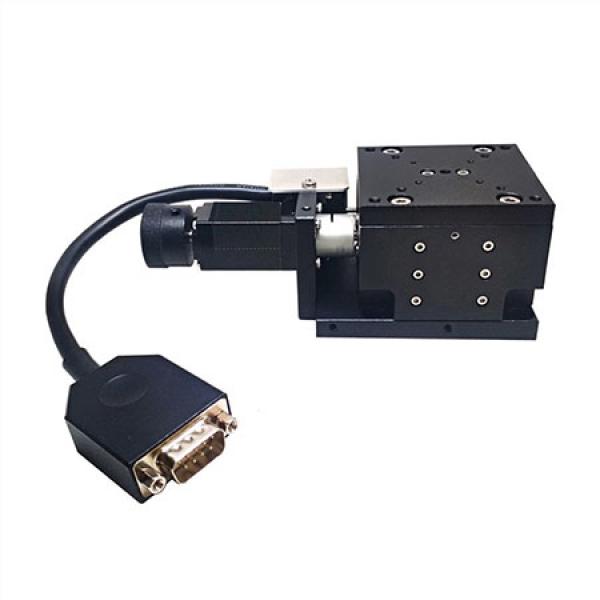

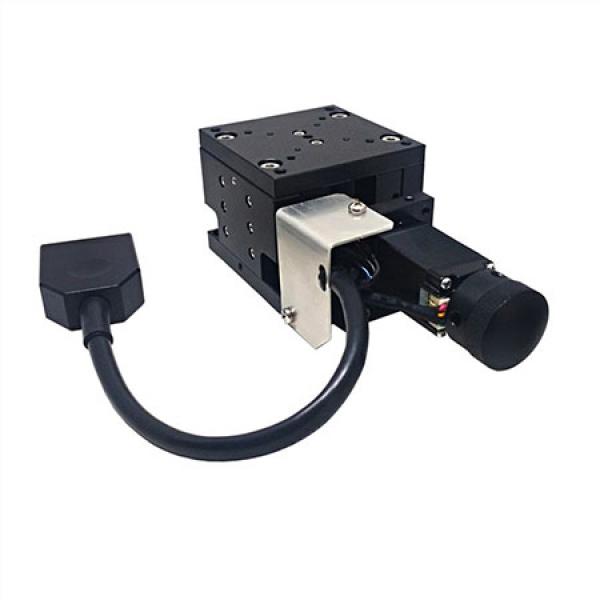

Micro Motorized Lift Platform

Part No. PT-GD40
Platform size 40*40mm
Lift stroke: 6mm
Loading capacity: 2.5Kg
PT-GD40 lift platform
Part No. PT-GD60
Platform size 60*60
Lift stroke: 10mm
Loading capacity: 4Kg
PT-GD60 lift platform

Accuracy of one-way positioning: ≤50μm
Repeated positioning accuracy: ≤20μm
Motor type: dual shaft NEMA 8 Stepper Motor, 1.8 step angle
Max speed: 5mm/s
Power supply: 24V DC
