Rolling ring linear drive for filament arrangement

GP15A
GP15C-250
GP20A
GP20C-250
GP30A
GP30C-500
Weight:
1.500Kgs
Weight:
3.000Kgs
Weight:
2.000Kgs
Weight:
7.000Kgs
Weight:
3.500Kgs
Weight:
12.500Kgs

$60.00

Chat Online

Rolling Ring Drive

GP15 Rolling Ring Drive

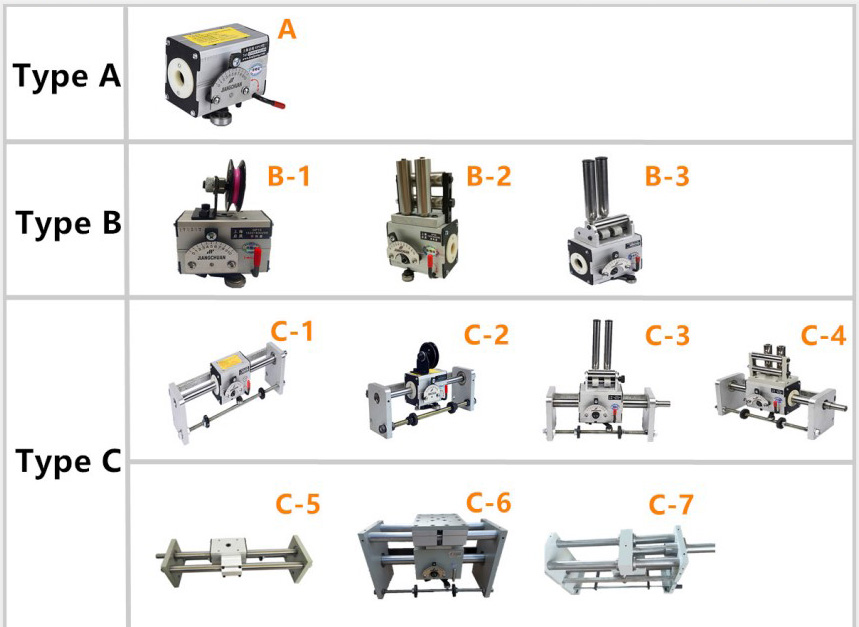

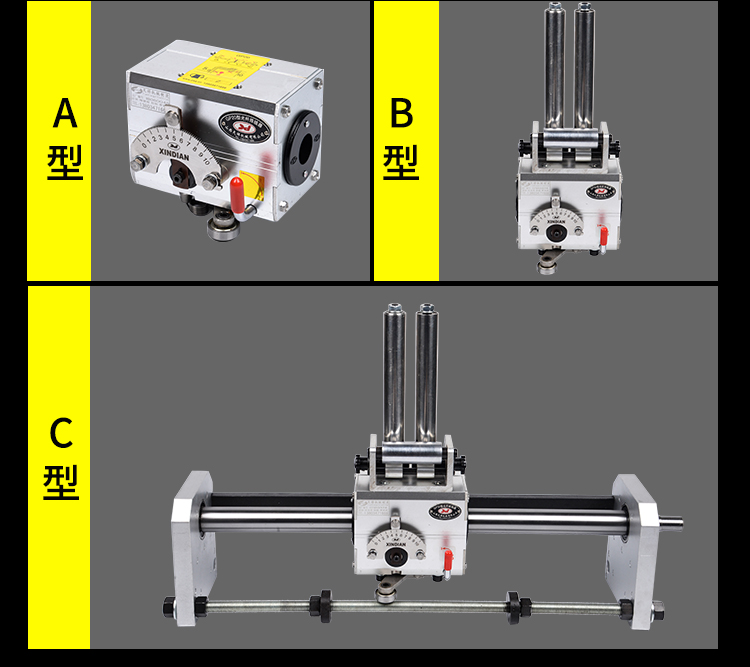

A Series: Rolling Ring Drives Type A Series just has one Rolling Ring linear drive, which is divided into eight types according to the diameter of the shafts. Our products are widely used in wire, steel wire, electrical wire, cable, textile industry, etc.
B Series: Rolling ring drives Type B Series just have One Rolling Ring linear drive with Guide Rollers or Guide Wheel, which are divided into six types according to the diameter of the shafts. Our products are widely used in wire, steel wire, electrical wire, cable, textile industry, etc.
C series: Rolling ring drives Type A Series just have One Rolling Ring linear drive with accessories, such as shaft, guide roller, bearing block, steady bar, etc, which are divided into eight types according to the diameter of the shafts. Our product is widely used in wire, steel wire, electrical wire, cable, textile industry, etc.

Traverse Unit for cable production

RobotDigg adopts GP15C-1-250 as the filament arrangement unit in the desktop filament production line.
Traverse Unit

Spooling Shaft

Spooling Shaft or the self-reversing screw is made for linear drive pitch control. You'd better let us know the diameter of the winding rope or line to decide the pitch of the level winder, in the same time we will advise you on the gear ratio for speed control.
