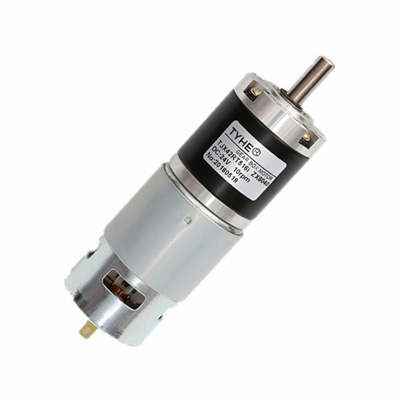

775 DC motor with planetary gearbox

775 DC motor with planetary gearbox

42GP12V-775_57RPM

42GP12V-775_80RPM

42GP24V-775_30RPM

42GP24V-775_42RPM

42GP24V-775_57RPM

42GP24V-775_80RPM

Size:: 12V 57RPM
Weight:: 0.600Kgs

Size:: 12V 80RPM
Weight:: 0.600Kgs

Size:: 24V 30RPM
Weight:: 0.600Kgs

Size:: 24V 42RPM
Weight:: 0.600Kgs

Size:: 24V 57RPM
Weight:: 0.600Kgs

Size:: 24V 80RPM
Weight:: 0.600Kgs

$23.00

RS775 DC motor with planetary gear

RS775-12V 7000rpm motor :

No-load speed (rpm) :7000
No-load current (A): 760
Rated speed (rpm) : 5600
Rated current (A): 2.81
Rated Torque (Nm): 38
Output power (W) : 22.28
Efficiency (%) : 66.16
Stall torque (mN.m) :114
Stall current (A) : 20

RS775-24V 6500rpm motor :

No-load speed (rpm) : 6500
No-load current (A): 400
Rated speed (rpm) : 5200
Rated current (A): 1.46
Rated Torque (Nm): 41
Output power (W) : 22.32
Efficiency (%) : 63.78
Stall torque (mN.m) : 123
Stall current(A): 10.3

775 dc gear motor
dc motor 775 with planetary gear
