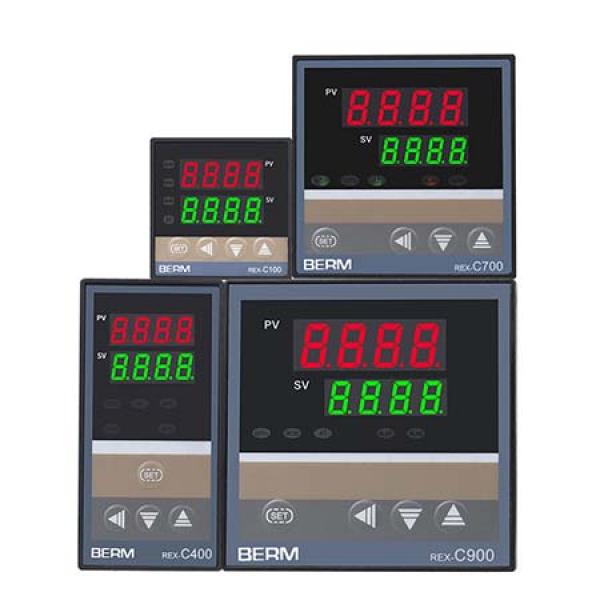

Digital Adjustable PID Temperature Controller Panel Thermostat

REX-C100
REX-C400
Size:
48X48X100mm
Color:
Black(100-240V)
Weight:
0.210Kgs
Size:
48*96*110mm
Color:
Black(100-240V)
Weight:
0.400Kgs

$9.00

Chat Online

REX-C100 SSR input PID temperature controller

PID controller



Model number REX-C100
External dimensions 48X48X100mm
Perforation dimensions
45X45mm
Accuracy ±0.5% of full scale
Supply voltage 100-240Vac, 50/60 Hz
Input types-Thermocouple K, J, R, S, B, E, N, T
RTD Pt100, Cu50
Voltage 0-5V, 1-5V
Current 0-20mA, 4-20mA
Output types Electromagnetic relay, SSR, current, SCR
Power consumption Less than 5 VA
Control method PID Control (with auto-tuning) or Self-tuning, or ON/OFF
Setting method Touch switch
Indication method 8-segment 4-digital display and LED indication
Sampling period 0.5s
Operating temperature 0 to 50 ℃ (32 to 122 ℉)
Operating humidity 30-85% RH max, non-condensing
Alias name REX-C pid temperature controller, intelligent temperature controller

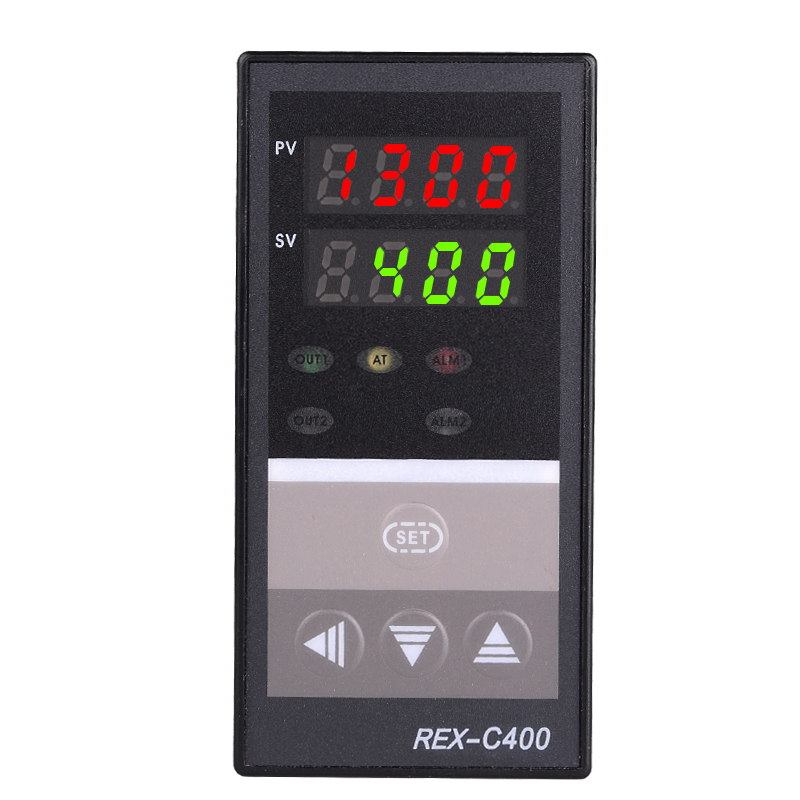

REX-C400 PID temperature controller

REX-C400 temperature controller
Specifications:
Display: Dual display for Celsius (C)
Range: 0-1300°C (this range is just for the temperature controller, the attached K type thermocouple is just for 400°C )
Main Output: Relay:
PID cooling/heating control
1 RELAY alarm: Normal open, capacity 250V/3A AC or 30V/3A DC
7 different Dual Output combinations with: high / low / high deviation / low deviation /interval / out of interval / breakage alarm
Accuracy: 0.5%
Input: Thermo Resistor: PT100, Cu50
Thermocouple: K,J,S,E,R,B,N,T
Dimension: DIN: 1/8 (48mm x 96mm x 110mm)
Weight: about 300g
Individually programmable PID control parameters.
P, I, d, controlling period, digital filter coefficient, and more
Relay control ready to connect
K type thermocouple: 0-400°C, 2m cable (6 feet).
Compact design:
DIN 1/8 great form-factor to be included/build-in to your product.
Input: TC(K,J,S,E,R,,N,T) / RTD (Pt100, CU50) universal input, or 4-20mA signal.
Control output: RELAY
Alarm output: 1 line output, 7 kinds of alarm mode: high/low/high deviation/low deviation/interval/out of interval/breakage alarm
