LX835 Linear Actuator
Input Voltage : 12V or 24V DC
Speed : 5mm/s - 50mm/s
Max Force : 3000N
Operating Temperature: -10-40℃

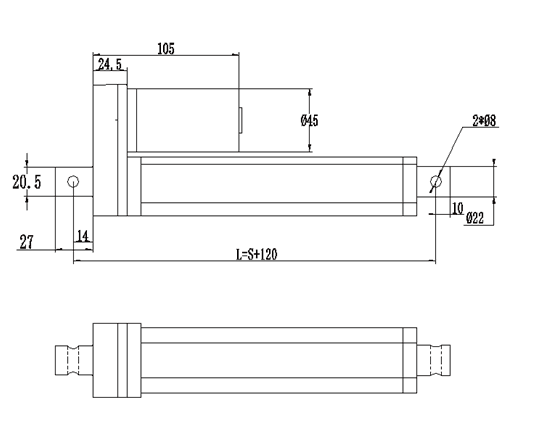

Mounting Distance: S+ 120mm Standard
IP Grade: IP54
Limited Switches : Built-in
Operating Frequency : S2-10min
- Home /
- Products /
- Linear RepRap /
- 12V or 24V DC 3000N LX835 Linear Actuator

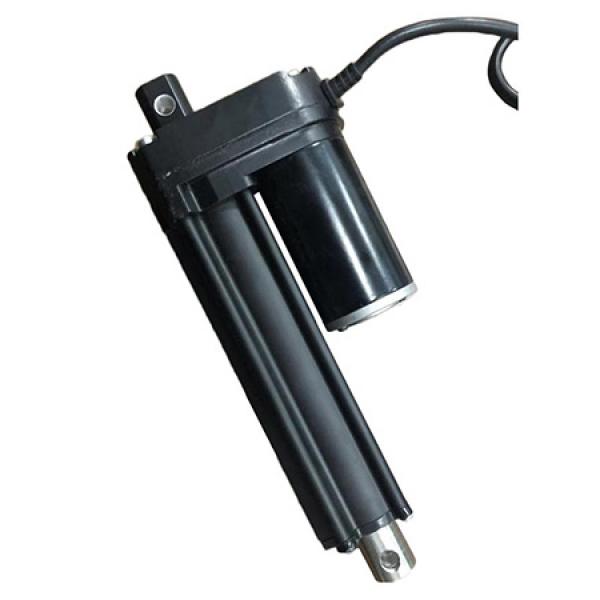

12V or 24V DC 3000N LX835 Linear Actuator
LX835-50mm-5-24V
LX835-100mm-5-24V
LX835-150mm-5-24V
LX835-200mm-5-24V
- Size:
- 50mm stroke
- Color:
- 5mm/s 24V 3000N
- Weight:
- 2.000Kgs
- Size:
- 100mm stroke
- Color:
- 5mm/s 24V 3000N
- Weight:
- 2.100Kgs
- Size:
- 150mm stroke
- Color:
- 5mm/s 24V 3000N
- Weight:
- 2.300Kgs
- Size:
- 200mm stroke
- Color:
- 5mm/s 24V 3000N
- Weight:
- 2.500Kgs
$65.00
