Reciprocating or self-reversing screw with block continuous linear

RS0808-25L100
RS1010-300
RS1010-250
RS1010-200
RS1010-150
RS1010-120
RS1010-100
RS1010-80
RS1010-50
RS2020-200
RS2020-250
RS2525-300
RS2525-350
RS2525-400
RS2525-500
Size:
D8 25 working length
Weight:
0.200Kgs
Size:
300 working 10mm pitch
Color:
SUS 10mm diameter
Weight:
0.400Kgs
Size:
250 working 10mm pitch
Color:
SUS 10mm diameter
Weight:
0.250Kgs
Size:
200 working 10mm pitch
Color:
SUS 10mm diameter
Weight:
0.200Kgs
Size:
150 working 10mm pitch
Color:
SUS 10mm diameter
Weight:
0.150Kgs
Size:
120 working 10mm pitch
Color:
SUS 10mm diameter
Weight:
0.180Kgs
Size:
100 working 10mm pitch
Color:
SUS 10mm diameter
Weight:
0.100Kgs
Size:
80 working 10mm pitch
Color:
SUS 10mm diameter
Weight:
0.100Kgs
Size:
50 working length
Color:
SUS 10mm diameter
Weight:
0.100Kgs
Size:
200 working length
Color:
40Cr Chrome
Weight:
1.800Kgs
Size:
250 working length
Color:
40Cr Chrome
Weight:
2.000Kgs
Size:
300 working length
Color:
40Cr Chrome
Weight:
2.400Kgs
Size:
350 working length
Color:
40Cr Chrome
Weight:
3.500Kgs
Size:
400 working length
Color:
40Cr Chrome
Weight:
3.500Kgs
Size:
500 working length
Color:
40Cr Chrome
Weight:
4.500Kgs

$30.00

Chat Online

Reciprocating or reversing screw and block

The screw is specially manufactured with a special nut to reciprocate at its travel ends.
RS1010-80 10mm pitch 80mm working length, 320mm in total
RS1010-100 10mm pitch 100mm working length 300mm total
RS1010-200 10mm pitch 200mm working length 400mm total
10mm diameter reversing screw is #304 stainless steel

RS2020-250 20mm pitch 250mm working length 500mm total, #45 carbon steel
RS2525-500 25mm pitch 500mm working length 800mm total, #45 carbon steel.
It's different with a normal lead screw or ball screw which is one direction no return running except you change the motor from CW to CCW vice versa.

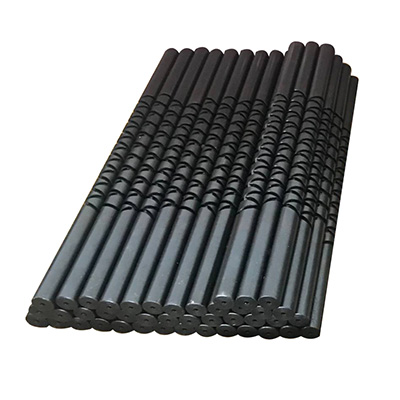

reciprocating screw

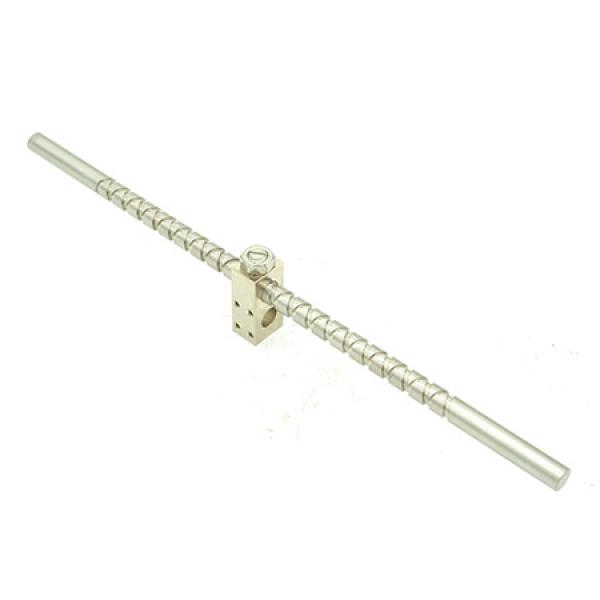

10mm reversing screw and block


2020 Reversing Screw Block

2525 Reversing Screw Block

Reversing Screw Application
Winch spooling shaft please contact us by email for a quote.

Welcome your Custom request for a quote
