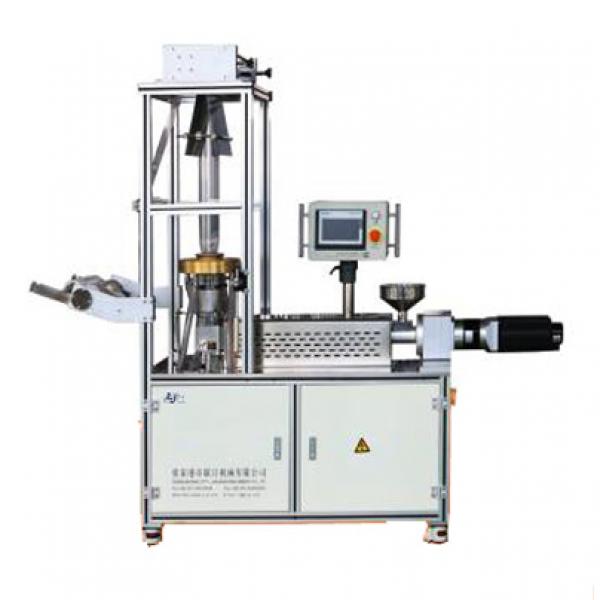

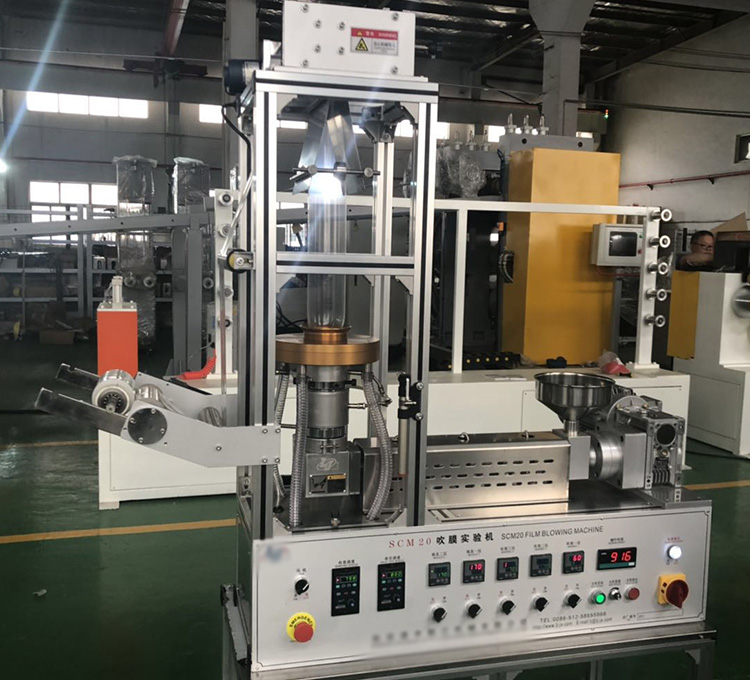

SCM20, SCM25 film blowing blown film extrusion machine

Film Blowing Machine

Film blowing machine is suitable for many different kinds of plastic material. such as color Masterbatch dispersed in the detection performance, optimizing the process parameters of production, and film-forming performance of the material. It is a good choice for scientific research teaching demonstrations and factory laboratories.
Parts include screw and barrel, motor, inverter, heaters, die head, winder, and tower. The main motor may have frequency control of motor speed to improve speed regulation and save electricity. The screw and material barrel may be made from a nitrogen-treated chromium-molybdenum-aluminum alloy.

Part no. SCM20
Electric resource:220V, 1PHASE, 50HZ
Extruder motor power:750w
Extruder screw: φ20mm
Screw L/D: 28:1
Screw speed: 10-50rpm
Traction motor power: 25w
Winding motor power: 10w
Film width: 50-120mm
Speed: 1.0-5.0m/min
Speed adjust: VFD control
Dimensions: 1360×570×1360mm (L×W×H)

Part no. SCM25
Electric resource:380V, 3PHASE, 50HZ
Extruder motor power: 2200w
Extruder screw: φ25mm
Screw L/D: 30:1
Screw speed: 10-50rpm
Traction motor power: 40w
Winding motor power: 40w
Film width: 75-125mm
Speed: 1.0-5.0m/min
Speed adjust: VFD control
Dimensions: 1850*700*1900mm(L×W×H)

Mono-layer, 3-layer, multilayer film, and TPU film-blowing machines are available from RobotDigg.
