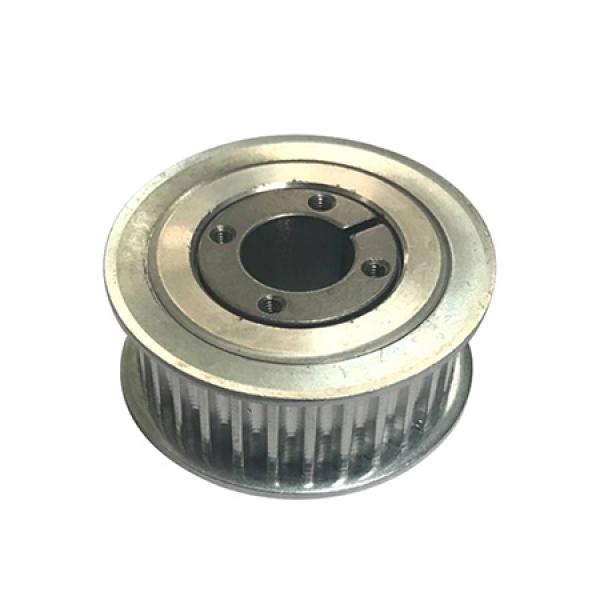

Keyless taper lock 3M or 5M timing pulley

Keyless taper lock 3M or 5M timing pulley

TL3M30T-10-635B

TL3M30T-10-8B

TL3M40T-10-8B

TL3M40T-10-10B

TL3M60T-10-8B

TL3M60T-10-12B

TL3M60T-10-14B

TL5M30T-15-8B

TL5M30T-15-12B

TL5M30T-15-14B

Size:: 3M 30 tooth 6.35mm bore
Weight:: 0.120Kgs

Size:: 3M 30 tooth 8mm bore
Weight:: 0.120Kgs

Size:: 3M 40 Tooth
Weight:: 0.150Kgs

Size:: 3M 40 tooth
Weight:: 0.120Kgs

Size:: 3M 60 Tooth
Weight:: 0.250Kgs

Size:: 3M 60 Tooth
Weight:: 0.250Kgs

Size:: 3M 60 Tooth
Weight:: 0.250Kgs

Size:: 30 Tooth 5M
Weight:: 0.150Kgs

Size:: 30 Tooth 5M
Weight:: 0.150Kgs

Size:: 30 Tooth 5M
Weight:: 0.150Kgs

$9.00

Taper Lock Keyless Timing Pulley

Timing pulley 3mm or 5mm pitch
Material aluminum
Tooth number 3M 30 or 60 tooth, 5M 30 tooth
3M pulley is suitable for 9mm wide 3M belt and 5M pulley for 15mm 5M belt

Taper-lock compared with set screw the holding force is axial and even, but set screw is radial and setting force is on just the point of a m3 or m4 screw diameter.
