NEMA11 lead screw stepper motor linear module
${{App.Price(price)}}
Specification{{specs.length > 1 ? 's' : ''}}:
{{spec.fdColor}}
{{spec.fdSize}}
Quantit{{quantity > 1 ? 'ies' : 'y'}}:

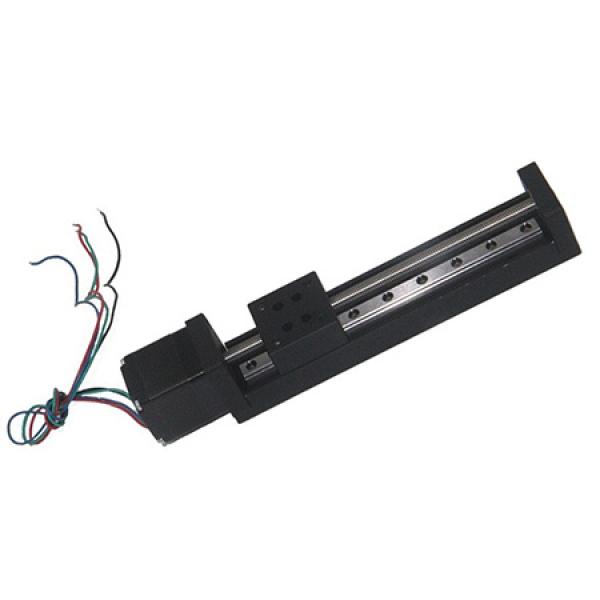

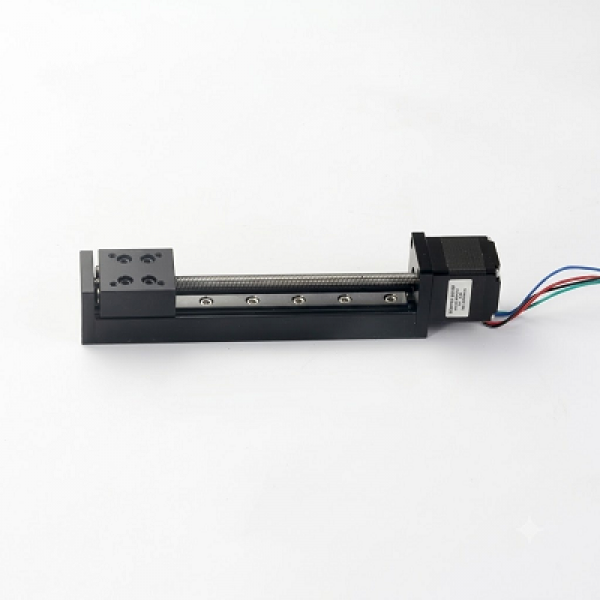

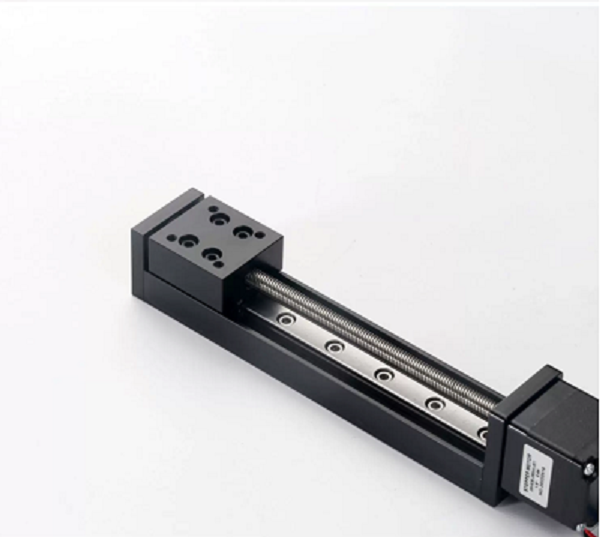

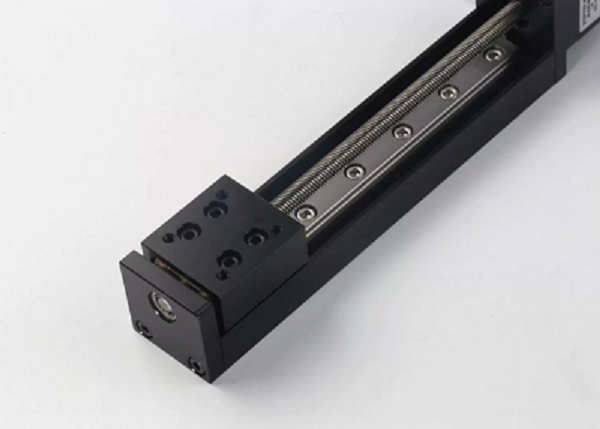

NEMA 11 stepper motorized linear module
NEMA 11 30mm body stepper motor
Two-phase bipolar 0.6A rated current
Tr6*1, Tr6*2, Tr6*4, Tr6*6, or Tr6*12 lead screw
PS: Tr6*2 default version will be shipped if there is No note while ordering.
GCr15 MGN9 made in China rail n carriage
Speed 0.1-120mm/s and loading 2.5Kgs below
Working lengths 50mm, 100mm, 150mm, 200mm are in stock.
Application
New arrival nema11 stepper belt driven linear module for high speed applications.
