PX110 stepper motorized electric rotary table

PX110-60
PX110-100-R90
PX110-100-R180
PX110-200-R45
PX110-200-R90
PX110-200-R180
Size:
Size 60
Color:
R90
Weight:
1.800Kgs
Size:
Size 100
Color:
R90
Weight:
1.800Kgs
Size:
Size 100
Color:
R180
Weight:
1.800Kgs
Size:
Size 200
Color:
45:1
Weight:
8.000Kgs
Size:
Size 200
Color:
90:1
Weight:
8.000Kgs
Size:
Size 200
Color:
180:1
Weight:
8.000Kgs

$189.00

Chat Online

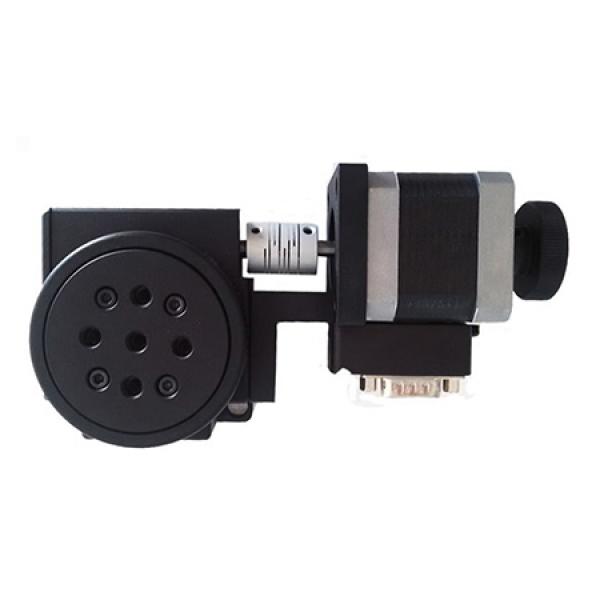

Precision electric rotary table

Rotary Table Features:
Standard stepping motor and RS232 interface, the company's self-developed ZD-KZ series motion controller can achieve automatic control.
The rotary shaft system is precision machined by multi-channel technology, with high precision, large load capacity and long service life.
Using precision research and development of worm gear and worm structure, it is comfortable to move, can rotate in any forward and reverse directions, and has a very small backlash.
Designed with a sophisticated air-back structure to adjust the backlash caused by long-term use.
The special structural design guarantees extremely low-end jump and eccentricity of the rotating table, making the rotary motion more stable.
The scale circle on the periphery of the table is a laser marking ruler. The scale can be rotated relative to the table to facilitate initial positioning and reading.
The stepping motor and the worm are connected by imported high-quality elastic couplings, the transmission is synchronized, the depolarization performance is good, the eccentric disturbance is greatly reduced and the noise is small.
The electric rotary table can be used in flat or vertical, and can be combined with other types of tables to form a multi-dimensional electric adjustment table.
It can increase the limit function, increase the initial zero position, replace the servo motor, install the rotary encoder, accept the product modification, and be tailor-made.

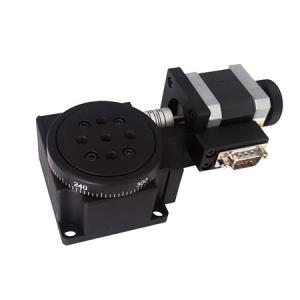

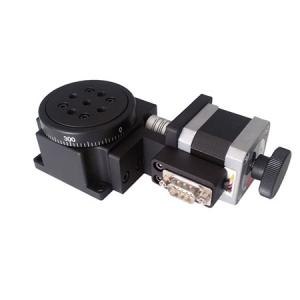

Stepper Motorized Rotary Table
Specification:
1 Item number:PX110-60
2 Rotation Range: 360° of Continuous Rotation
3 Diameter of Platform: Ø60mm
4 Drive Mechanism: Worm Gear
5 Worm Gear Ratio: 90 : 1
6 Stepper Motor (1.8°): 42BYG - Stepping Motor with 2-Phases & 1.8° of Step Angle
7 Material – Finish: Aluminum Alloy - Black-Anodized
8 Load Capacity: 30Kgs
9 Weight: 1.2kgs
Accuracy Specifications
1 Design Resolution: 0.02°, Non-MS Driver; 0.001°=36”, 20MS Driver
2 Rotational Velocity (Max): 50°/sec
3 Repeatability: 0.05°=18”
4 Absolute On-Axis Accuracy: 0.01°=36”
5 Run-Out of Top Plate: 15μm
6 Backlash: 0.005°=18”
7 Eccentricity: 5μm
8 Lost Motion: 0.005°=18″
9 Parallelization: 80μm

SPECIFICATION:
1 Item Number: PX110-100
2 Rotation Range: 360° of Continuous Rotation
3 Diameter of Platform: Ø100mm
4 Drive Mechanism: Worm Gear
5 Worm Gear Ratio: 180 : 1 or 90:1 (Choose one of the two)
6 Stepper Motor (1.8°): 42BYG - Stepping Motor with 2-Phases & 1.8° of Step Angle
7 Material and Finish: Aluminum Alloy, Black Anodized
8 Load Capacity: 45Kgs
9 Weight: 1.7Kgs
Accuracy Specifications
1 Design Resolution: 0.01, Non-MS Driver;
2 0.0005°=1.8”, 20MS Driver
3 Rotational Velocity (Max): 25°/sec
4 Repeatability: 0.005°=18”
5 Absolute On-Axis Accuracy: 0.01°=36”
6 Run-Out of Top Plate: 15μm
7 Backlash: 0.005°=18”
8 Eccentricity: 5μm
9 Lost Motion: 0.005°=18″
10 Parallelization: 80μm

PX110-200 rotary table
PX110-200 rotary table
DB9 PINOUT wiring diagram
DB9 wiring diagram
