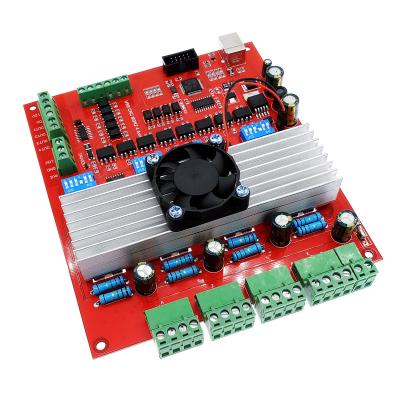

3 or 4 axis USB MACH3 control n drive board

3 axis control n drive
4 axis control n drive


Chat Online

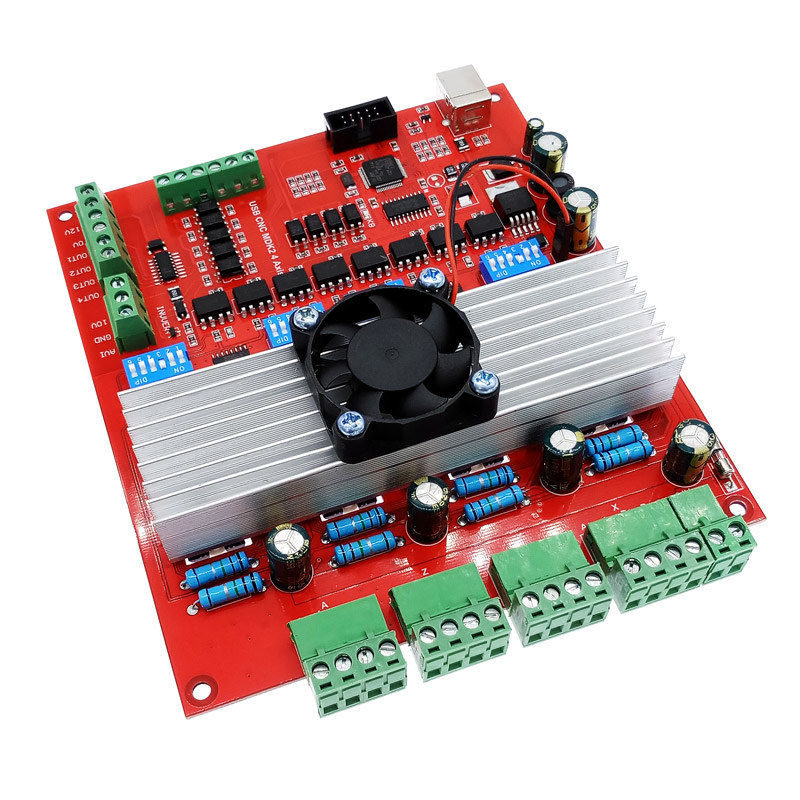

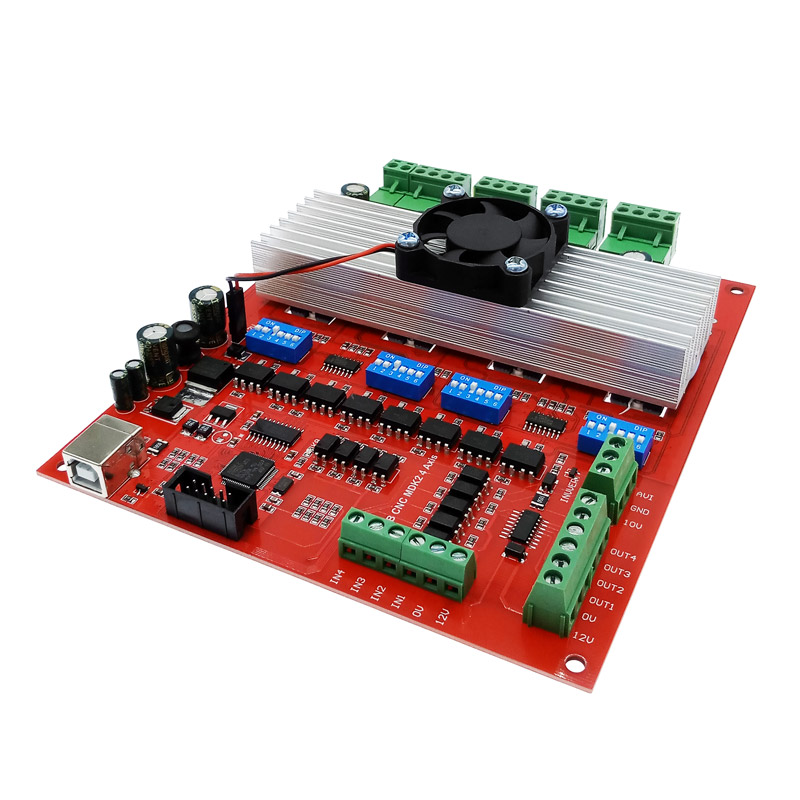

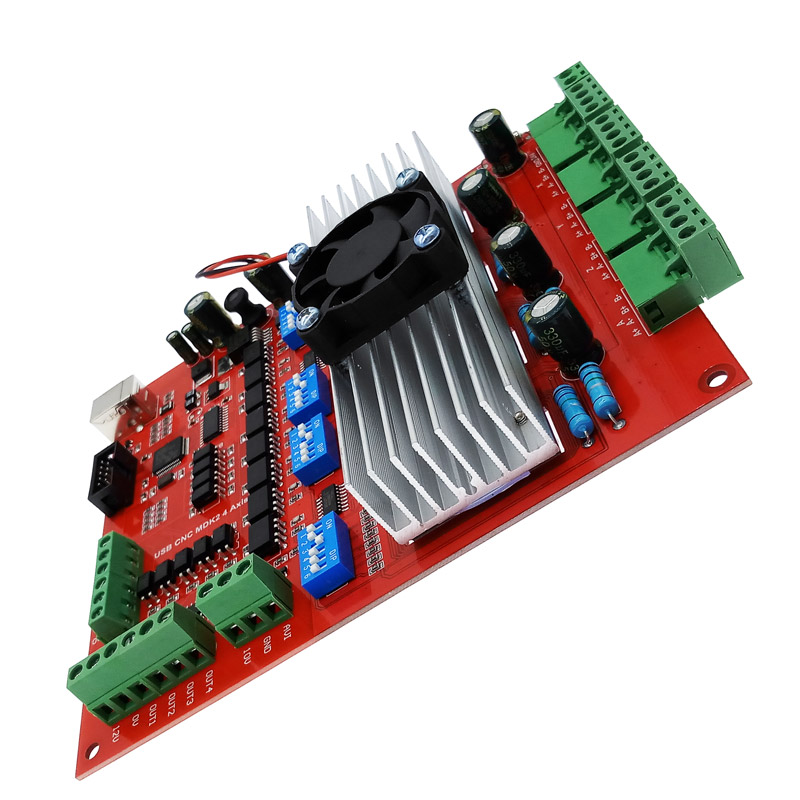

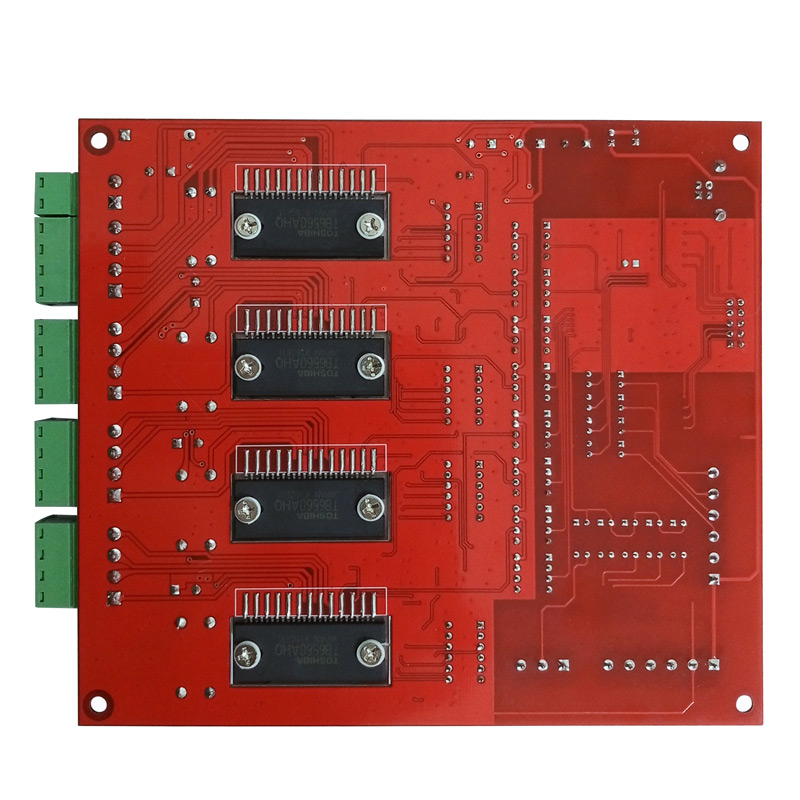

USB Mach3 Control Board

USB Mach3 3 or 4 axis
Product details:
Motor type: Stepper Motor
Model number:mach3 usb 3 or 4 axis
Frequency: 100KHZ
Packing list:
1 x USB Mach3 3 or 4 axis card
1 x USB cable
1 x CD
Mach3 USB Control Board
Item Specifications /Features:
1.Support for 3-axis linkage, you can connect four stepper motor drives or servo drives.
2. Maximum step-pulse frequency is 100KHz, which is suitable for the servo or stepping motor.
3. 3 general-purpose opto-couplers isolation input: can connect the limit switch, emergency stop switch, home switch etc.
4. Support for connecting electronic handwheel.
5. Have 0-10V signal output, you can use mach3 software to control the spindle motor speed.
6. 3 general-purpose isolated relay drive output interface, can drive three relays for controlling the spindle starts, forward rotating and reverse rotating, pumps or other device.
7. 1 status LED, indicate connection status on the board.
8. Resolution 1、1\2、1\8、1\16 micro stepping output.
9. Four(or three) channles 3.5A adjustable output current for 2/4 phase bipolar stepper driver.
10. Build with 4 outputs and 5 inputs.
