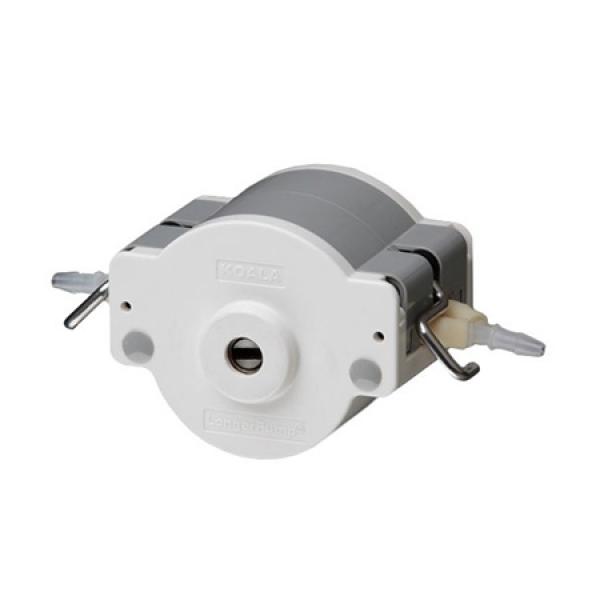

DMD15-13-B Peristaltic Pump Head

peristaltic pump stepper motor peristaltic pump

DMD15-13

Weight:: 0.550Kgs

$239.00

Low Pulsation Peristaltic Pump Head

The liquid flow is split into 2 channels on one side of the pump head and then the rollers push the liquid through the tubing in the pump head, whereafter it flows into one channel again. This structure provides a less pulsating liquid flow.
DMD15-13
The pump head is designed for high precision and small volume dispensing. It is suitable for flow rates as high as 600 rpm.
The material of the rollers is stainless steel and the housing is made from PESU
peristaltic pump

Type	Tubing	Max. flow rate (ml/min)	Dispensing volumen (ml)	Dispensing time (sek.)	Precision	Dispensing head ID (mm)
DMD15-13-B	2×13#	80	＞0.8	＞0.6	±2%	≤0.5
	2×13#	80	＞1.6	＞1.2	±1%	≤0.5
	2×14#	300	＞3	＞0.6	±2%	≤1.0
	2×14#	300	＞6	＞1.2	±1%	≤1.0
	2×19#	620	＞6.2	＞0.6	±2%	≤1.5
	2×19#	620	＞12.4	＞1.2	±1%	≤1.5
	2×16#	960	＞9.6	＞0.6	±2%	≤2.0
	2×16#	960	＞19.2	＞1.2	±1%	≤2.0
	*2×25#	2070	＞20.7	＞0.6	±2%	≤3.0
	*2×25#	2070	＞41.4	＞1.2	±1%	≤3.0
