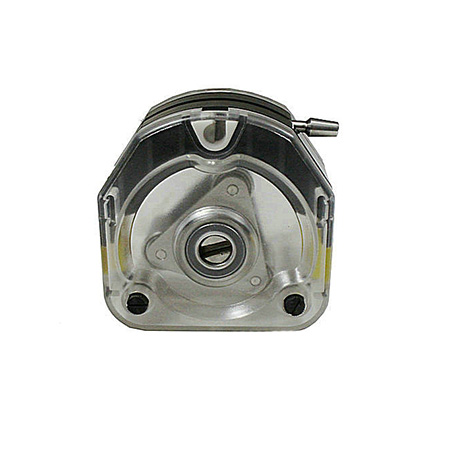

KZ25 quick load Peristaltic Pump head

Peristaltic Pump

Flow range: 0.28-6061mL/min
The shell is import TICONA PPS PC, anti-corrosion
Tube card structure, no need human intervention, easy and fast operation
Multi-head available
[Selection guide]
Model KZ25A
Shell material 304 stainless steel
Roller material 3
Available tube 15#, 24#, 35# or 36#
Speed (RPM) ≤600
Max flow rate (mL/min) ≤1800, 3200, 4500, 6061
High performance PPS shell, bear most chemical reagent, corrosion resistance
[Tube installation]
Pull the stick as counterclockwise 180°, take out the block
Load the tube on the V shape groove, between roller and 2 ends, load the block
Press the block, pull the stick, lock the block, installation finished
