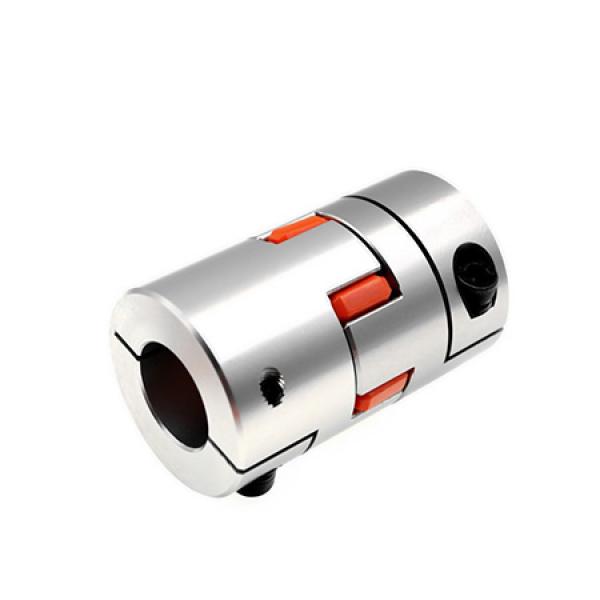

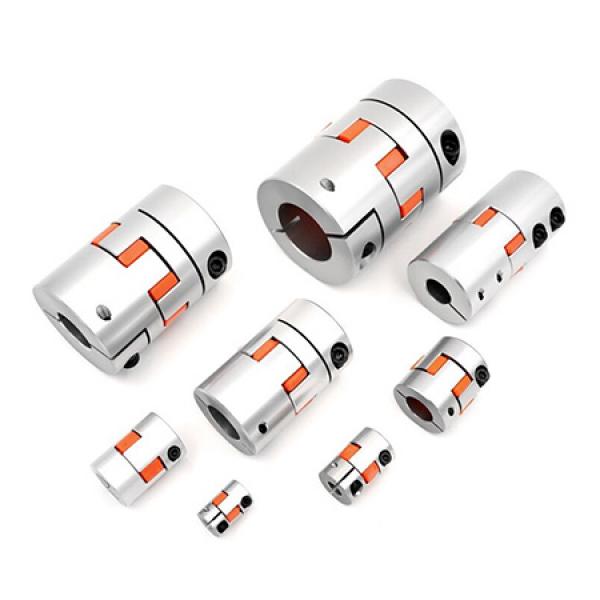

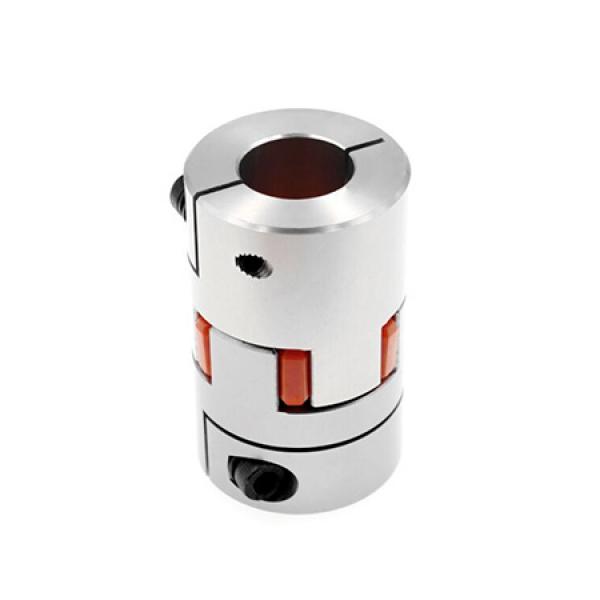

Ball Screw Flexible Coupling 8-12, 8-15, 8-20, 14-20

Ball Screw Flexible Coupling 8-12, 8-15, 8-20, 14-20

BSFC0812D20L25

BSFC0812D25L30

BSFC0812D30L40

BSFC0815D30L35

BSFC0820D40L50

BSFC1414D35L60-J5

BSFC1420D45L66

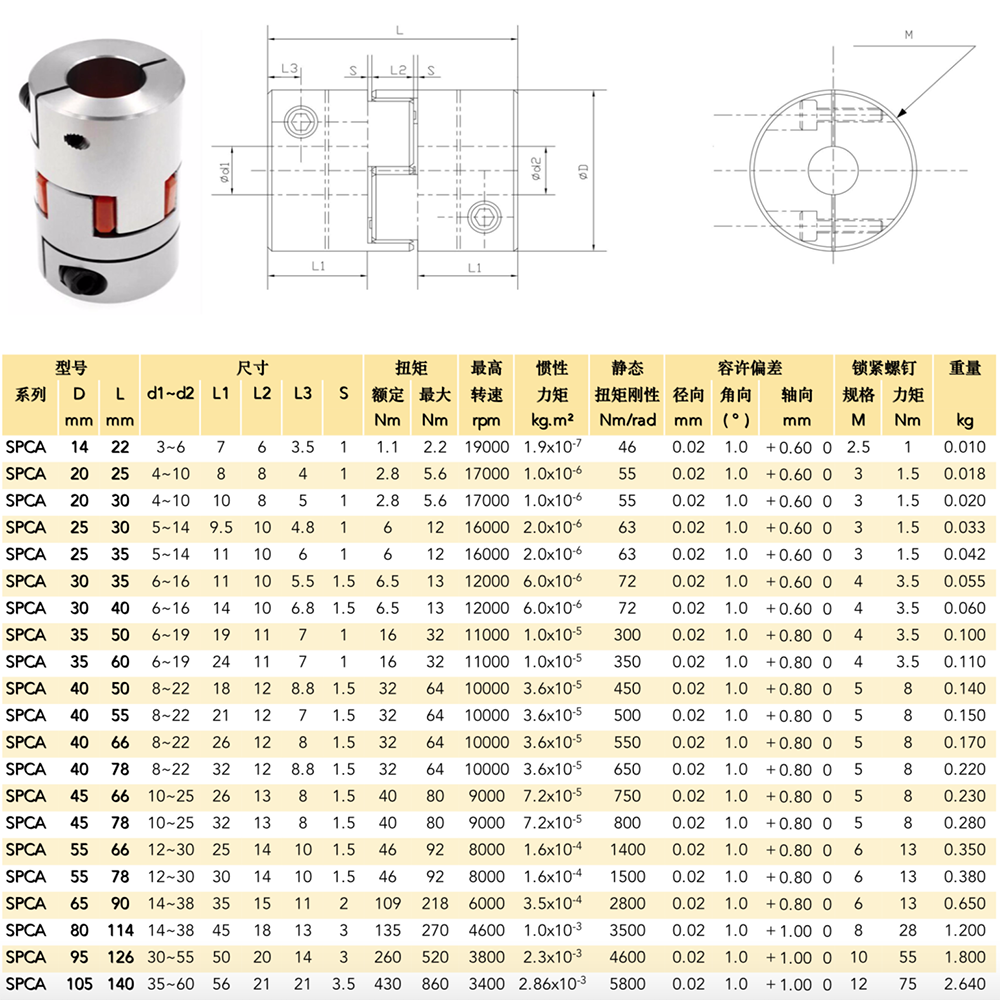

Size:: 8 to 12mm D20 L25
Weight:: 0.050Kgs

Size:: 8 to 12mm D25 L30
Weight:: 0.050Kgs

Size:: 8 to 12mm D30 L40
Weight:: 0.060Kgs

Size:: 8 to 15mm
Weight:: 0.065Kgs

Size:: 8 to 20mm
Weight:: 0.075Kgs

Size:: Keyway 5
Weight:: 0.090Kgs

Size:: 14 to 20mm
Weight:: 0.100Kgs

$3.60

Flexible Coupling for ball screw to the motor shaft

Plastic conjunction helps to anti-backlash.
Coupling assembled by pressing a polyurethane sleeve into hubs on both sides
Can absorb vibration, parallel, angular misalignments and shaft end-play
Resistance to oil and electrical insulation
Identical clockwise and anticlockwise rotational characteristics
Ball Screw Coupling

Ball Screw Coupling used to couple either stepper, brushless or servo motor shaft to machined ball screw 1605, 2005, 2510, 3205 or 3210 ball screws.

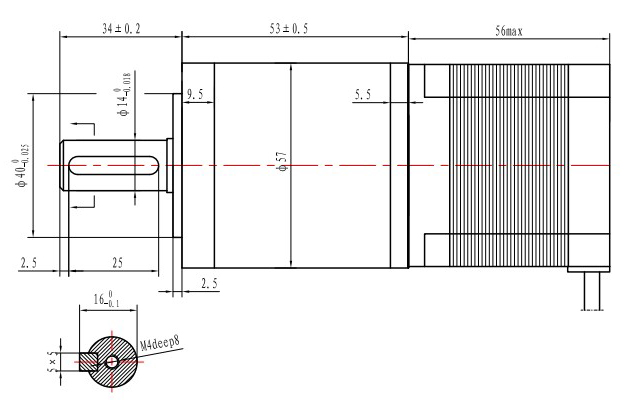

New supply BSFC1414D35L60-J5 14mm shaft with a 5*5 keyway which is popular for NEMA23 geared stepper or NEMA34 stepper motor or servo motor.
