Servo Motor Electric Cylinder Direct Connection Type



Chat Online

Direct Type Electric Cylinder

Thrust range: 0-300Kgs The journey can be up to 1m and the working system is 100%
Speed up to 500mm/s (Ball screw lead 5mm 250mm/s and 10mm 500mm/s)
Closed-loop servo control with control accuracy of 0.01mm
Precision thrust control accuracy is 5%, closed loop control accuracy is 1%
Precision control speed, high performance, high speed and low speed performance
Can maintain thrust output at any position
High dynamic response time, high acceleration
High rigidity, impact resistance
Long life, easy operation and maintenance, low noise

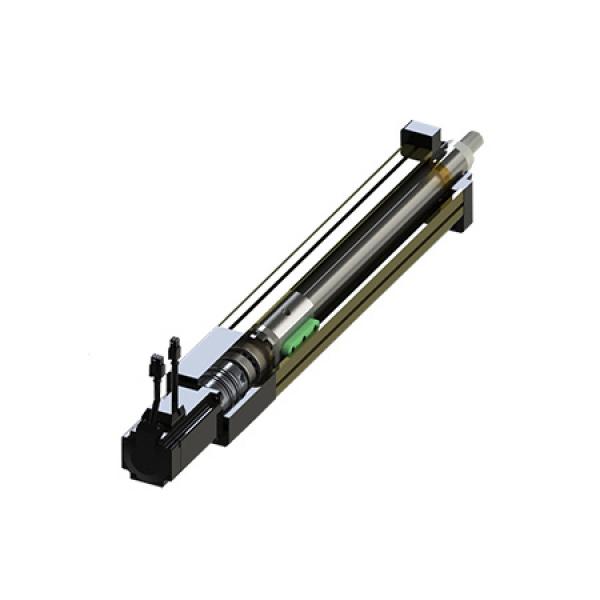

Direct Servo Cylinder
Bearing / drive housing: 6063-T6 anodized aluminum housing
Mounting plate: 6061-T6 anodized cast aluminum plate
Thrust bearings: angular contact, high thrust ball bearings
Screw / nut: copper; carbon steel alloy
Spiral gear: alloy steel, case hardening
Guide cylinder: 6063-T6 anodized aluminum hardened shell
Thrust tube: 300 series stainless steel, 1/4 hardness and grounded
Ball Screw / Nut: Heat Treated Carbon Alloy Steel
Belt/pulley: AT-5, polyurethane with stretchable steel wire
Optional accessories
Standard or custom length to 10-800 mm
Motor or ball screw brake
Thread, spherical, U bolt joint
Servo Cylinder
