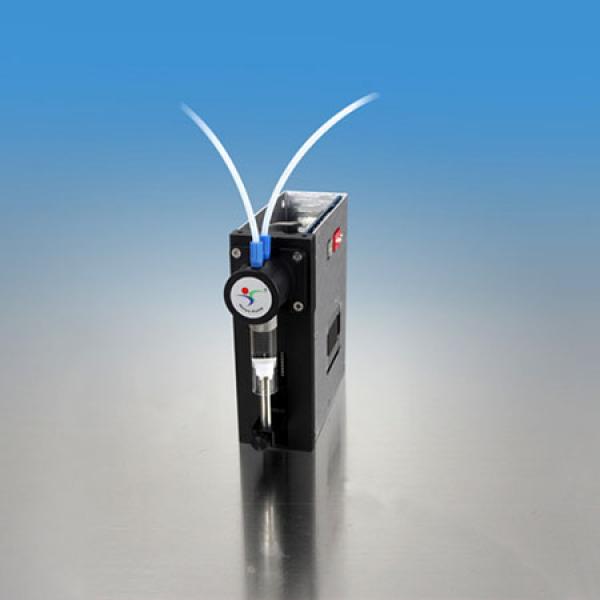

MSP30-1A industrial syringe pump

Industrial Syringe Pump

Technical parameter

Precision: ≤5‰
Stroke length: 3000 steps (30mm)
Control precision: 1 step（0.01mm）
Speed: 0.025-25mm/s
Single stroke operating time：1.2--1200s
Compatible Syringe: 50ul、100ul、250ul、500ul、1ml、2.5ml、5ml
Valve type: two-position three-way electromagnetic valve
Turn time: ≤100ms
Fluid Path: borosilicate glass, PTEF, PEEK
Max pressure: 0.1MPa
Valve fitting: 1/4″-28UNF inner thread interface
Output signal: three OC gate
Communication interface: RS232/485 options
The rate of communication: 9600/38400bps options
Set up pump address: through 16 digit dial switch
Dimensions : 100mm×65mm×127mm
Power: 24V DC/1.5A
Operating condition: Temperature 15 to 40℃(the temperature effect syringe much)
Relative humidity 80%
Weight: 0.95KG

Optional accessories
Syringe
Tubing
Power adapter
Programmable Capabilities: Ramps, cutoff velocity, backlash compensation, syringe speeds, loops, terminate moves and delays, error detection, valve rotation selection, enhanced “h” factor capabilities including valve rotation CW and CCW
