1. Model Number: RCD-MI40
2. Brand Name: RHINCODON
3. Product Name: Brushless Underwater Thruster
4. Motor type: Inner rotor brushless motor
5. Sealing: Maintenance-free full seal
6. Sealing structure: Composites/Adaptive rotary seal
7. Full Throttle FWD/REV Thrust @ Max: 3.5kgf (Forward) 1.5kgf (Reverse)
8. Rated voltage: 24VDC
9. Operating voltage: 11.1-25.2VDC
10. Rated power: 160W
11. Rated current: 7A
12. Depth of work: 200m
13. Minimum Thrust: 0.01kgf
14. Spindle material: AISI 316L
15. Propeller diameter: 61mm/Three blades
16. Propeller duct material: POM (Paraformaldehyde)
17. Propeller material: PC
18. Cable skin material: TUP (Thermoplastic polyurethanes)
19. Wire skin: PTFE (Poly tetra fluoroethylene)
20. Wire material: Tinned copper wire
21. Cable filler material: KEVLAR
22. Thruster housing material: 6 Series aluminum alloy（Hard anodized）
23. Propeller configuration: CW/CCW
24. Cable specifications: Outside diameter: 6.8mm/Length: 1m/Core: 3*1.0mm²
25. Other parts of the material： AISI 316L
26. Driver: Built-in ESC
27. Thruster weight: In the air: 770g / In the water: 400g
28. Temperature: Storage: 0-40℃ /Operating: 0-38℃
1. Model Number: ME207
2. Brand Name: RHINCODON
3. Product Name: Underwater Thruster
4. Motor type: BLDC Brushless motor
5. Sealing: Maintenance-free full sealing
6. Depth of Working: 0-300m
7. Working voltage：24V DC
8. Nominal Power: 340W
9. Nominal Speed: 3200rpm
10. Thrust: 7.0KGF (forward); 5.0KGF (reverse)
11. Propeller: 80mm 3-blade 7075-T6 CNC machined aluminum alloy CW/CCW propeller
12. Driver: External (not included)
12. Control Type: PWM signal control (50Hz, forward: 1.5ms-2.0ms; reverse: 1.5ms-1.0ms)
13. Signal Voltage: 5.0V DC
14. Net Weight (without mount): 600g, 370g (in water)
15. Net Weight (with mount): 660g, 436g (in water)
16. Cable: Black TPU (Length: 1m, Outer diameter: 6.5mm, Core: 3*1.0mm²)

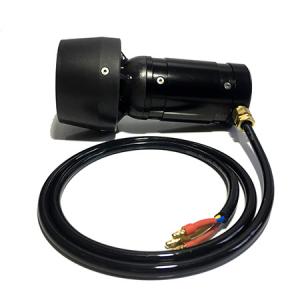

RCD-MI60 300m underwater thruster is a power unit that can provide thrust for underwater equipment (instruments) or underwater robot, specially designed for ROV, AUV, underwater vehicles, water or underwater leisure equipment, aquaculture industry, underwater cleaning equipment and so on, with high efficiency, large thrust, small size, use flexible and easy to control of features.
Feature:
1. Meet the working environment within 300 meters of depth underwater. New design, more safety, more reliability, longer life, more convenient maintenance.
2. The 60mm diameter 4 blades metal propeller provides a thrust of up to 7Kgs.
3. Control propeller can effectively provide positive and reverse rotation.
4. Gearless reducing speed structure, use the brushless DC motor to drive directly, reduce intermediate links, improve the transmission efficiency, and reduce equipment failure rates.
5. The full set used 6061 aluminum, surface anodized, output shaft uses 316L stainless steel material, able to meet different user requirements of fresh water, seawater, and other special environments.
Specification
Type: Brushless DC Motor
Model: RCD-MI60
Voltage: DC 24V
Rated Current: 16A
Max Current: 17A (short time)
Rated Power: 375W
Max Rotate Speed: Approx. 8200rpm/min
Max Working Depth: 300M
Max Thrust: Approx. 7kg
Net Weight: Approx. 0.85kg
Package Includes:
1* Brushless DC Motor
