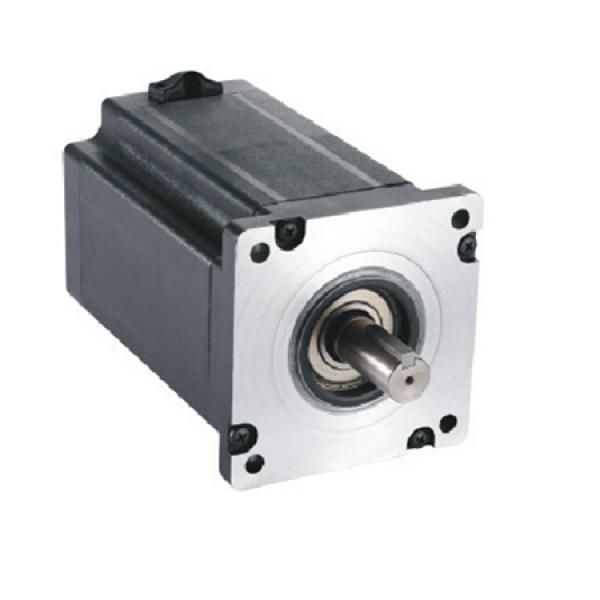

Chat OnlineNEMA42 BLDC Motor
This series brushless DC motor, compared to the existing products in the market, because of the design innovation makes brushless motor has lower noise, less vibration and longer working life advantages. Products can be widely used in industrial automation, machinery and equipment manufacturing, medical equipment, medical pumps, centrifuge, stirring instrument, peristaltic pump, bio-pharmaceutical equipment industrial equipment: winding machine, printing machine, robot, grinding, cutting, drilling, garment equipment, lifting system, automatic conveying system, automatic positioning System, level control system, electric actuator, electric valve, vending machine and so on.
Low-speed stability, large start-up torque, small start-up current, rated speed range are efficient interval.
Motor speed control range 100~3000r/min, to the load speed change rate is ± 0.5%
310V DC AGV Motor Automated Guided Vehicle
1.5Kw BLDC Motor 1500 RPM or 3000 RPM for different applications.
NEMA42 frame 142mm length 48V or 310V DC 3000RPM with torque 6.7N.m
1.5Kw NEMA42 frame 232mm length 48V DC 1500RPM with torque 9.6N.m is widely used for AGV, it's different from the 3Kw version that is only available in 310V DC high voltage version.
