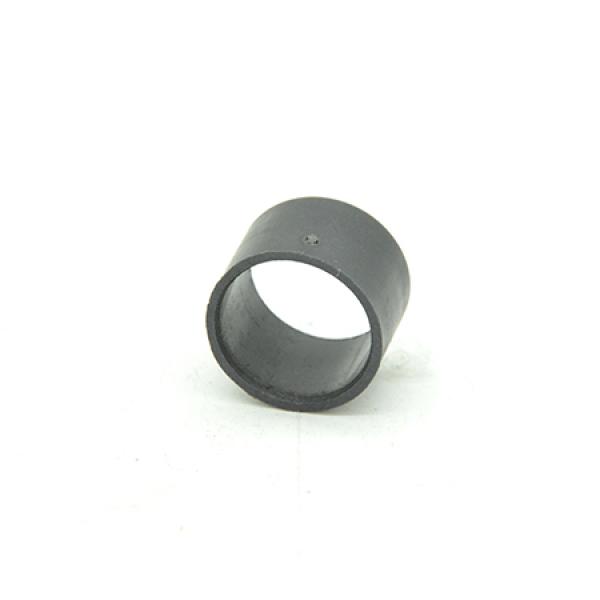

Chat OnlineEPG Plastic Bushings
Applications ace high loads. As the perfect combination of fiber-reinforced and lubricating materials, it can be widely applied at 130 degrees.
1: continuous use temperature: -40 ℃ ~ + 130 ℃;
2: For high loads, common good;
3: Suitable for dry running, maintenance-free;
4: for different shaft materials;
5: for rotating, oscillating motion;
6: Anti-dust ability.
| d mm² | Tolerance after fit E10 | Fit Housing H7 | Fit Shaft h9 |
| ＞0~3 | +0.014~+0.054 | 0~+0.010 | 0~-0.025 |
| ＞3~6 | +0.020~+0.068 | 0~+0.012 | 0~-0.030 |
| ＞6~10 | +0.025~+0.083 | 0~+0.015 | 0~-0.036 |
| ＞10~18 | +0.032~+0.102 | 0~+0.018 | 0~-0.043 |
| ＞18~30 | +0.040~+0.124 | 0~+0.021 | 0~-0.052 |
| ＞30~50 | +0.050~+0.150 | 0~+0.025 | 0~-0.062 |
| ＞50~80 | +0.060~+0.180 | 0~+0.030 | 0~-0.074 |
| ＞80~120 | +0.072~+0.212 | 0~+0.035 | 0~-0.087 |
| ＞120~180 | +0.085~+0.245 | 0~+0.040 | 0~-0.100 |
