NEMA17 or NEMA23 Turbine Worm Gear Stepper motor

42HB48-17R
42HB48-D2-17R
42HB48-32R
42HB48-D2-32R
42HB48-49R
42HB48-D2-49R
57HS76-15R
57HS76-30R
Size:
17:1 ratio reducer
Weight:
0.600Kgs
Size:
Dual shaft 17:1
Weight:
0.600Kgs
Size:
32:1 ratio reducer
Weight:
0.600Kgs
Size:
Dual shaft 32:1
Weight:
0.600Kgs
Size:
49:1 ratio reducer
Weight:
0.600Kgs
Size:
Dual shaft 49:1
Weight:
0.600Kgs
Size:
15 ratio worm gear
Weight:
2.000Kgs
Size:
30 ratio worm gear
Weight:
2.000Kgs

$29.00

Chat Online

Turbine Worm Gear Stepper Motor

Type Hybrid Bipolar
Two-phase 4 lead wires
Step angle(degrees) 1.8
Model Number 42 Reduction step motor -4 line
Holding Torque 500mN.m
Current / Phase 1.5A
Voltage 12-36V DC
Motor torque 5.5kg.cm
Motor size 42mm*42mm*48mm
Flange size 42mm*42mm*8mm
Reduction ratio 1:17 1:32 1:49
Reducer size 40mm*57mm*35mm
Output shaft diameter 8mm
Output shaft length 15mm
Vertical directional output NEMA17 geared stepper motor
Worm Gear NEMA17
NEMA17 phase resistance 2.1 Ohms, rated current 1.7A
1:17 1N.m, 1:32 1.8N.m, 1:49 2.9N.m
The dual-shaft is the output shaft of the worm gearbox, Not the stepper motor.

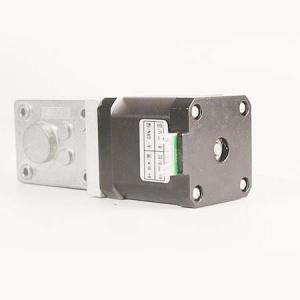

stepper motor with worm gearbox

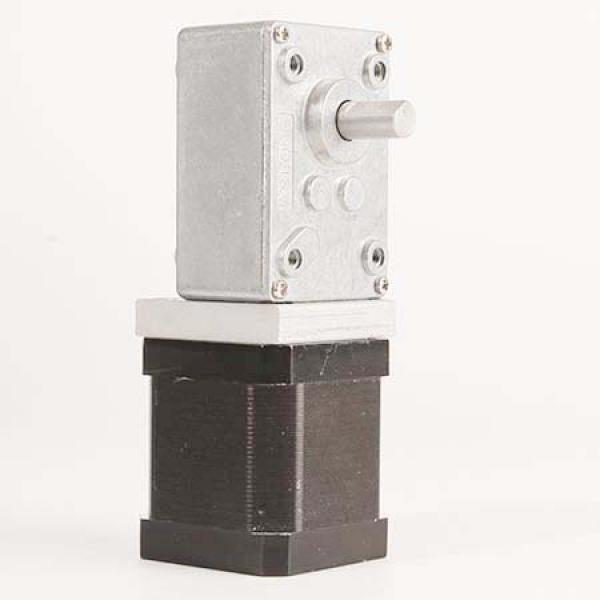

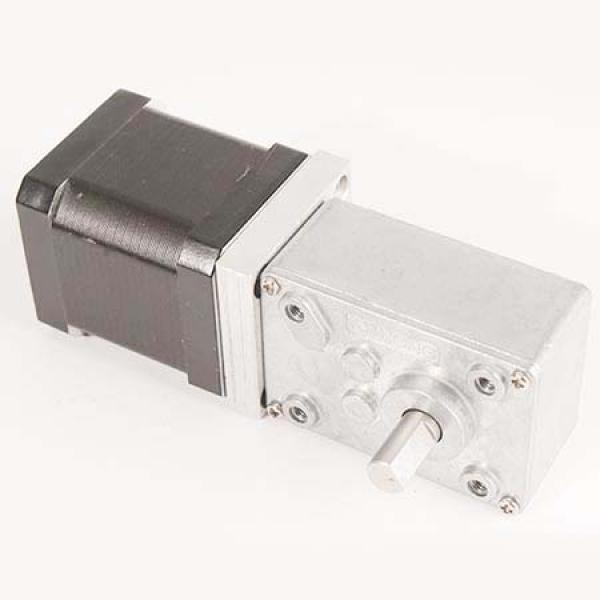

NEMA17 worm gear stepper motor
Worm gear stepper dimension
Dual shaft worm gear stepper

NEMA 23 stepper motor with turbine worm gear reducer
Ratio options: 15, 30, 50, 100, 176, 250 and 545

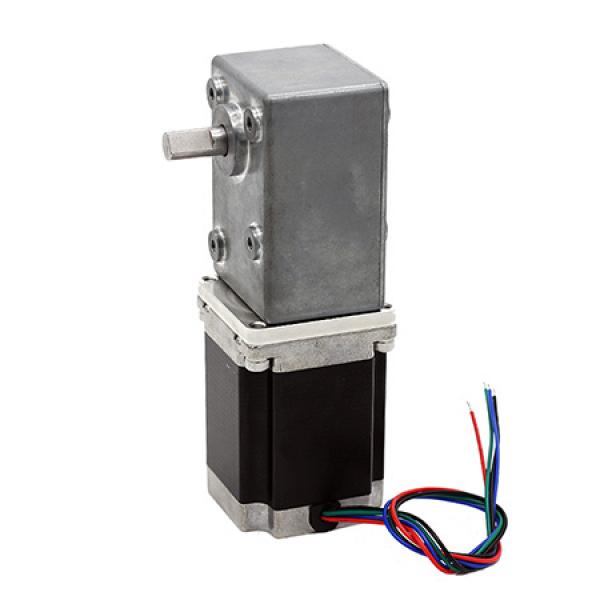

NEMA23 turbine worm gear stepper motor
