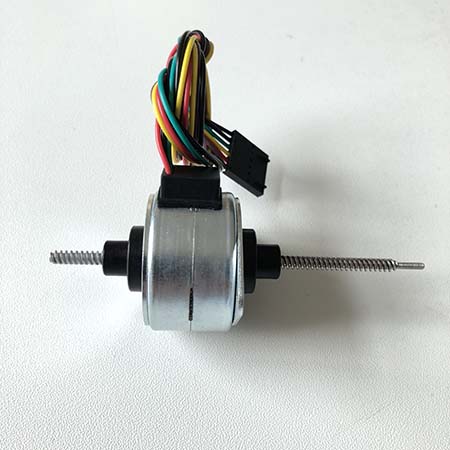

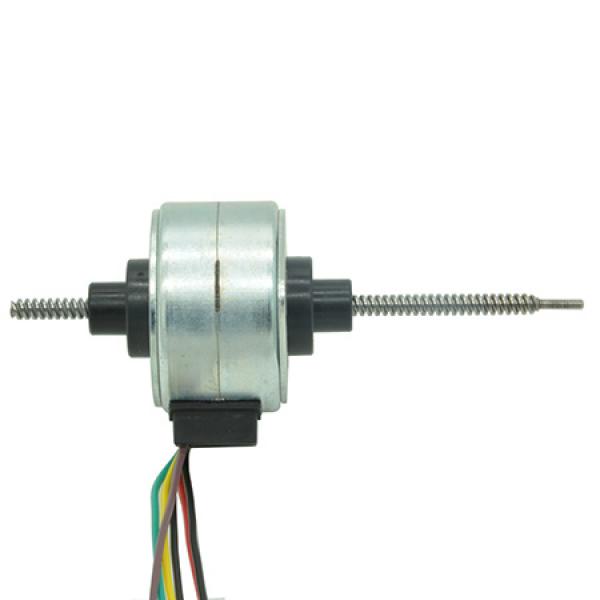

Customized non-captive PM stepper motor linear actuator
${{App.Price(price)}}
Specification{{specs.length > 1 ? 's' : ''}}:
{{spec.fdColor}}
{{spec.fdSize}}
Quantit{{quantity > 1 ? 'ies' : 'y'}}:
Non-captive Linear Stepper Motor
35BYZ pm stepper motor
Non-captive type linear actuator

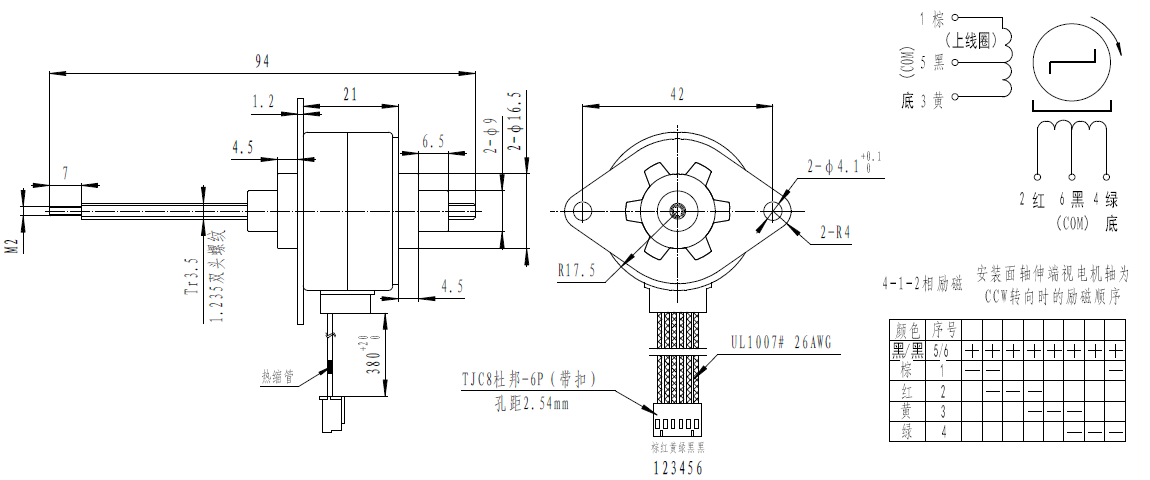

94mm total length Tr3.5 pitch 1.235mm P2 lead screw including a 7mm length M2 threaded tip
Rated operating voltage: 12V
Resistance per phase: 60+-10% Ohms
Current per phase <=0.3mA
Step angle: 3.75 degree
Step increment: 0.0257mm
Start PPS: 300
Working PPS: 450
Maximum travel: 60mm
Pull force: 200PPS 30N
